Summary of Contents for Planet IVS-H125

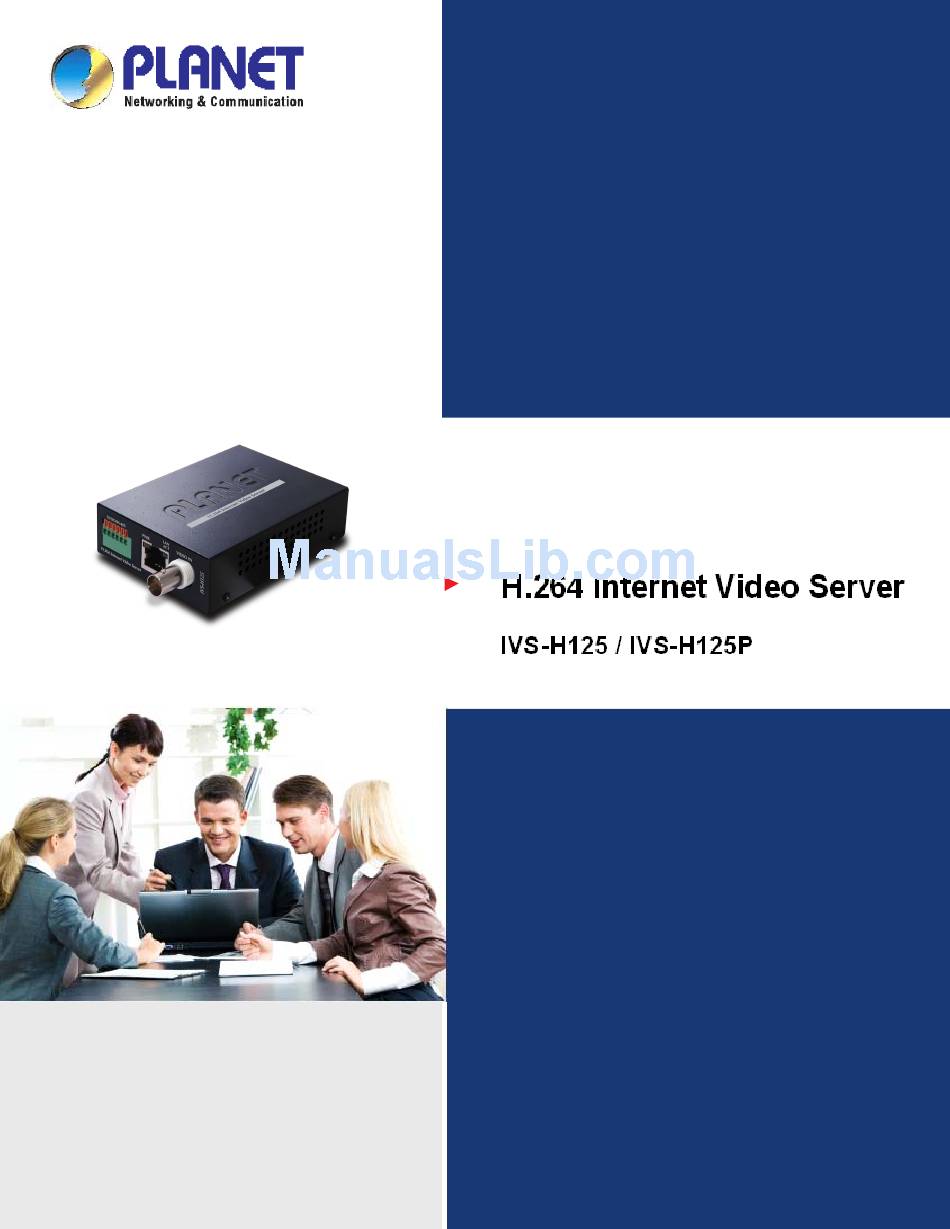

- Page 1 User’s Manual of IVS-H125 Series User’s Manual www.PLANET.com.tw...
- Page 2 User’s Manual of IVS-H125 Series Copyright Copyright © 2012 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.
- Page 3 User’s Manual of IVS-H125 Series Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture...
-
Page 4: Table Of Contents
2.2. Right-hand side Panel ..............13 2.3. Hardware Installation ................ 14 2.3.1 Stand-alone Installation ............14 2.3.2 Chassis Installation and Rack Mounting (IVS-H125 only) .. 15 2.3.3 Wall Mount Installation ............. 16 2.3.4 [Optional] - DIN-Rail Mount Installation ......... 16 Chapter 3. - Page 5 User’s Manual of IVS-H125 Series 6.2.1. Picture ..................47 6.2.2. PTZ Setting ................48 6.2.3. Preset Setting ................49 6.2.4. Privacy Mask................50 6.2.5. PTZ Setting ................51 6.2.6. Preset Setting ................53 6.2.7. Tour Setting ................53 6.3. System ....................54 6.3.1.
-
Page 6: Chapter 1. Product Introduction
CCTV cameras into an IP-based video surveillance system. The IVS-H125 series are the ideal choice for casinos, airports, traffic surveillance and prisons — anywhere an analog surveillance system is already installed and full... - Page 7 Advanced event management The IVS-H125 series also support a number of advanced features that give the video server increased flexibility and capabilities, including AV out for perform the two-way audio function,...
- Page 8 The IVS-H125 also supports PLANET Media Converter Chassis, it can install maximum 15 IVS-H125 can be installed in the media converter chassis at one time. The power of IVS-H125 was supplied by the media converter chassis and can be centrally managed.
-
Page 9: Product Features
3GPP for 3G mobile remote applications RS-485 interface for P/T scanner control Built-in micro SD/SDHC card slot for on-board storage Digital Input / Output for integration with sensors and alarms Cam Viewer 3 Central management software supported Optional installation with Media Converter Chassis (IVS-H125 only) -
Page 10: Product Specification
User’s Manual of IVS-H125 Series 1.4. Product Specification Model IVS-H125 IVS-H125P Image H.264 / MPEG-4 / M-JPEG Video Compression 4CIF(D1), CIF, QCIF Video Resolution 30/25 (NTSC/PAL) fps in all resolutions Frame Rate AE, AWB 3D Noise reduction Color, brightness, sharpness, contrast... - Page 11 User’s Manual of IVS-H125 Series IEEE 802.3af Class 3 5V DC, 2A Power Requirement Power Output: 12V DC, 0.4A 4W (Max.) Power Consumption Operating Temperature 0 ~ 40 Degree C 20 ~ 80% (non-condensing) Operating Humidity 215g Weight Dimension (W x D x H)
-
Page 12: Chapter 2. Hardware Interface
RS485 data + 485- RS485 data - NOTE: The RS-485 of IVS-H125 is master that can control external scanner or PTZ camera. Connects to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling. This Ethernet port built N-Way protocol can detect or negotiate the transmission speed of the network automatically. -
Page 13: Right-Hand Side Panel
1. The white jack is used for audio output, and yellow jack is used for video A/V Out output. 2. The IVS-H125 and IVS-H125P could determine the monitor use NTSC or PAL format signal, and output the fitting video format to monitor automatically. Please connect the video jack (yellow) with monitor properly before power on the Video Server. -
Page 14: Hardware Installation
User can insert a micro SD card into this slot for recording. 2.3. Hardware Installation 2.3.1 Stand-alone Installation To install an IVS-H125 and IVS-H125P stand-alone, on a desktop or shelf, simply complete the following steps: 1. Attach video source to IVS-H125 / IVS-H125P To use IVS-H125 and IVS-H125P, user must supply video source to IVS-H125 and IVS-H125P. -
Page 15: Chassis Installation And Rack Mounting (Ivs-H125 Only)
To install the Video Server in a 10-inch or 19-inch with standard rack, follow the instructions described below. 1. Place your IVS-H125 on a hard flat surface, with the front panel positioned towards your front side. 2. Carefully slide in the module until it is fully and firmly fitted into the slot of the chassis. -
Page 16: Wall Mount Installation
Figure 2-2 Mounting the Chassis in a Rack 2.3.3 Wall Mount Installation There are two wall holes on the rear of IVS-H125 and IVS-H125P that allows the video server can be easily installed for wall mounting. To install the IVS-H125 and IVS-H125P on the wall, please follows the instructions described below. - Page 17 User’s Manual of IVS-H125 Series 1. Screw the DIN-Rail on the IVS-H125 and IVS-H125P. 2. Lightly press the button of DIN-Rail into the track. 3. Check the DIN-Rail is tightly on the track.
-
Page 18: Chapter 3. Initial Utility Installation
User’s Manual of IVS-H125 Series Chapter 3. Initial Utility Installation This chapter shows how to quick set up your H.264 Internet Video Server. The Internet Video Server is with the default settings. However to help you find the networked Internet Video Server... - Page 19 User’s Manual of IVS-H125 Series 5. Please click “Install” to start the installation.
- Page 20 User’s Manual of IVS-H125 Series 6. Please click “Finish” to complete the installation and launch program immediately. 7. Insert the bundled CD into the CD-ROM drive to launch the auto-run program. Once completed, a welcome menu screen will appear. 8. Click the “IP Wizard II” hyperlink; you will see the dialog box as below.
- Page 21 User’s Manual of IVS-H125 Series 10. Please click “Next” to install with original settings, or you may click “Change…” button to modify the install folder then press “Next” to continue. 11. Please click “Install” to start the installation.
-
Page 22: Preparation
User’s Manual of IVS-H125 Series 12. Please click “Finish” to complete the installation and launch program immediately. 3.1. Preparation When you installed the camera on a LAN environment, you may execute PLANET IP Wizard II to discover camera’s IP address and set up related parameters in the camera. - Page 23 User’s Manual of IVS-H125 Series View If PLANET IP Wizard II finds network devices, View button will be available. Please select the device you want to view and click the View button. Then you could see the video from camera directly.
- Page 24 User’s Manual of IVS-H125 Series In case you want to change the IP related parameters of wired interface, please select the device you want to configure and click the LAN button. Relative settings will be carried out as below. In case, you do not want to change username and/or password, then just click “Submit” button to perform your setting accordingly.
-
Page 25: Using Upnp Of Windows Xp Or Vista Or Win7
User’s Manual of IVS-H125 Series accordingly. Click “<<” button will go back to previous page. The default user name and password are both “admin”. 3.2. Using UPnP of Windows XP or Vista or Win7 UPnP™ is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals. -
Page 26: Chapter 4. Installation Guide
1. The listed information is minimum system requirements only. Actual requirement will vary depending on the nature of your environment. 2. The IVS-H125 and IVS-H125P can be managed by PLANET IP Wizard II if you want to configure more detail information and settings of PLANET IP Wizard II software please refer to the CD-ROM folder “D:\Utility\IP WizardII\setup.exe”,... -
Page 27: Before You Begin
User’s Manual of IVS-H125 Series 4.2. Before You Begin The Internet Camera can be configured with your Web Browser. Before configure, please make sure your PC is under the same IP segment with Internet Camera. Connecting to Internet Camera Use the following procedure to establish a connection from your PC to the Internet Camera. - Page 28 User’s Manual of IVS-H125 Series After logged on, you should see the following messages at the top of Internet Explorer: Click on the message, and click Run Add-on When you see this message, click Run’ to install required ActiveX control After the ActiveX control was installed and run, the first image will be displayed.
-
Page 29: Chapter 5. Web Configuration For Live View
User’s Manual of IVS-H125 Series Chapter 5. Web Configuration for Live View 5.1. Live View Start-up screen will be as follow no matter an ordinary users or an administrator. Video Profile ActiveX Control Streaming Protocol Language Monitor Image Section Setting Menu... - Page 30 User’s Manual of IVS-H125 Series 2-Way Audio: The Video Server supports 2-way audio function. User can chose to enable or disable this function by toggling the icon below : Disable audio uploading function. : Enable audio uploading function. ActiveX Control: The plug-in ActiveX control supports a lot of functions by clicking the left mouse button.
-
Page 31: Activex Control
User’s Manual of IVS-H125 Series Recording List Files list inside the SD Card. Setup FTP/TCP/HTTP/Samba server for Event Server event Configure schedule while event Event Schedule triggered. Streaming Protocol: User can select proper streaming protocol according to networking environment. Language: The device could provide multiple languages to meet customer’s requirement. -
Page 32: Digital Zoom
User’s Manual of IVS-H125 Series 5.2.1. Digital Zoom Click Digital Zoom to active this function as above. User can drag or scale the box over the video to adjust zoom ratio and position. 5.2.2. Snapshot Click Snapshot to activate this function. Press Snapshot button to take a picture. The image file is saved as JPEG format into your local PC. -
Page 33: Record
User’s Manual of IVS-H125 Series 5.2.3. Record Click Record to activate this function. Press Record button to start recording. The video file is saved as ASF format into your local PC. While you want to stop it, press Stop to stop recording. -
Page 34: Volume
User’s Manual of IVS-H125 Series 5.2.4. Volume Click Volume to activate this function. These have two control bars for speaker and microphone volume. Scroll this control bar to adjust the audio attribute. Check the volume mute will mute the speaker output. -
Page 35: Chapter 6. Configuration & Operation
User’s Manual of IVS-H125 Series Chapter 6. Configuration & Operation 6.1. Network Configuration 6.1.1 Network This section provides the menu of connecting the device through Ethernet cable. MAC address Display the Ethernet MAC address of the device. Note that user cannot change it. - Page 36 User’s Manual of IVS-H125 Series separated by periods, for example: 192.168.0.200 Subnet Mask Subnets allow network traffic between hosts to be separated based on the network's configuration. In IP networking, traffic takes the form of packets. IP subnets advance network security and performance to some level by organizing hosts into logical groups.
-
Page 37: Ipv6 Function
User’s Manual of IVS-H125 Series 6.1.2. IPv6 function Internet Protocol version 6 (IPv6) is called the “IP Next Generation” (IPng), which is designed to fix the shortcomings of IPv4, such as data security and maximum number of user addresses. It is backward compatible and thus expected to slowly replace IPv4, with the two existing side by side for many years. -
Page 38: Ddns Server
User’s Manual of IVS-H125 Series HTTPS To enable or disable the HTTPS service here. Note that the HTTPS function of this device is not only encrypted the web content but also audio/video data. Port Choose the HTTPS port. The default value is 443. - Page 39 User’s Manual of IVS-H125 Series more information. DDNS: To enable or disable the DDNS service here. Server name: Choose the built-in DDNS server. DDNS Host: The domain name is applied of this device. User Name: The user name is used to log into DDNS.
-
Page 40: Pppoe
User’s Manual of IVS-H125 Series 6.1.5. PPPoE PPPoE: Stands for Point to Point Protocol over Ethernet A standard builds on Ethernet and Point-to-Point network protocol. It allows Internet camera connects to Internet with xDSL or cable connection; it can dial up your ISP and get a dynamic IP address. -
Page 41: Streaming
User’s Manual of IVS-H125 Series 6.1.6. Streaming RTSP is a streaming control protocol, and a starting point for negotiating transports such as RTP, multicast and Unicast, and for negotiating codecs. RTSP can be considered a "remote control" for controlling the media stream delivered by a media server. RTSP servers typically use RTP as the protocol for the actual transport of audio/video data. -
Page 42: Upnp
User’s Manual of IVS-H125 Series currently) procedure: 2. Use the following URL to access: rtsp://host/mpeg4/media.3gp Where host is the host name or IP address of the camera. Please contact your dealer to get the approved list of compatible 3G Compatible phone. -
Page 43: Bonjour
User’s Manual of IVS-H125 Series Port Range: The port range will open in NAT router. External IP address: Show the IP address and port for WAN access through Internet. If NAT traversal is configured successfully, user can use this IP address and port to access this device. -
Page 44: Ip Filter
User’s Manual of IVS-H125 Series ONVIF To enable or disable the ONVIF interface here. Version Currently, the V1.0 or V1.01/1.02/V2.0/V2.1.1 is available. 6.1.10. IP Filter You can enter different user’s IP address which are allowing enter or denying by the device. -
Page 45: Ip Notification
User’s Manual of IVS-H125 Series 6.1.11. IP Notification In case the IP address is changed, system is able to send out an email to alert someone if the function is enabled. If enable this function, then the “Send to“ and “Subject” field SMTP Notification (e-mail): need to be filled. - Page 46 User’s Manual of IVS-H125 Series URL: Type the server name or the IP address of the HTTP server HTTP Login name: Type the user name for the HTTP server. HTTP Login Password: Type the password for the HTTP server. Proxy Address: Type the server name or the IP address of the HTTP Proxy.
-
Page 47: Adjust Camera Configuration
User’s Manual of IVS-H125 Series 6.2. Adjust Camera Configuration Use this menu to set the function of the camera of Video Server 6.2.1. Picture Color Level Large value will be colorful. Brightness: Large value will brighten camera. Contrast: Large value will contrast camera heavily. -
Page 48: Ptz Setting
User’s Manual of IVS-H125 Series 6.2.2. PTZ Setting This page allow user to modify the RS485 interface according to the P/T scanner. Camera Protocol: This device can connect to a PTZ camera or speed dome camera and controls them thru RS485 interface. -
Page 49: Preset Setting
User’s Manual of IVS-H125 Series 6.2.3. Preset Setting This page provides the edit tool to modify or delete the “Preset Setting” item by item. -
Page 50: Privacy Mask
User’s Manual of IVS-H125 Series 6.2.4. Privacy Mask Use this page to specify privacy mask window 1 to window 8 and set the name and gray level for selected window. Add and Delete To add or delete the privacy mask windows, user can specify up to 7 windows to mask the video captured by this device. -
Page 51: Ptz Setting
User’s Manual of IVS-H125 Series 6.2.5. PTZ Setting This page allow user to modify the RS-485 interface according to the P/T scanner. This device can connect to a PTZ camera or speed dome camera and Camera Protocol controls them thru RS-485 interface. - Page 52 User’s Manual of IVS-H125 Series Control commands for Back function. OSD Back Control commands for Up function. OSD Up Control commands for Down function. OSD Down Control commands for Left function. OSD Left Control commands for Right function. OSD Right...
-
Page 53: Preset Setting
User’s Manual of IVS-H125 Series 6.2.6. Preset Setting This page provides the edit tool to modify or delete the “Preset Setting” item by item. 6.2.7. Tour Setting Up to 64 positions can be preset, and the camera can be programming to move to the preset... -
Page 54: System
User’s Manual of IVS-H125 Series The group name of the sequence of camera tour. The maximum number of Tour Name camera tour is 16. Running Enable or disable this camera tour. Set the sequence of the tour. Maximum 16 points can be assigned. The Preset selected preset position is added in the Sequence list from 1 to 16. -
Page 55: Date & Time
User’s Manual of IVS-H125 Series Device title: You can enter the name of this unit here. It’s very useful to identify the specific device from multiple units. Software version: This information shows the software version in the device. Network LED: Switch the LED light of this Internet camera on or off, that Network LEDs will stop working, in case you don’t want other people know the... - Page 56 User’s Manual of IVS-H125 Series Server Date Displays the date and time of the device & Time: PC Time: Displays the date and time of the connected PC Adjust: Synchronize Click this option to enable time synchronization with PC: with PC time...
-
Page 57: Maintenance
User’s Manual of IVS-H125 Series 6.3.3. Maintenance Default Settings Recall the device hard factory default settings. Note that click (Include the network this button will reset all device’s parameters to the factory setting): settings (including the IP address). Default Settings... - Page 58 User’s Manual of IVS-H125 Series 3. Disable Motion Detection function. 4. Select “Firmware name” 5. Select the Firmware binary file. Note: That it must make sure that the Firmware only applies to this device, once update, it will be burned into FLASH ROM of system.
-
Page 59: Video
User’s Manual of IVS-H125 Series 6.4. Video This device provides more video profiles as below to support different request to each client simultaneously. Each user can choose his preferred video profile as his request independently. 6.4.1. Common Text Overlay Setting: There are some important information can be embedded into image, including date, time, and/or text. -
Page 60: Video Profile
User’s Manual of IVS-H125 Series 6.4.2. Video Profile There are H.264, MEPG4 and MJEPG encoder modes in this profile. Name: To assign a name to the selected profile. Video Type: There are three video types: H.264, MPEG4 and MJPEG. Resolution: There are three resolutions in each profile: 4CIF, CIF and QCIF. - Page 61 User’s Manual of IVS-H125 Series versus video quality under the limited bandwidth. GOP Control: Defines the Intra/Inter-frame (I/P) ratio of this profile. For example, set the GOP to 30, then the video stream will have one Intra-frame every 30 frames.
-
Page 62: Roi
User’s Manual of IVS-H125 Series 6.4.3. ROI ROI means Region of Interest. Use this page to specify location of ROI windows. Only the maximum resolution profiles can be defined as ROI. In this model, the default ROI windows are profile 1 and 2. -
Page 63: User Privilege Access Configuration
User’s Manual of IVS-H125 Series Audio To enable or disable audio function. Audio type To select G711 or G726 for audio coding. Audio Mode To select Simplex or Full duplex (2-way audio) mode. Input Gain To adjust gain of input audio. - Page 64 User’s Manual of IVS-H125 Series Viewer Login: Select “Anonymous” to allow any one viewing the video once connected. Otherwise, only users in database can view the video after login. Administrator can access every function in this device. Access Right: However, Viewers only can view the video and access limited function.
-
Page 65: E-Mail Configuration
User’s Manual of IVS-H125 Series 6.7. E-Mail Configuration You may setup SMTP mail parameters for further operation of Event Schedule. That’s, if users want to send the alarm message out, it will need to configure parameters here and also add at least one event schedule to enable event triggering. -
Page 66: Object Detection
User’s Manual of IVS-H125 Series E-mail Subject Type the subject/title of the e-mail. 6.8. Object Detection Use this menu to specify motion detection window 1 to window 10 and set the conditions for detection while observing a captured image. Add and Del: To add or delete the motion windows. -
Page 67: Audio Detection
User’s Manual of IVS-H125 Series even small objects trigger motion detection too. Generally speaking, the smaller size will be easier to trigger event. Sensitivity Defines the sensitivity value of motion detection. The higher value will be more sensitivity. 6.9. Audio Detection Audio detection alarm can be used as a complement to motion detection. -
Page 68: Storage Configuration
User’s Manual of IVS-H125 Series 6.10. Storage Configuration This page shows the status of attached SD card and Samba server. You may setup related parameters to manage the attached SD card or Samba server also. 6.10.1. SD Card Enable automatic disk cleanup Delete old recorded files while the conditions are reached as below. -
Page 69: Samba Server
User’s Manual of IVS-H125 Series 6.10.2. SAMBA Server This page shows the status of SAMBA server. You may setup related parameters to manage the remote SAMBA server. Host Type the SAMBA server domain name or the IP address of the SMTP server. -
Page 70: Continuous Recording
User’s Manual of IVS-H125 Series 6.11. Continuous Recording The camera can continuously record video stream into files and save them to attached SD card or remote SAMBA server. Continuous Recording Enable or disable this function. Record File Type Choose a video profile to record. -
Page 71: Continuous Recording List
User’s Manual of IVS-H125 Series 6.12.2. Continuous Recording List This page only shows the continuous recording files which stored in SD card or remote SAMBA server. User may play or delete the selected file. -
Page 72: Event Server Configuration
User’s Manual of IVS-H125 Series 6.13. Event Server Configuration 6.13.1 FTP Server You may setup FTP parameters for further operation of Event Schedule. That’s, if users want to send the alarm message to an FTP server, it will need to configure parameters here and also add at least one event schedule to enable event triggering as SMTP. -
Page 73: Ftp Server
User’s Manual of IVS-H125 Series 6.13.2. FTP Server In addition to send video file to FTP server, the device also can send event message to specified TCP server. Name User can specify multiple TCP servers as wish. Therefore, user needs to specify a name for each TCP server setting. -
Page 74: Http Server
User’s Manual of IVS-H125 Series 6.13.3. HTTP Server The device also can send event message to specified HTTP server. Name User can specify multiple HTTP servers as wish. Therefore, user needs to specify a name for each HTTP server setting. -
Page 75: Samba Server
User’s Manual of IVS-H125 Series 6.13.4. SAMBA Server The device also can send video stream to specified SAMBA server. Most of the time, the SAMBA server will be another PC or NAS server. Name User can specify multiple HTTP servers as wish. Therefore, user needs to specify a name for each HTTP server setting. -
Page 76: Event Schedule Configuration
User’s Manual of IVS-H125 Series 6.14. Event Schedule Configuration This menu is used to specify the schedule of Event or Schedule Trigger and activate the some actions provided by this device. Where the Schedule Trigger will be activated by user-define interval without event happened. - Page 77 User’s Manual of IVS-H125 Series Example1. Send file to FTP server by motion triggered always: Step 1 Select event trigger Step 2 Enable time: start from 00:00 to 24:00 every day Step 3 Trigger by: Motion Area (Added in Object Detection page)
- Page 78 User’s Manual of IVS-H125 Series Example2. Send file to E-Mail server by motion triggered from Friday 18:00 to Saturday 06:00 Step 1 Select event trigger. Step 2 Enable time: start from Friday 18:00 and keep work in 12 hours, so it will stop on Saturday 06:00.
- Page 79 User’s Manual of IVS-H125 Series Example3. Enable Voice Alert every 10-minute during 18:00 to 24:00 from Monday to Friday. Step 1 Type: Select schedule trigger and interval is 10-minute. Step 2 Enable Time: Select Monday to Friday, and set start time from 18:00 and keep work in 6 hours.
-
Page 80: Record Configuration
User’s Manual of IVS-H125 Series 6.15. Record Configuration User can choose the type of record file for event or schedule application. Record File Type Choose AVI or JPEG file format for record file. Record File Prefix Define the prefix of recorded filename. -
Page 81: Port Status
User’s Manual of IVS-H125 Series 6.16. Port Status User can check the status of digital input and output (DIDO). Input Status Show either inactive or active. Output Status Show either inactive or active. -
Page 82: Chapter 7. Planet Ddns Application
User’s Manual of IVS-H125 Series Chapter 7. PLANET DDNS Application 7.1. Configure PLANET DDNS steps: Step 1 Enable DDNS option through accessing web page of ICA-2200. Step 2 Select on DDNS server provide, and register an account if you do not use yet. -
Page 83: Chapter 8. Alarm I/O Connector
User’s Manual of IVS-H125 Series Chapter 8. Alarm I/O Connector Some features of the Camera can be activated by an external sensor that senses physical changes in the area device is monitoring. These changes can include intrusion detection or certain physical change in the monitored area. - Page 84 User’s Manual of IVS-H125 Series Explanation of External I/O Circuit Diagram: CAUTION! • THE LOW VOLTAGE/CURRENT CIRCUITS AND HIGH VOLTAGE/ CURRENT CIRCUITS ARE IN THE NETWORK CAMERA CIRCUIT. THE QUALIFIED ELECTRICIAN SHOULD DO THE WIRING NOT BY YOURSELF. INCORRECT WIRING COULD DAMAGE NWTWORK CAMERA.
-
Page 85: Chapter 9. Ping Ip Address
User’s Manual of IVS-H125 Series Chapter 9. PING IP Address The PING (stands for Packet Internet Groper) command is used to detect whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It’s also a very useful tool to confirm the device installed or if the IP address conflicts with any other devices over the network. -
Page 86: Chapter 10. Bandwidth Estimation
User’s Manual of IVS-H125 Series Chapter 10. Bandwidth Estimation The frame rate of video transmitted from the device depends on connection bandwidth between client and server, video resolution, codec type, and quality setting of server. Here is a guideline to help you roughly estimate the bandwidth requirements for your device. -
Page 87: Chapter 11. Configure Port Forwarding Manually
User’s Manual of IVS-H125 Series Chapter 11. Configure Port Forwarding Manually The device can be used with a router. If the device wants to be accessed from the WAN, its IP address needs to be setup as fixed IP address, also the port forwarding or Virtual Server function of router needs to be setup. - Page 88 User’s Manual of IVS-H125 Series Your WAN IP Address will be listed here. 3. Open/set Virtual Server Ports to enable remote image viewing The firewall security features built into the router and most routers prevent users from accessing the video from the device over the Internet. The router connects to the Internet over a series of numbered ports.
- Page 89 User’s Manual of IVS-H125 Series how to open ports. Enter valid ports in the Virtual Server section of your router. Please make sure to check the box on this line to enable settings. Then the device can be access from WAN by the router’s WAN IP Address.
-
Page 90: Chapter 12. Power Line Frequency
User’s Manual of IVS-H125 Series Chapter 12. Power Line Frequency COUNTRY VOLTAGE FREQUENCY COMMENTS *Neutral and line wires are reversed from that used in Australia Argentina 220V 50 Hz and elsewhere. *Outlets typically controlled by adjacent switch. Australia 230V* 50 Hz Though nominal voltage has been officially changed to 230V, 240V is within tolerances and commonly found. - Page 91 User’s Manual of IVS-H125 Series United States of America 120V 60 Hz...
-
Page 92: Chapter 13. 3Gpp
User’s Manual of IVS-H125 Series Chapter 13. 3GPP To use the 3GPP function, in addition to previous section, you might need more information or configuration to make this function work. Note: that to use the 3GPP function, it strongly recommends to install the Networked Device with a public and fixed IP address without any firewall protection. - Page 93 User’s Manual of IVS-H125 Series Chapter 14. Troubleshooting & Frequently Asked Questions Question Answer or Resolution Features The device utilizes H.264, MPEG4 and JPEG triple compression to The video and audio codec providing high quality images. Where H.264 and MPEG4 are is adopted in the device.
-
Page 94: Chapter 14. Troubleshooting & Frequently Asked Questions
User’s Manual of IVS-H125 Series • Antivirus software on the PC might interfere with the setup program. Disable the firewall of the antivirus software during setting up this device. • Check the firewall setting of your PC or Notebook. Make sure that your Internet Explorer is version 8.0 or later. If you... - Page 95 User’s Manual of IVS-H125 Series correct port number of Network Camera. • When you use DDNS, you need to set Default Gateway and DNS server address. • If it’s not working after above procedure, reset Network Camera to default setting and installed it again.
- Page 96 User’s Manual of IVS-H125 Series • Audio will consume 32 kbps. Disable audio to improve video. Your enabled. Internet connection may not have enough bandwidth to support streaming audio from the device. Image Transfer on e-mail • Default Gateway and DNS server address should be set up or FTP does not work.
