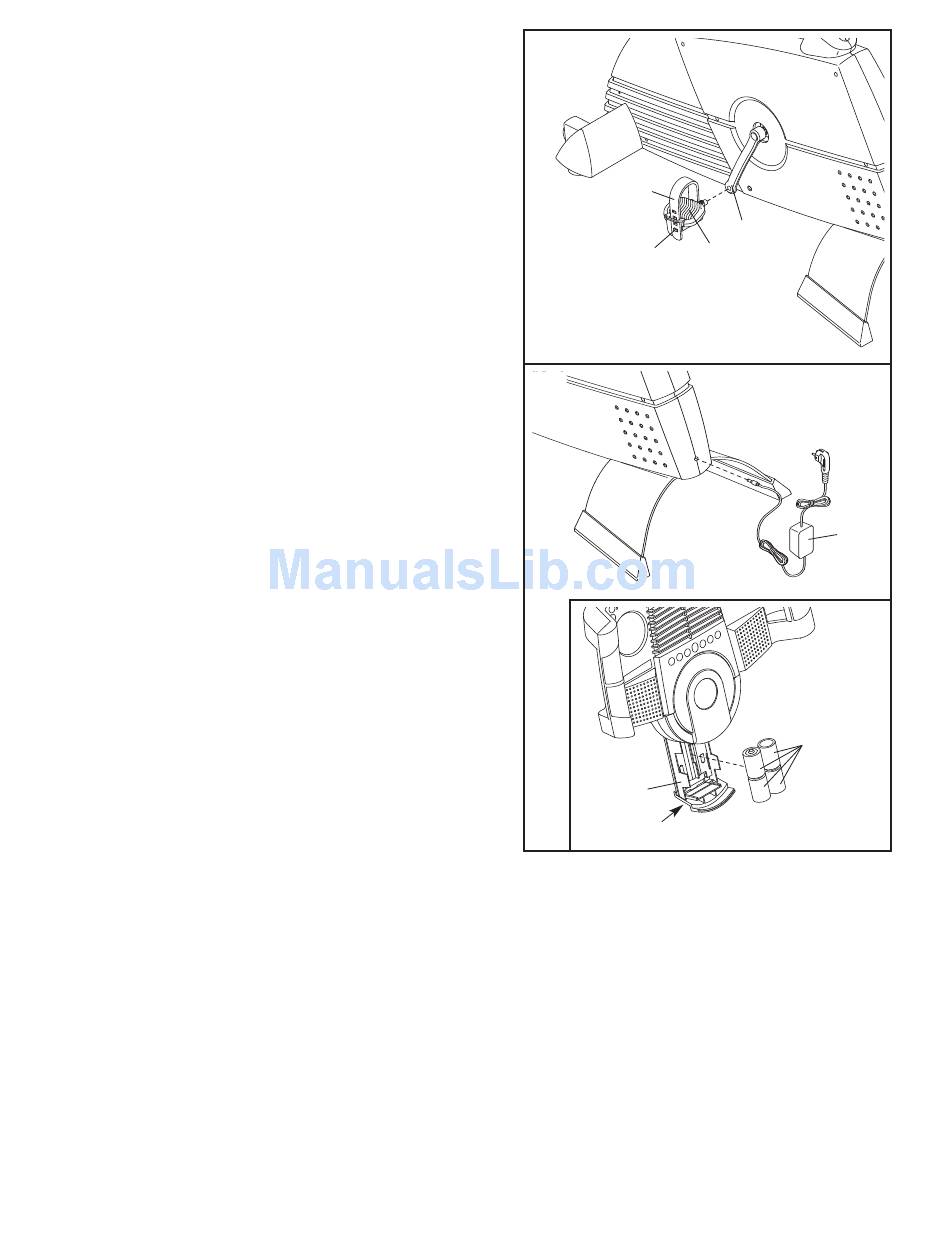

8. Identify the Left Pedal (22), which is marked with an
"L." Using an adjustable wrench, firmly tighten the
Left Pedal counterclockwise into the Left Crank Arm
(24). Tighten the Right Pedal (not shown) clockwise
into the Right Crank Arm. Important: Tighten both
Pedals as firmly as possible. After using the exer-
cise cycle for one week, retighten the Pedals. For
best performance, the Pedals must be kept tight-
ened.
Adjust the Left Pedal Strap (25) to the desired posi-
tion, and press the end of the Pedal Strap onto the tab
on the Left Pedal (22). Adjust the Right Pedal Strap
(not shown) in the same way.
9. Plug one end of the Power Cord (52) into the jack at
the rear of the exercise cycle. Plug the other end of
the Power Cord into an appropriate outlet that is prop-
erly installed in accordance with all local codes and
ordinances. Note: In the UK, use the included adapter
(not shown) with the Power Cord. In Italy, a separate
adapter (not included) is required.
Note: The console can be operated with batteries
instead of the Power Cord (52) if desired. To install
batteries, follow the instructions below.
See the inset drawing. Press the indicated tab on the
battery drawer and pull the battery drawer down.
Press four "D" batteries into the battery clips; make
sure that the batteries are oriented as shown by
the markings inside of the battery clips. Then,
close the battery drawer. Note: Alkaline batteries are
recommended.
10. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
8
25
Tab
9
Battery
Drawer
Tab
8
24
22
52
Batteries
