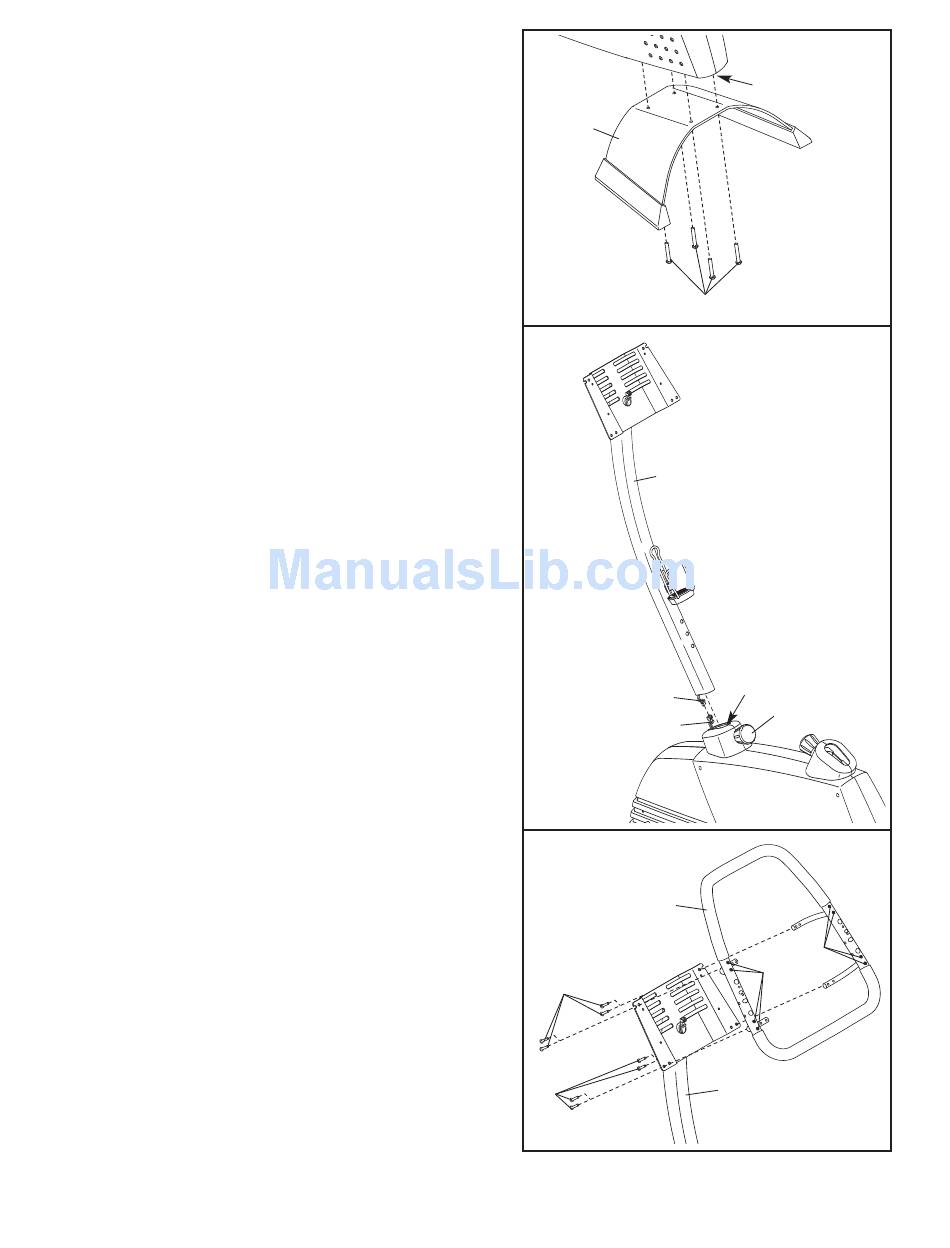

2. Whilst another person lifts the rear of the Frame (1),
attach the Rear Stabiliser (16) to the Frame with four
M8 x 70mm Button Screws (68).
3. Whilst another person holds the Upright (2) in the posi-
tion shown, connect the Upper Wire Harness (42) to
the Lower Wire Harness (43). Gently pull the upper
end of the Upper Wire Harness to remove any slack
from the Wire Harnesses.
Turn the indicated Adjustment Knob (20) counterclock-
wise two or three turns to loosen it. Next, pull the Knob,
insert the Upright (2) into the Frame (1), and then
release the Knob. Be careful to avoid pinching the
Wire Harnesses (42, 43). Move the Upright up and
down slightly until the pin on the Knob snaps into
one of the holes in the Upright. Then, turn the Knob
clockwise until it is tight.
4. Loosen the eight indicated screws (A) in the
Handlebar (3).
Attach the Handlebar (3) to the Upright (2) with eight
M6 x 16mm Tapered Button Screws (59). Do not
tighten the Tapered Button Screws yet.
Retighten the eight screws (A) in the Handlebar (3).
2
16
3
4
59
59
6
1
68
Make sure the
wire harnesses
do not get
pinched and
damaged during
2
this step.
1
42
20
43
3
A
A
2
