Pro-Form 800 Tr Intrac Erg Bike User Manual page 7

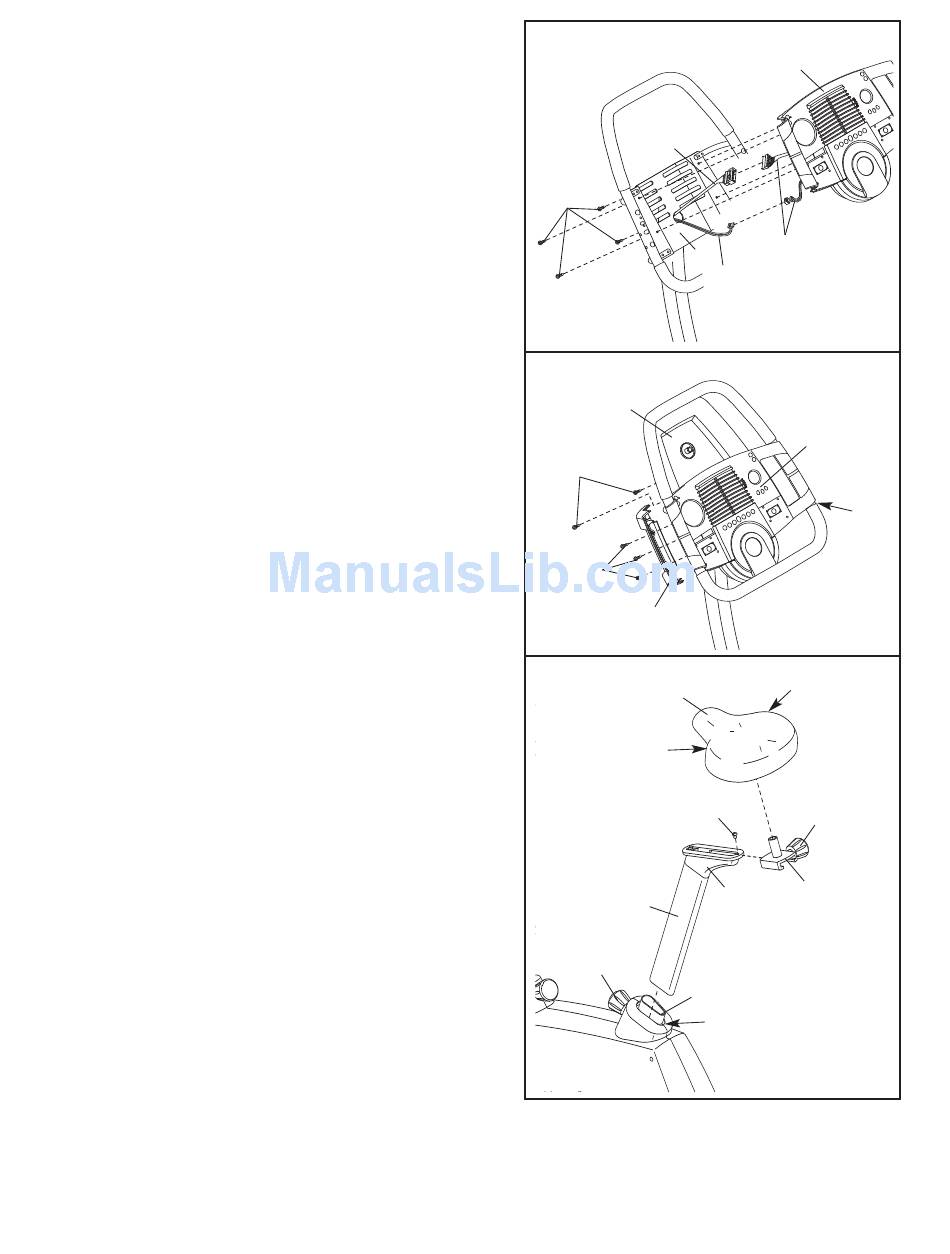

5. See step 6. Remove the three indicated M4 x 12mm
Screws (41) and the Left and Right Handlebar Covers
(6,5) from the Console (4).
Whilst another person holds the Console (4) in the
position shown, connect the wire harnesses on the
Console to the Upper Wire Harness (42) and the
Pulse Wire Harness (81). Insert the excess wire har-
ness down into the Upright (2).
Attach the Console (4) to the Upright (2) with four M4
x 12mm Screws (41). Be careful to avoid pinching
the wire harnesses.
6. Attach the Left Handlebar Cover (6) to the Console (4)
with three M4 x 16mm Screws (57). Attach the Right
Handlebar Cover (5) in the same way.
Attach the CD Holder (80) to the Console (4) with two
M4 x 12mm Screws (41) as shown.
See assembly step 4. Tighten the eight M6 x 16mm
Tapered Button Screws (59).
7. Turn the indicated Adjustment Knob (20) counterclock-
wise two or three turns to loosen it. Next, pull the
Knob, remove the packing tube from the Frame (1),
and insert the Seat Post (8) into the Frame. Release
the Knob, and move the Seat Post up and down
slightly until the pin on the Knob snaps into one of
the holes in the Seat Post. Then, turn the Knob
clockwise until it is tight.
Slide the Seat Carriage (11) onto the Seat Bracket (7),
and then tighten the Seat Knob (10) into the right side
of the Seat Carriage. Tighten the M6 x 8mm Zinc
Button Screw (71) into the Seat Bracket behind the
Seat Carriage.
Loosen the two nuts (not shown) on the clamp beneath
the Seat (9). Slide the clamp fully onto the Seat
Carriage (11). Tilt the Seat to the desired angle, and
then retighten the nuts on the clamp.
5
41
6
80
41
57
6
7
Nut
8
20
7
4
42
Wire
2
Harnesses
81
4
Nut
9
71
10
11
7
Packing Tube
1
5
