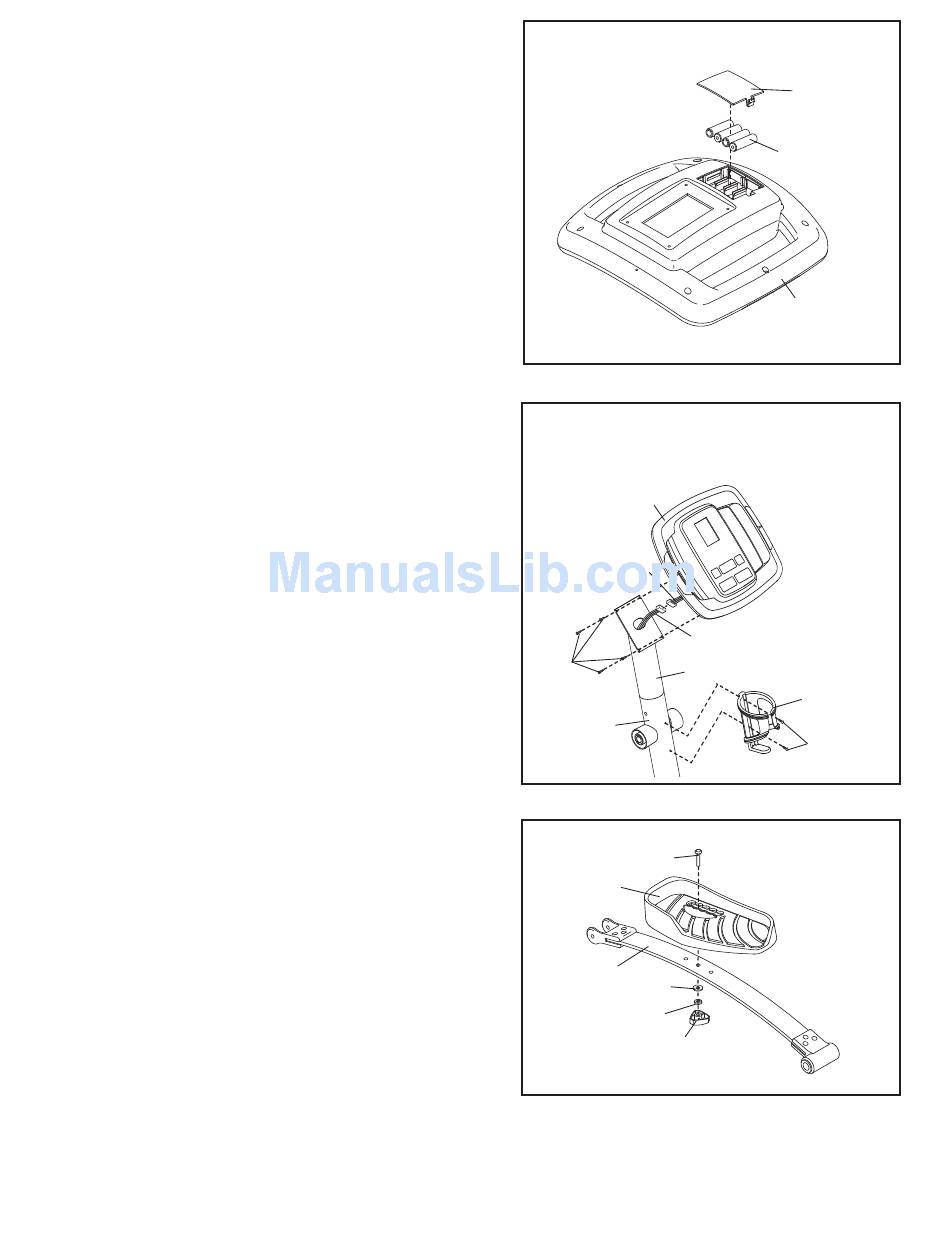

4. The Console (23) requires four "AA" batteries; alkaline
batteries are recommended. Remove the battery cover
and insert four batteries into the battery compartment;
make sure that the batteries are oriented as shown
by the diagrams inside the battery compartment.
Then, reattach the battery cover.
5. While another person holds the Console (23) near the
Upright Extension (73), connect the console wire har-
ness to the Extension Wire Harness (44). Insert the
excess wire harness into the Upright Extension.
Attach the Console (23) to the Upright Extension (73)
with four M4 x 16mm Screws (52). Be careful to
avoid pinching the wire harnesses.
Attach the Water Bottle Holder (65) to the Upright (2)
with two M4 x 19mm Screws (26).
6. Identify the left Pedal Spring (11), which is marked
with a "Left" sticker. Attach the Left Pedal (13) to the
left Pedal Spring with an M10 x 30mm Carriage Bolt
(80), an M10 Washer (78), an M10 Split Washer (59),
and a Pedal Knob (81) as shown. Note: The Left
Pedal can be attached in several positions using the
five positions in the Left Pedal and the three holes in
the Pedal Spring.
Attach the Right Pedal (not shown) in the same
way.
Make sure that both Pedals are in the same hole
and in the same pedal position.
