ProForm 650 Elliptical User Manual page 9

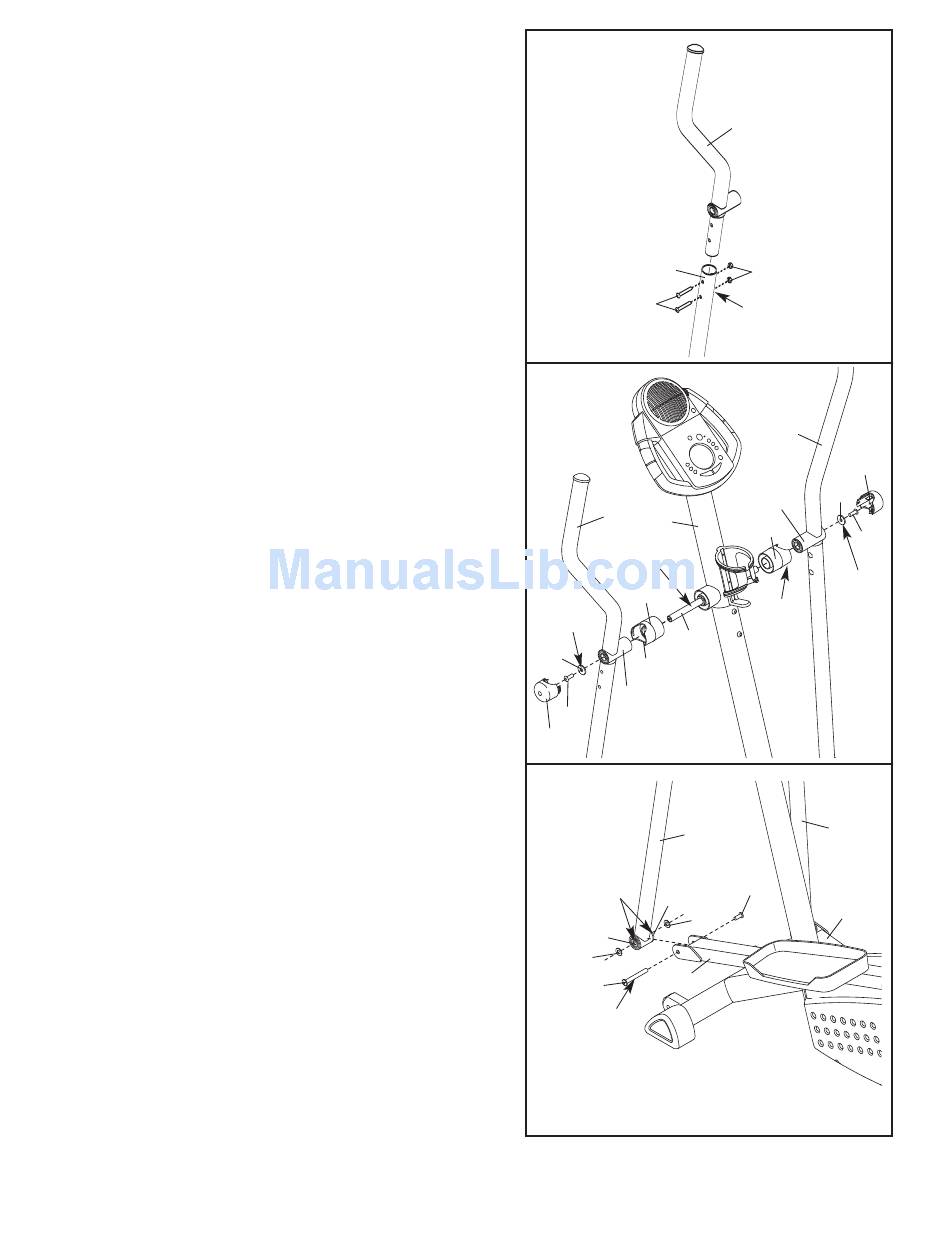

10. Identify the Left Handlebar (9), which is marked with a
sticker. Insert the Left Handlebar into one of the
Handlebar Legs (79); make sure that the Handlebar
Leg is turned so the hexagonal holes are on the
indicated side. Attach the Left Handlebar with two M8
x 45mm Button Bolts (50) and two M8 Nylon Locknuts
(46). Make sure that the Nylon Locknuts are inside
of the hexagonal holes. Do not tighten the Button
Bolts yet.
Assemble the Right Handlebar (not shown) and the other
Handlebar Leg (not shown) in the same way.
11. Apply a generous amount of the included grease to the
Pivot Axle (81) and to the two M8 Washers (53). Next,
insert the Pivot Axle into the Upright (2) and centre it.
Reapply grease to both ends of the Pivot Axle.
Slide a Handlebar Spacer (25) onto the short tube on the
Left Handlebar (9), and rotate the Handlebar Spacer so
the small arrow is pointing toward the floor. Next, slide the
Left Handlebar onto the left end of the Pivot Axle (81).
Finger tighten an M8 x 25mm Patch Screw (22) with an
M8 Washer (53) into the end of the Pivot Axle. Then,
press the small tabs on a Handlebar Cap (23) into the
Handlebar Spacer.
Assemble the Right Handlebar (10) in the same way.
Then, tighten both M8 x 25mm Patch Screws (22) at the
same time.
12. Apply a small amount of grease to the barrel of an M10
x 59mm Bolt Set (27) and to the surfaces of the Leg
Bushings (28) in the left Handlebar Leg (79). Next, hold
an M10 Washer (98) on each side of the Handlebar
Leg, and then insert the lower end of the Handlebar Leg
and the Washers into the bracket on the Left Pedal Arm
(14). Insert the barrel of the Bolt Set through the Left
Pedal Arm, the Washers, and the Handlebar Leg. Then,
tighten the screw of the Bolt Set into the barrel. Do not
overtighten the Bolt Set; the left Handlebar Leg
must be able to pivot freely.
Attach the right Handlebar Leg (79) to the Right Pedal
Arm (75) in the same way.
See step 3. Tighten the two M10 x 83mm Button
Screws (63). See step 4. Tighten the two M8 x 70mm
Button Bolts (67). See step 10. Tighten the M8 x
45mm Button Bolts (50) in the Handlebar Legs (79).
13. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet, place a mat under the elliptical exerciser.
10
50
11
9
Grease
25
Grease
53
Arrow
Tube
22
23
12
Grease
28
98
27
Grease
9
9
79
46
Hexagonal
Holes
10
53
Tube
2
25
Grease
Arrow
81
79
79
27
28
98
14
23
22
75
