ProForm 650 Elliptical User Manual page 18

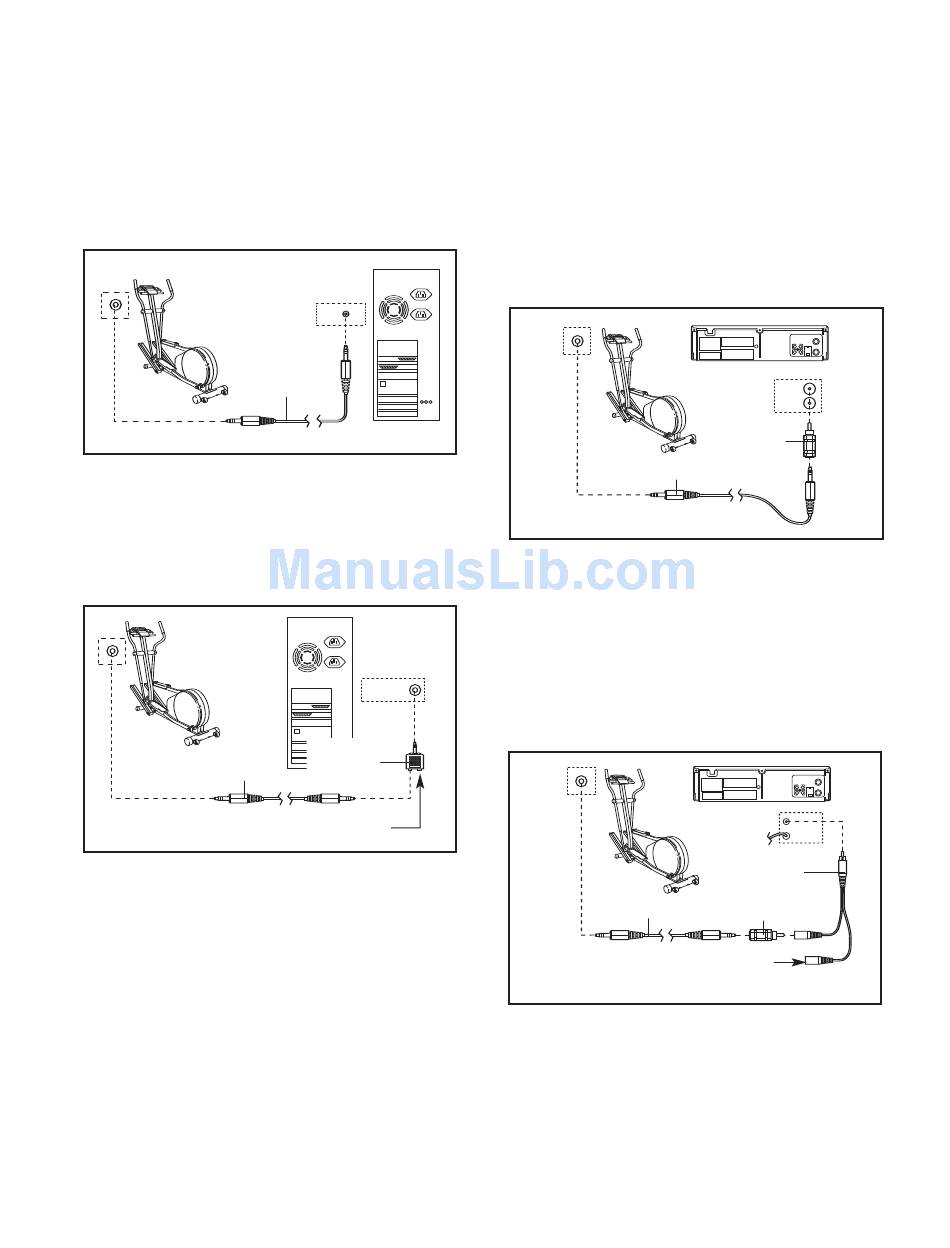

HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 3.5mm LINE OUT
jack, see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the LINE OUT jack on your com-
puter.
A
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
A
audio cable into the splitter. Plug the splitter into the
PHONES jack on your computer. Plug your head-
phones or speakers into the other side of the splitter.
B
Audio
Cable
Headphones/Speakers
LINE OUT
LINE OUT
Audio
Cable
A
PHONES
PHONES
Splitter
B
B
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 17.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adaptor. Plug the adaptor into
the AUDIO OUT jack on your VCR.
A
Audio Cable
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adaptor. Plug the adaptor into
an RCA Y-adaptor (available at electronics stores).
Next, remove the wire that is currently plugged into
the AUDIO OUT jack on your VCR and plug the
wire into the unused side of the Y-adaptor. Plug the
Y-adaptor into the AUDIO OUT jack on your VCR.
B
Audio Cable
Wire removed from
AUDIO OUT jack
18
