ProForm 650 Elliptical User Manual page 7

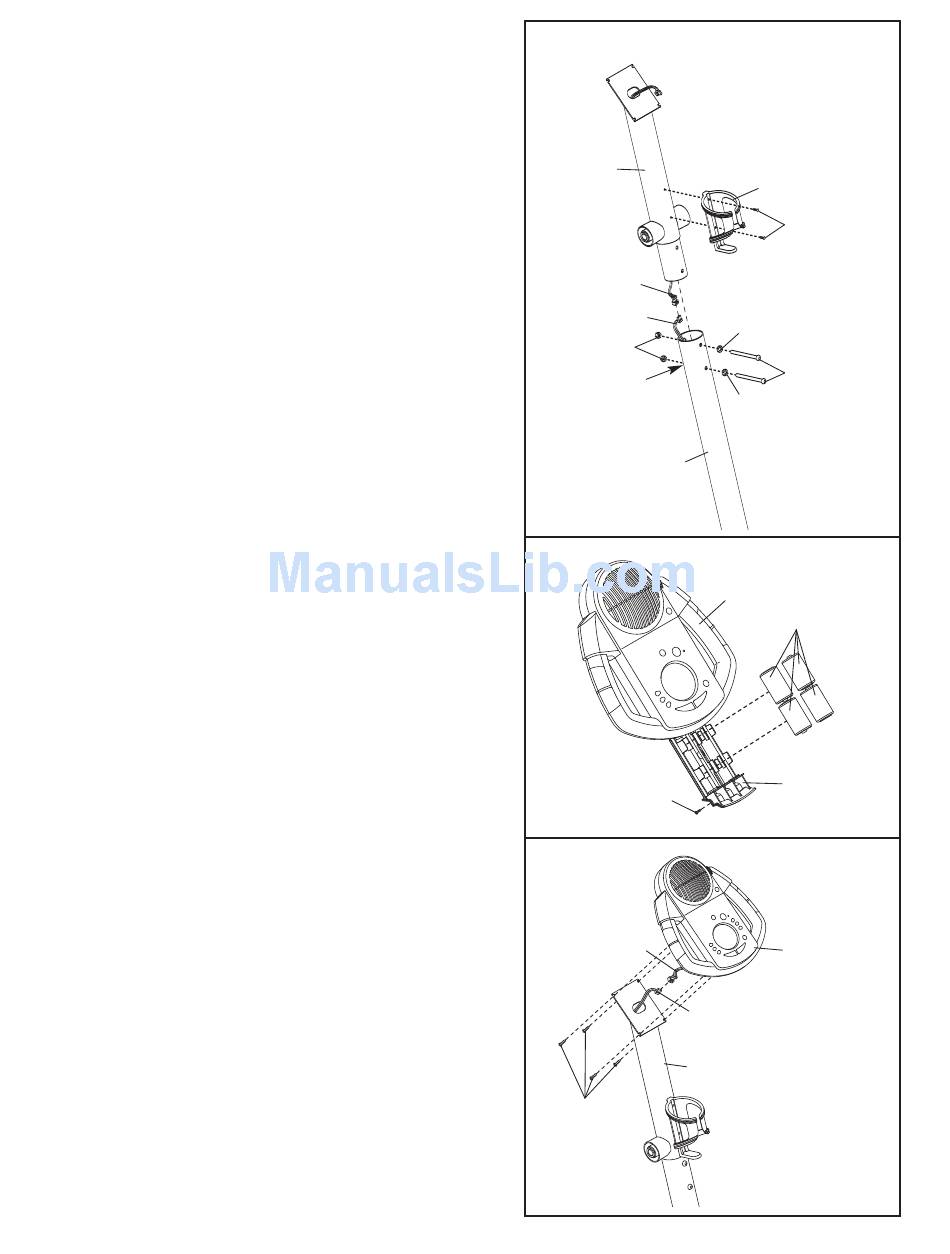

4. While another person holds the Upright (2) in the posi-
tion shown, connect the Upper Wire Harness (86) to
the Extension Wire Harness (95).
Next, insert the Upright (2) into the Mast (15); make
sure that the Upright is oriented as shown. Attach
the Upright with two M8 x 70mm Button Bolts (67), two
M8 Split Washers (83), and two M8 Nylon Locknuts
(46). Make sure that the Wire Harnesses (86, 95) do
not get pinched and damaged during this step. Do
not tighten the Button Bolts yet.
Attach the Water Bottle Holder (72) to the Upright (2)
with two M4 x 22mm Screws (76).
5. The Console (5) requires four 1.5V "D" batteries; alka-
line batteries are recommended. Loosen the indicated
screw from the battery drawer, and pull the battery
drawer open. Insert four batteries into the battery
drawer; make sure that the batteries are oriented as
shown by the markings inside of the battery drawer.
Then, close the battery drawer and tighten the screw.
6. While another person holds the Console (5) near the
Upright (2), connect the wire harness on the Console
to the Upper Wire Harness (86). Insert the excess
wire harness down into the Upright. Next, attach the
Console to the Upright with four M4 x 16mm Screws
(66). Be careful to avoid pinching the wire har-
nesses.
4
2
86
95
46
Hexagonal
Holes
5
Screw
6
Wire
Harness
66
7
Make sure that the
wire harnesses do
not get pinched
and damaged
during this step.
72
76
83
67
83
15
5
Batteries
Battery
Drawer
5
86
Make sure the
wire harnesses do
2
not get pinched
and damaged
during this step.
