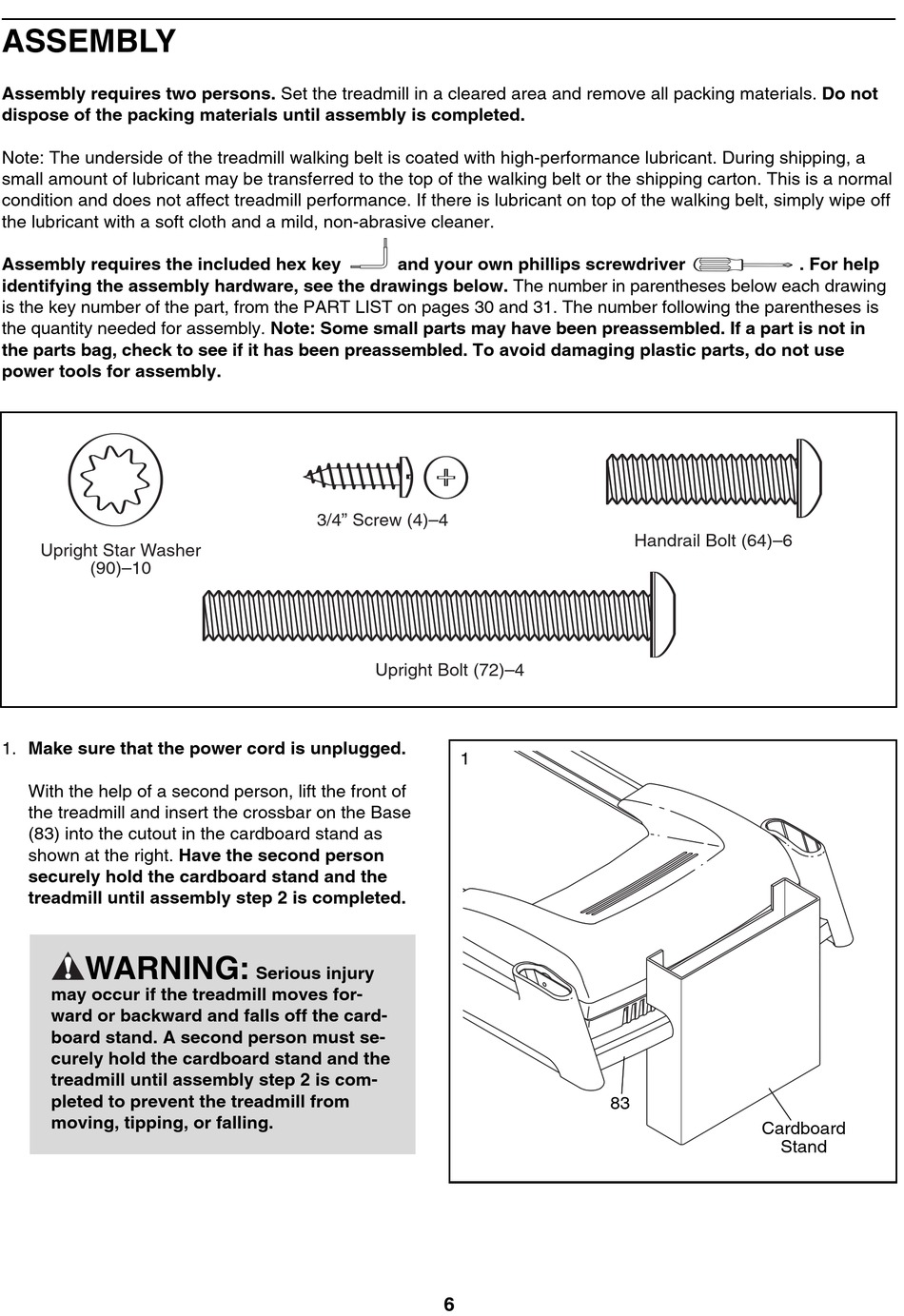

ASSEMBLY

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex key
identifying the assembly hardware, see the drawings below. The number in parentheses below each drawing
is the key number of the part, from the PART LIST on pages 30 and 31. The number following the parentheses is
the quantity needed for assembly. Note: Some small parts may have been preassembled. If a part is not in
the parts bag, check to see if it has been preassembled. To avoid damaging plastic parts, do not use
power tools for assembly.
Upright Star Washer
(90)–10
1. Make sure that the power cord is unplugged.
With the help of a second person, lift the front of
the treadmill and insert the crossbar on the Base
(83) into the cutout in the cardboard stand as
shown at the right. Have the second person
securely hold the cardboard stand and the
treadmill until assembly step 2 is completed.
Upper Latch Bolt (XX)–1
WARNING:
may occur if the treadmill moves for-
ward or backward and falls off the card-
board stand. A second person must se-
curely hold the cardboard stand and the
treadmill until assembly step 2 is com-
pleted to prevent the treadmill from
moving, tipping, or falling.
4 1/2" Bolt (78)–4
1/2" Silver Screw
(48)–1
and your own phillips screwdriver
3/4" Screw (4)–4
Upright Bolt (72)–4
Lower Latch Bolt (XX)–1
Serious injury
Console Bolt (72)–4
6
3/4" Tek Screw (58)–4
Handrail Bolt (64)–6
1
83
Spacer Screw (60)–2
. For help
Nut (38)–2
Cardboard
Stand
Washe
