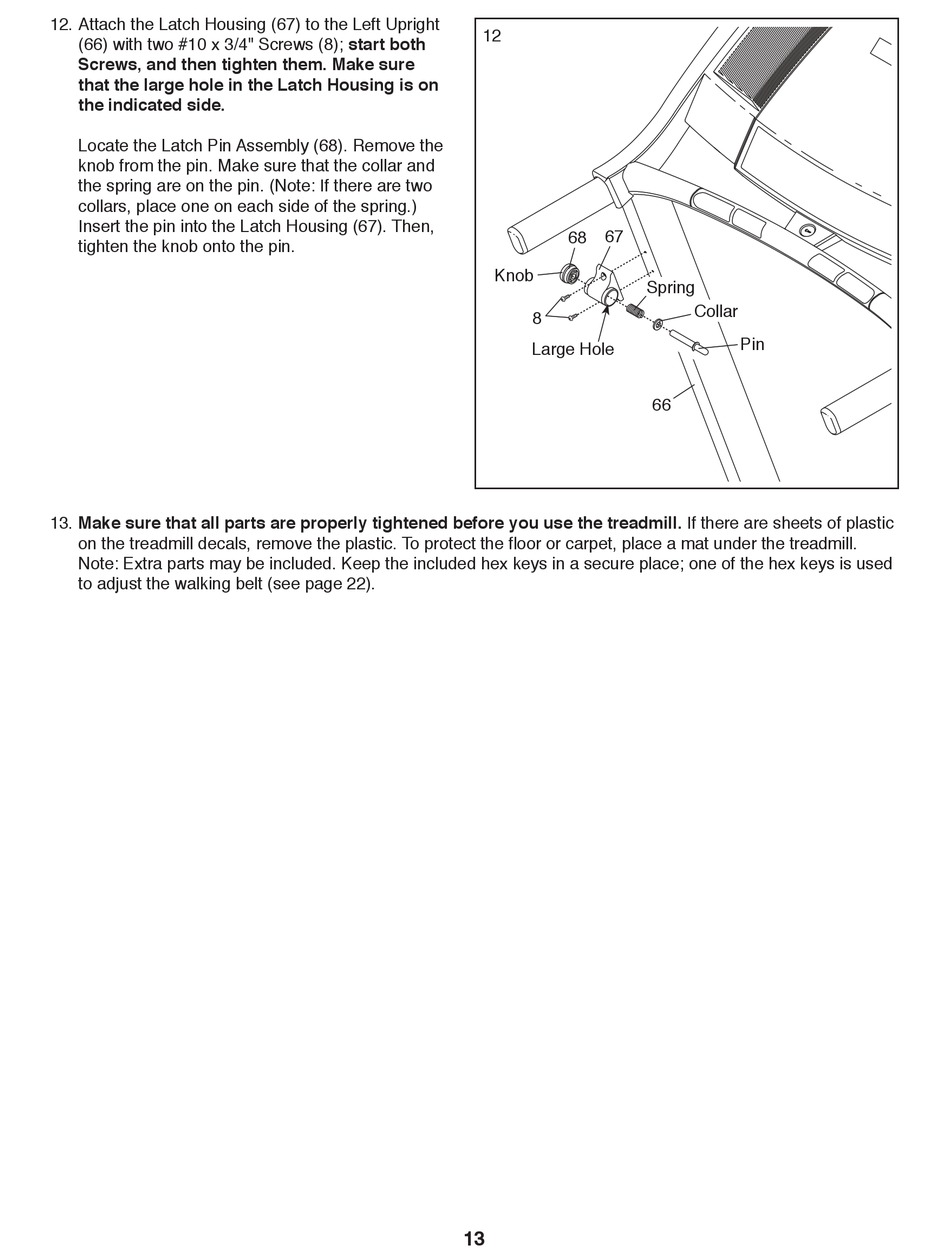

12. Attach the Latch Housing (67) to the Left Upright
(66) with two #10 x 3/4" Screws (8) ; start both
Screws, and then tighten them. Make sure
that the large hole in the Latch Housing is on
the indicated side.
Locate the Latch Pin Assembly (68). Remove the
knob from the pin. Make sure that the collar and
the spring are on the pin. (Note: If there are two
collars, place one on each side of the spring.)
Insert the pin into the Latch Housing (67). Then,
tighten the knob onto the pin.
13. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the oor or carpet, place a mat under the treadmill.
Note: Extra parts may be included. Keep the included hex keys in a secure place; one of the hex keys is used
to adjust the walking belt (see page 22).
12
67
68
Knob
8
Large Hole
13
Spring
Collar
Pin
66
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the 6.0 Rt Treadmill and is the answer not in the manual?
Questions and answers
the track is stuck in an incline position and the display continues to move through the various speed settings but none of the buttons can be activated. to lower the tack or start and stop any function. while in a programed mode I increased and lowered thespeed and now nothing works
To fix a stuck incline on a Pro-Form 6.0 RT Treadmill when the display is unresponsive, follow these steps:
1. Hold down the Stop button and the Speed increase button.
2. Insert the key into the console.
3. Release the Stop button and the Speed increase button.
4. Press the Stop button again.
5. Press the Incline increase or decrease button.
The treadmill will automatically rise to the maximum incline level and then return to the minimum level to recalibrate the incline system. If the incline does not begin calibrating, repeat steps 4 and 5. Once the calibration is complete, remove the key.
