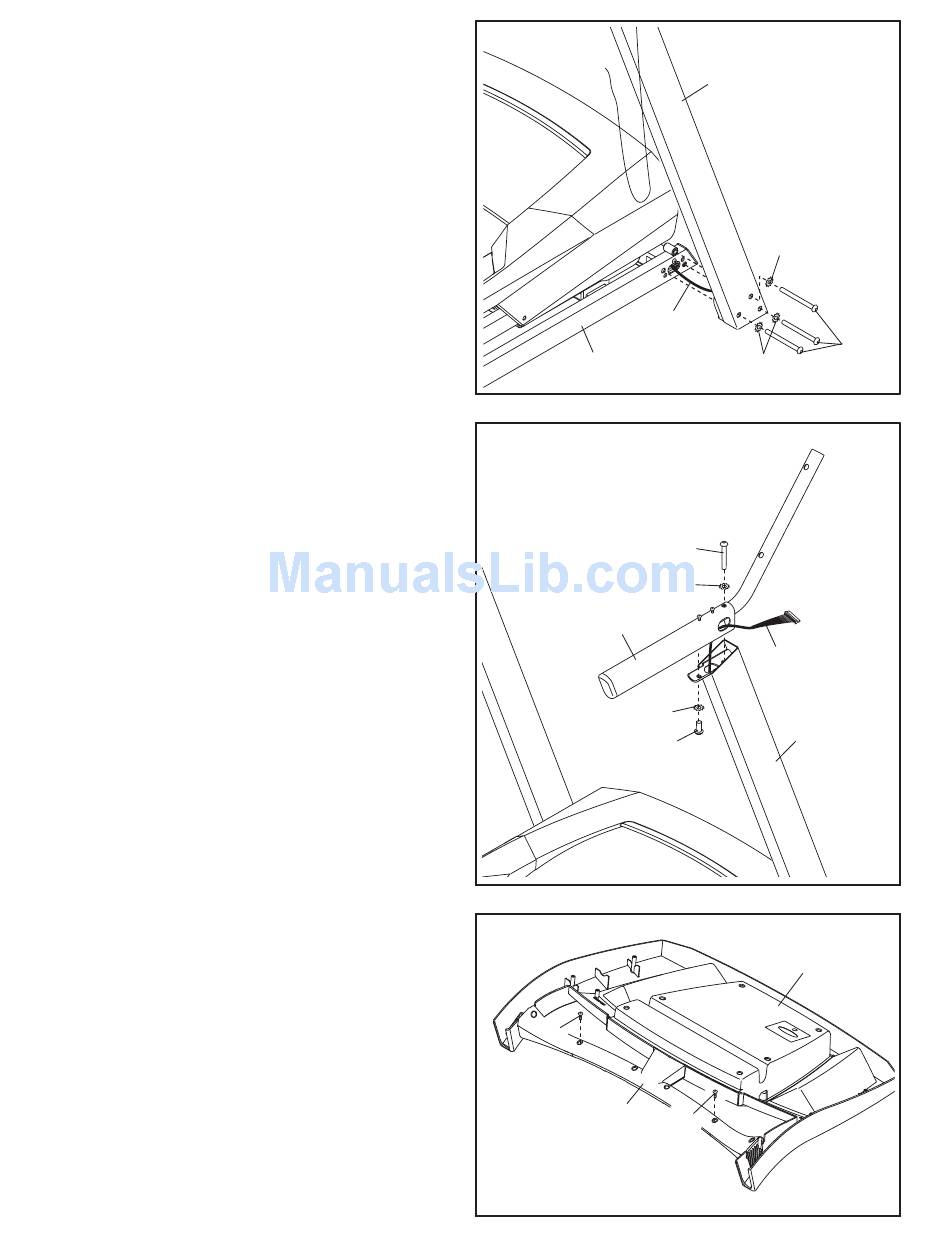

5. Hold the Right Upright (33) against the Base
(74). Be careful not to pinch the Upright
Wire (63).
Insert a 3/8" x 3 1/4" Screw (2) with a 3/8" Star
Washer (3) into the top hole in the Right Upright
(33). Then, partially tighten the Screw into the
Base (74).
Partially tighten two more 3/8" x 3 1/4" Screws
(2) with two 3/8" Star Washers (3) into the Right
Upright (33) and the Base (74); do not fully
tighten the Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
6. Identify the Right Handrail (64). Have a second
person hold the Right Handrail near the Right
Upright (33).
Route the Upright Wire (63) into the bottom of
the Right Handrail (64) and out of the hole in the
Right Handrail.
Be careful not to pinch the Upright Wire (63).
Insert and partially tighten a 5/16" x 3/4" Screw
(5) with a 5/16" Star Washer (6) into the Right
Upright (33) and the Right Handrail (64). Then,
partially tighten a 5/16" x 3" Screw (7) with a
5/16" Star Washer (6) into the Right Handrail
and the Right Upright. Do not fully tighten the
Screws yet.
Attach the Left Handrail (not shown) in the
same way. Note: There are no wires on the left
side.
7. Set the console assembly face down on a
soft surface to avoid scratching the console
assembly.
Remove the two screws (C) from the Console
Crossbar (61). Remove the Console Crossbar.
Discard the screws.
