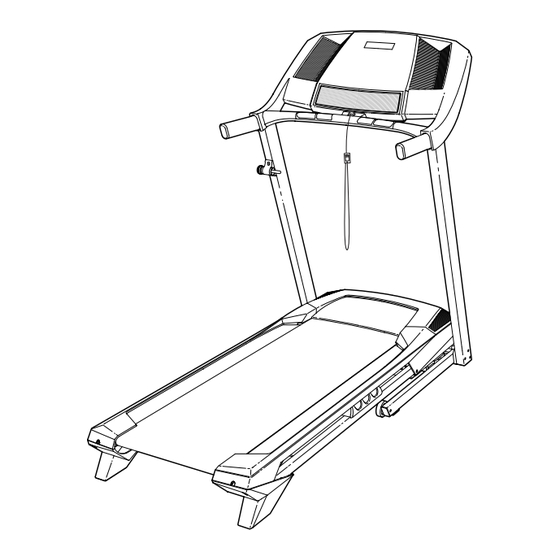

USER'S MANUAL
Model No. PFTL39511.2
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6.0 RT and is the answer not in the manual?

Questions and answers

Related Manuals for Pro-Form 6.0 RT

Summary of Contents for Pro-Form 6.0 RT

  • Page 1 www.proform.com USER’S MANUAL Model No. PFTL39511.2 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if parts are damaged or missing, DO NOT CONTACT THE STORE; please contact Customer Care. IMPORTANT: Please register this product (see the limited warranty on the back cover of this manual)

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNING DECAL PLACEMENT ............. . .2 IMPORTANT PRECAUTIONS .

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sus- tained by or through the use of this product.
  • Page 4 20. The heart rate monitor is not a medical 24. Never insert any object into any opening on device. Various factors, including the user’s the treadmill. movement, may affect the accuracy of heart rate readings. The heart rate monitor is 25.

  • Page 5: Before You Begin

    6.0 RT manual. To help us assist you, note the product model ® treadmill. The 6.0 RT treadmill provides an impressive number and serial number before contacting us. The selection of features designed to make your workouts model number and the location of the serial number at home more effective and enjoyable.

  • Page 6: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw- ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly.

  • Page 7: Assembly

    ASSEMBLY • To hire a service technician to assemble this prod- • Left parts are marked “L” or “Left” and right parts uct in your home, call 1-800-445-2480. are marked “R” or “Right.” • Assembly requires two persons. • To identify small parts, see page 6. • Place all parts in a cleared area and remove the • Assembly requires the following tools: packing materials.
  • Page 8 3. Identify the Right Upright (76), which is marked “Right.” Have a second person hold the Right Upright near the Base (74). See the inset drawing. Tie the wire tie in the Right Upright (76) securely around the end of the Upright Wire (63).
  • Page 9 5. Identify the Right Handrail (64). Have a second person hold the Right Handrail near the Right Upright (76). Route the Upright Wire (63) into the bottom of the Right Handrail (64) and out of the hole in the Right Handrail. Be careful not to pinch the Upright Wire (63).

  • Page 10: Start All Four Screws, And Then Tighten Them

    7. Remove the four screws (D) from the Left and Right Handrails (59, 64). Discard the screws. 8. Attach the Console Crossbar (61) to the Left and Right Uprights (66, 76) with four #10 x 3/4" Screws (8) and four #10 Star Washers (23). Start all four Screws, and then tighten them.
  • Page 11 9. With the help of a second person, hold the con- sole assembly near the Right Handrail (64). Connect the Upright Wire (63) to the console Console wire. See the inset drawing. The connectors Assembly should slide together easily and snap into place.
  • Page 12 11. Attach the Latch Housing (67) to the Left Upright (66) with two #10 x 3/4" Screws (8); start both Screws, and then tighten them. Make sure that the large hole in the Latch Housing is on the indicated side. Locate the Latch Pin Assembly (68).

  • Page 13: Operation And Adjustment

    OPERATION AND ADJUSTMENT HOW TO CONNECT THE POWER CORD nominal 120-volt circuit capable of carrying 15 or more amps. To avoid overloading the circuit, do Use a Surge Suppressor not plug other electrical devices, except for low- power devices such as cell phone chargers, into Your treadmill, like other electronic equipment, can be the surge suppressor or into an outlet on the same circuit.
  • Page 14 CONSOLE DIAGRAM FEATURES OF THE CONSOLE To turn on the power, see page 15. To use the man- ual mode, see page 15. To use a preset workout, see The treadmill console offers a selection of features page 17. To use the information mode, see page 18. designed to make your workouts more effective.

  • Page 15: To Turn On Power

    HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the treadmill has been exposed to 1. Insert the key into the console. cold temperatures, allow it to warm to room tem- perature before turning on the power. If you do not See HOW TO TURN ON THE POWER at the left.
  • Page 16 4. Change the incline of the treadmill as desired. burned, or the speed of the walking belt. Press the Priority Display button repeatedly until the upper To change the incline of the treadmill, press the display shows the information that you are most Incline increase and decrease buttons or one of interested in viewing.

  • Page 17: To Use A Preset Workout

    HOW TO USE A PRESET WORKOUT programmed for the next segment, the speed and/ or incline setting will flash in the display to alert you. 1. Insert the key into the console. The treadmill will then automatically adjust to the speed and incline settings for the next segment. See HOW TO TURN ON THE POWER on page 15. The workout will continue in this way until the last 2.

  • Page 18: Information Mode

    THE INFORMATION MODE HOW TO USE THE STEREO SOUND SYSTEM The console features an information mode that keeps To play music or audio books through the console’s track of treadmill usage information and allows you to speakers, you must connect your MP3 player, CD select a unit of measurement for the console.

  • Page 19: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL Before folding the treadmill, adjust the incline to Before moving the treadmill, fold it as described at the the lowest position. If you do not do this, you may left.

  • Page 20: Troubleshooting

    TROUBLESHOOTING Most treadmill problems can be solved by follow- c. Remove the key from the console, and then ing the simple steps below. Find the symptom that reinsert it. applies, and follow the steps listed. If further assis- tance is needed, see the front cover of this manual. d.
  • Page 21 Locate the Reed Switch (33) and the Magnet (32) b. If the walking belt is overtightened, treadmill per- on the right side of the Pulley (31). Turn the Pulley formance may decrease and the walking belt may until the Magnet is aligned with the Reed Switch. become damaged.
  • Page 22 SYMPTOM: The walking belt is off-center or slips b. If the walking belt slips when walked on, first when walked on remove the key and UNPLUG THE POWER CORD. Using the hex key, turn both idler roller a. If the walking belt is off-center, first remove the screws clockwise, 1/4 of a turn.

  • Page 23: Exercise Guidelines

    EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.

  • Page 24: Part List

    PART LIST Model No. PFTL39511.2 R0812A Key No. Qty. Description Key No. Qty. Description #8 x 1/2" Ground Screw Walking Belt 3/8" x 3 1/4" Screw Right Foot Rail 3/8" Star Washer Idler Roller #8 x 3/4" Screw Left Rear Foot 5/16"...

  • Page 25: Exploded Drawing

    EXPLODED DRAWING A Model No. PFTL39511.2 R0812A...
  • Page 26 EXPLODED DRAWING B Model No. PFTL39511.2 R0812A...
  • Page 27 EXPLODED DRAWING C Model No. PFTL39511.2 R0812A 16 75...

  • Page 28: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro- vide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) • the name of the product (see the front cover of this manual) • the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING near the end of this manual)
