Summary of Contents for Globalsat GH-601

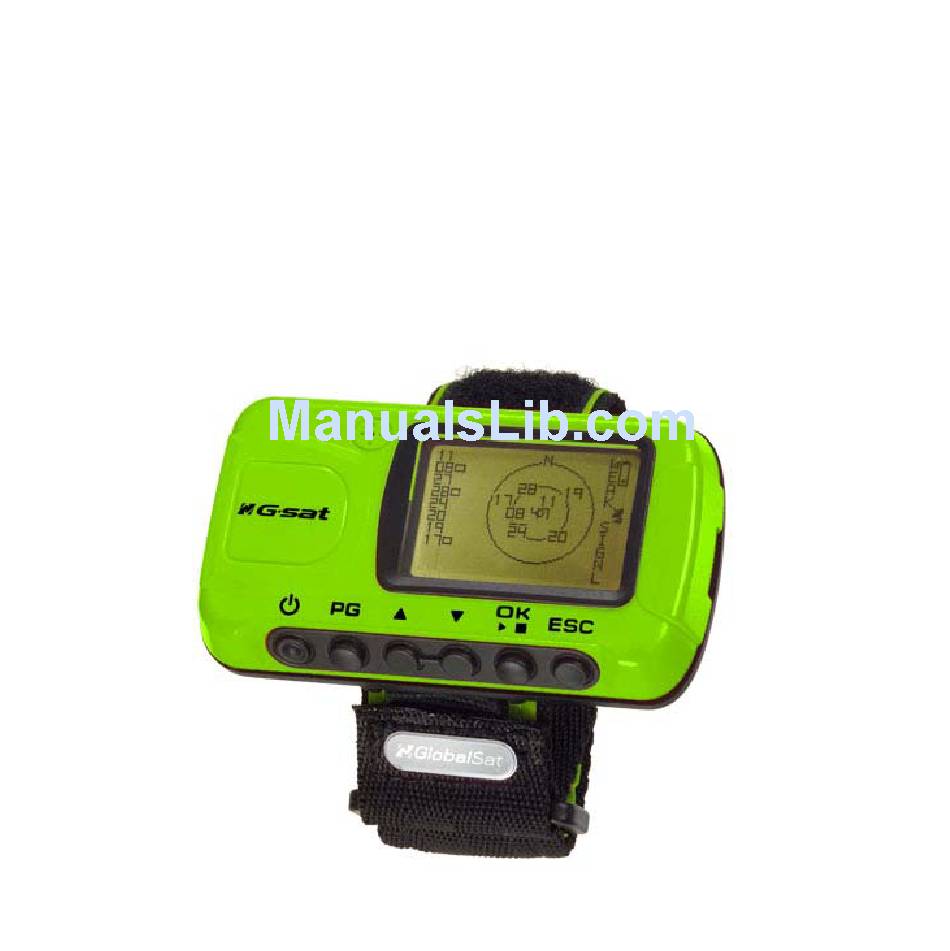

- Page 1 Wrist Type GPS for Outdoor Training / GPS Receiver GH-601 User Manual Version 1.41...
-
Page 2: Table Of Contents
3 Application Software ... 5 4 Accessories ... 5 5 Front panel description ... 6 6 Charging the GH-601 ... 7 7 Starting up your GH-601 ... 8 Changing the Mode ...8 Setting the Time Zone...10 Using the GH-601 Buttons...11 8 GH-601 Main Functions ... - Page 3 Find Waypoint...17 STOP GOTO ...18 ALERTS...18 GPS INFO...19 11 GPS Mouse... 19 To use your GH-601 as a GPS Receiver...19 12 Configuration ... 20 Configure your system ...20 Upload your performance record to PC...21 Update your firmware in GH-601...21 GH-601...
-
Page 4: Introduction
Introduction Globalsat GH-601 provides a fully-sealed, waterproof, large LCD wrist-watch device, as well as a GPS navigation function that locates and tracks points from start to stop. It is adopted for people who exercise for broad kinds of outdoor sports, such as Jogging, Running, Biking, Snow Skiing, etc. -
Page 5: Application Software
Supporting operating system such as Windows 98 /2000 /XP. Smart training database management designed for easy of use. Easy to use perform firmware upgrades. Accessories User’s manual USB cable (For charging and data download) PC software CD AC/DC 5V charger (Optional) GH-601 page 5... -
Page 6: Front Panel Description
Front panel description GH-601 page 6... -
Page 7: Charging The Gh-601
Charging the GH-601 The GH-601 operates on a built-in Li-ion battery. You must charge the internal battery when the battery runs out. To charge the battery, please connect one end of mini-USB cable to PC USB port and the other end to the mini-USB port of GH-601. -
Page 8: Starting Up Your Gh-601
Press and hold the POWER button until the welcome screen is displayed. Allow the GH-601 time to track satellites the first time you use it. Leave the GH-601 outside and face a clear view of the sky and it will be easy to acquire satellite signals within 5 seconds. - Page 9 The countdown screen displays the time you spent of workout and average speed and distance of you workout. Menu Mode: The Menu Mode provides access to features and settings. Location Mode: The Location Mode provides your current location for your reference. GH-601 Menu mode Map mode (If enabled) page 9...
-
Page 10: Setting The Time Zone
Setting the Time Zone When the GH-601 is ready for use; you may need to check the Time Zone selection. To change the time zone follow steps below: Press PG button to display the Menu mode. -
Page 11: Using The Gh-601 Buttons
Using the GH-601 Buttons POWER MODE The POWER button: Press and hold continuously 4 seconds to turn the unit on or off. When the unit is on, press and release to turn the backlight on or off. Press and hold continuously 14 seconds to reset if unit is hung up or frozen. - Page 12 Press to cycle through the different screens of the Speedometer Mode. Press to adjust the LCD contrast. Press to Zoom in and Zoom out in the Map Mode (if enabled). Press to select the feature in Menu Mode. GH-601 page 12...
-
Page 13: Gh-601 Main Functions
GH-601 Main Functions SPORT RECORD RUN FILE INFO DELETE ALL NAVIGATION ADD MAP MODE / REMOVE MAP MODE TURN ON GPS / TURN OFF GPS SAVE WAYPOINT FIND WAYPOINT STOP GOTO / RETURN TO ORIG (return to original location) ALERTS... -
Page 14: Sport Record
To save your training data 1. In the Speedometer Mode, press ESC to stop the count time. 2. Press ESC and saving window appears. 3. Select YES to save your performance data. GH-601 Record screen File info screen Saving window screen Performance record... -
Page 15: Navigation
GPS is fixed. 8. In Map Mode, you can press “UP/DOWN” buttons to zoom in or zoom out. The scale is on the left bottom corner of the screen. GH-601 GPS is not to be fixed GPS is fixed... -
Page 16: Save Waypoint
7. To decide the Longitude and Latitude and Elevation, use same procedure as location symbol selection. 8. Press DOWN or UP to highlight the CONFIRM field and press OK, the location data will be stored automatically in the memory. GH-601 Save Waypoint screen page 16... -
Page 17: Find Waypoint
6. The distance and time for you to go from current location to destination are shown on the right part of the screen. The destination direction is shown by the arrow sign. GH-601 Location mark screen GOTO location screen Find Waypoint in Map... -
Page 18: Stop Goto
2. Press STOP GOTO to stop the Find Waypoint function in map mode. ALERTS 1. The alert function allows you to setup for GH-601 to alarm you when a specified condition is met. You can set the condition by “time”, “distance” or “speed”. -
Page 19: Gps Info
2. Select GPS MOUSE and press OK. 3. Select TURN ON G-MOUSE and press OK. 4. Please install the GH-601 USB driver on your PC. 5. Please connect one end of mini-USB cable to PC USB port and the other end to the mini-USB port of GH-601. -
Page 20: Configuration
8. Press SET BEEPER to turn the beeper on or off in the GH-601. 9. You can return to the default setup by pressing FACTORY RESET. 10. Press ABOUT GH-601 to see the information about GH-601. GH-601 Configuration screen Time zone screen... -
Page 21: Upload Your Performance Record To Pc
1. In Configuration Mode, press UPLOAD TO PC to prepare for data uploading. 2. To upload the data from GH-601 to PC, please connect one end of mini-USB cable to PC USB port and the other end to the mini-USB port of GH-601. - Page 22 5. Please confirm you wish to update firmware. 6. Select the firmware file from a PC what you want and transfer to GH-601. 7. System will auto-reboot when finished updating. * Note: Please contact your dealer if update not finished and cannot reboot.
-
Page 23: Fcc Notices
This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. GH-601 page 23...
