Page 1: Quick Start Guide

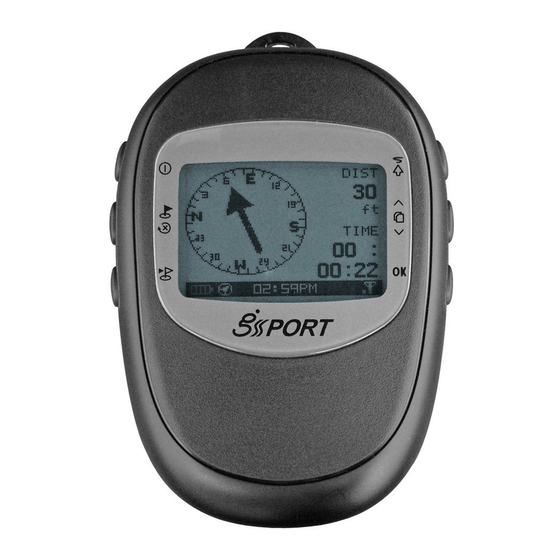

Outdoor GPS Device GH-561 GPS Trek Pro Quick Start Guide V 3.0 POWER / LIGHT TRACK BACK SCROLL MARK W.P. / ESC FIND WAYPOINT GlobalSat www.globalsat.com.tw... -
Page 2: What Is Gps
What is GPS? A system for providing precise location which is based on data transmitted from a constellation of 24 satellites. It comprises three segments: (a) the Control Segment, (b) the Space Segment, and (c) the User Segment. What is IPX4? The IPX4 water resistant standard is the level in which a device is protected against splashing water without any adverse operational effects. - Page 3 Note!! To prevent damage or injury do not place the e-compass near an open flame or lay on a magnetic source. Please fully charge the device before first use. Symbol Explanations GPS status indicator None: No signal...
- Page 4 Solid: 3D fix Solid with 1 bar: 3D fix with poor signal Solid with 2 bar: 3D fix with good signal Solid with 3 bar: 3D fix with strong signal Battery capacity indication E-Compass status indicator - Blinking: E-Compass got magnetic interference or unstable, it needs to calibrate at this situation.
- Page 5 The display will show direction, remaining distance, and needed time till you arrive at your destination. A solid arrow means the system has a 3D fix A blank arrow means system has no fix and in e-compass navigation mode. By pressing the ‘’OK’’ button, the device will display the map page.
- Page 6 2. Press button to choose the waypoint you’ve saved. The display will show the direction ,remaining distance, and time needed to destination. 3. Press button to choose the waypoint you’ve saved to go. 4. Press button to choose the waypoint you’ve saved. The display will show the direction and remaining distance and time needed to destination.
- Page 7 Hot Key for the Settings 1. On compass screen, press simultaneously 2. The setting information is including Compass Setting Setup Time Display Setting GPS Setting Route Setting Set Units GPS Info Factory Reset About Press will go into selected page Press will exit Notice: You can set the time zone, check GPS receiving status at this...
- Page 8 2. Follow the instruction to calibrate X & Y axis first 3. Calibrated X & Y axis, continue to calibrate Z axis 3. When you finished X/Y/Z axis calibration, the display will show ‘’ Calibration OK’’. 4. Press will return to compass display’.
