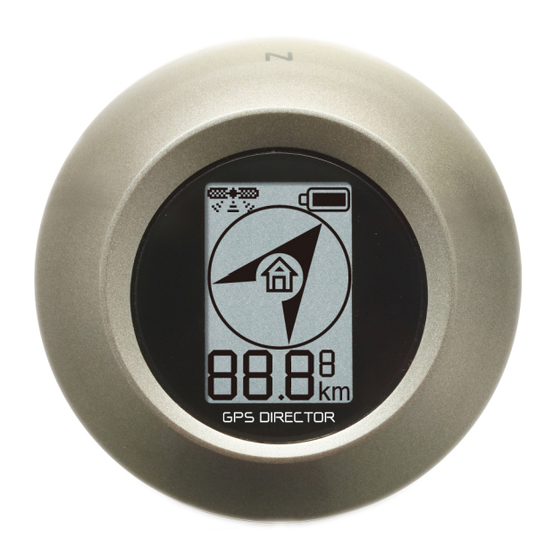

GPS Director
GD-101 User Manual
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GD-101 and is the answer not in the manual?

Questions and answers

Related Manuals for Globalsat GD-101

Summary of Contents for Globalsat GD-101

  • Page 1 GPS Director GD-101 User Manual Version 1.0...

  • Page 2: Table Of Contents

    Appearance ................6 Chapter 2：Start to Use ..........7 Install Battery ................7 Magnetic North Adjustment .............. 7 Chapter 3：Using GD-101 ..........8 3-1 Direction Indication Screen ............8 3-1-1 Automatic Setting the Destination ................ 9 3-2 Main Setting Screen ..............10 3-2-1 Manual Setting Destination’s Coordinate..............

  • Page 3: Chapter 1：Functions And Specifications

    Chapter 1：Functions and Specifications Function and Features Can set 5 Destination Points Display directions with Digital Arrow Display (Can display 16 directions) Magnetic North Direction Indication; present coordinates display Manual Setting of Destination Coordinates Maximum Destination Distance Showing (0~999.99) GPS fix status indication 3 Kinds of Distance Unit: km/mi/nm for setting Time Zone Setting/ Date and time display End User changeable Battery Design: AAA x 2, Rechargeable Battery /General...

  • Page 4: Specifications

    2. Return to last page under each setting screen.。 Selection/ Setting Short-click: To select. Button Long-click: To set. Make GD-101 enter main screen by long clicking Power/Backlight Button and Selection/ Setting Button at the same time. Appearance Dimension 60 X 60 X 28 (mm)
  • Page 5 ACCURACY 10 meters, 2D RMS Horizontal Position 1-5 meters 2D RMS, WAAS corrected Speed Accuracy 0.1 m/sec Time Accuracy 1 micro-second synchronized to GPS time Temperature Operation 0°C ~ 50°C Temperature Storage -20°C ~ 70°C Temperature Humidity Range Operational up to 95% non-condensing Certification FCC USA (Covers requirements for CANADA ICES-003) CE Europe...

  • Page 6: Accessories

    Power off device under main screen. Return to last page under each setting screen. Short-click (1sec): To select. Long-click (2sec): To set. Selection/ ➍ Make GD-101 enter main screen by long clicking Setting Button Power/Backlight Button and Selection/ Setting Button at the same time.

  • Page 7: Chapter 2：Start To Use

    Install Battery Lock the cover Magnetic North Adjustment When using GD-101 for the first time, GD-101 will automatically perform the magnetic-north adjustment as seen in the screenshot below. For the method of adjustment, please refer to Chapter 3-2. If GD-101 shows the incorrect or inaccurate direction, please perform the...

  • Page 8: Chapter 3：Using Gd-101

    The distance between GD-101 and destination will only be shown/ displayed when device has GPS fix. The direction of the setting destination of GD-101. The arrow will direct to the destination after GD-101 has GPS fix and has performed the magnetic-north adjustment.

  • Page 9: Automatic Setting The Destination

    If you try to save the present coordinates under no GPS fix status, GD-101 will display as seen in the screenshot to the left and then return to the direction indication screen.

  • Page 10: Main Setting Screen

    3-2 Main Setting Screen In the direction indication screen, you could make GD-101 enter main screen by long clicking Power/Backlight Button and Selection/ Setting Button at the same time. Screen and Operation Explanation: Indication Function Operation Long click Selection/Setting button to enter setting screen.

  • Page 11: Manual Setting Destination's Coordinate

    3-2-1 Manual Setting Destination’s Coordinate icon Explanation Set Home’s coordinates. The indication will be ON when the destination’s coordinates are set. Set Building’s coordinates. The indication will be ON when the destination’s coordinates are set. Set Car’s coordinates. The indication will be ON when the destination’s coordinates are set.

  • Page 12: Function Setting

    3-2-2 Function Setting Icon Explanation Set User’s Time Zone Select the unit of displayed distance, KM, mile, and nm. Set backlight timeout automatic sleeping time power-saving Setting Time Zone Explanation You could set time zone in this screen. The value on the lower screen represents the GMT time.
  • Page 13 Setting Backlight Timeout-time Explanation Set the backlight timeout-time in this screen. The value in the lower screen is the backlight time-out time. The backlight will be on for the time-out time after you short click the power/backlight button. Short click Selection/Setting button to select the backlight timeout.

  • Page 14: Setting Data

    Long click Power button to return to last screen. Long click Selection/Setting button to go to main screen. Cold Start Explanation 1. This screen shows GD-101 is performing a GPS Cold Start 2. It will return to navigation screen after 1 second.
  • Page 15 Deleting Coordinates of Destination Screen Explanation 1. This screen shows GD-101 is deleting the coordinates of the destination. 2. It will return to navigation screen after 1 second.

  • Page 16: Adjusting E-Compass

    360 degrees, twice. GD-101 will automatically return to navigation screen. 3-4 Turning Off GD-101 Explanation In the direction navigation screen, long click power button to turn off GD-101. GD-101 will be turned off 2 seconds after seeing this screen.

  • Page 17: Chapter 4: Troubleshooting

    When GD-101 can not be turned on or does not work properly, Please check if the battery is installed correctly. It requires more time to get GPS fix while GD-101 is moving. Please keep GD-101 stationary when powering on GD-101. This will shorten the time to get a GPS fix.

  • Page 18: Appendix 1：World Time Zone Table

    Appendix 1：World Time Zone Table Time Code Description Region Time Zone ACDT Australian Central Daylight Time Australia +10:30 ACST Australian Central Standard Time Australia + 9:30 Atlantic Daylight Time North America - 3:00 AEDT Australian Eastern Daylight Time Australia + 11:00 AEST Australian Eastern Standard Time Australia + 10:00...
  • Page 19 Heure Avancée des Rocheuses North America - 6:00 HAST Hawaii-Aleutian Standard Time North America - 10:00 Heure Avancée de Terre-Neuve North America -2:30 Heure Avancée du Yukon North America - 8:00 Heure Normale de l'Atlantique North America - 4:00 Heure Normale du Centre North America - 6:00 Heure Normale de l'Est...

  • Page 20: Appendix 2：Fcc Notices

    Appendix 2：FCC Notices This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
