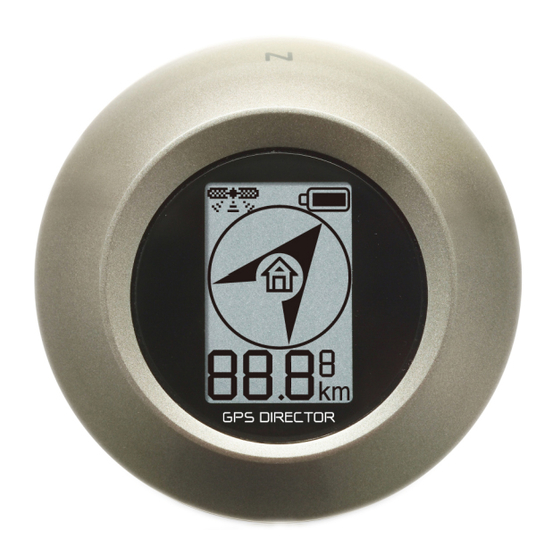

GPS Director
GD-101 User Manual
Version 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GD-101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Globalsat GD-101

Summary of Contents for Globalsat GD-101

  • Page 1 GPS Director GD-101 User Manual Version 1.1...

  • Page 2: Table Of Contents

    Appearance Chapter 2 Using Your Device For The First Time ....7 ................ 7 Battery Installation .............. 7 Magnetic North Adjustment Chapter 3 Using The GD-101 ...........8 ..............8 3-1 Your Heading Screen 3-1-1 Automatic Setting the Destination................9 Screen..............10 3-2 Main Setting 3-2-1 Manually Setting Your Destination’s...

  • Page 3: Chapter 1_Functions And Specifications

    Chapter 1_Functions and Specifications Functions and Features: Up to 5 Destination Points Display directions with Digital Arrow (Can display 16 directions) Magnetic North Direction Indication Manual Destination Coordinate Settings Maximum Destination Distance Showing (0~999.99) GPS Fix Status Indication 3 Kinds of Distance Units: km/mi/nm Time Zone Setting/ Date Uses (2) AAA Batteries Battery Life Can Last Up To 18 Hours In Ideal Conditions.

  • Page 4: Specifications

    2. Return to last page under each setting screen._ Selection/ Short-click: To select. Setting Button Long-click: To set. Make GD-101 enter main screen by long clicking Power/Backlight Button and Selection/ Setting Button at the same time. Appearance Dimension 60 X 60 X 28 (mm)
  • Page 5 ACCURACY 10 meters, 2D RMS Horizontal Position 1-5 meters 2D RMS, WAAS corrected Speed Accuracy 0.1 m/sec Time Accuracy 1 micro-second synchronized to GPS time Temperature Operation 0°C ~ 50°C Temperature Storage -20°C ~ 70°C Temperature Humidity Range Operational up to 95% non-condensing Certification FCC USA (Covers requirements for CANADA ICES-003) CE Europe...

  • Page 6: Accessories

    Returns to the last page under each setting screen. Press: To select. Hold (2sec): To set. Selection/ By holding The Power/Illumination Button and the Selection/ Setting Button Setting Button at the same time the GD-101 will enter the main settings screen.

  • Page 7: Chapter 2 Using Your Device For The First Time

    Magnetic North Adjustment When using the GD-101 for the first time, the GD-101 will automatically perform the magnetic- north adjustment as seen in the screenshot to the left.

  • Page 8: Chapter 3 Using The Gd-101

    The distance between the GD-101 and your destination will only be shown/ displayed when the GD-101 has a GPS fix. The E-Compass screen will began to direct you to your destination after the GD-101 has a GPS fix and has performed the magnetic-north adjustment. Battery power level:...

  • Page 9: Automatic Setting The Destination

    101 will display the graphic shown to the left and then return to E-Compass mode. If you try to save your present coordinates with no GPS fix, the GD-101 will display a graphic similar to the image seen in the screenshot to the left and then return to E-Compass mode.

  • Page 10: Main Setting Screen

    3-2 Main Setting Screen While in E-Compass mode, you can make the GD-101 enter the main screen by holding the Power/Illumination Button and the Selection/ Setting Button at the same time. Screen and Operation Explanation: Indication Function Operation Hold the Selection/Setting button to enter the setting screen.

  • Page 11: Manually Setting Your Destination's Coordinates

    3-2-1 Manually Setting Your Destination’s Coordinates icon Explanation Set Home’s coordinates. The indication will when destination’s coordinates are set. Set Building’s coordinates. The indication will when destination’s coordinates are set. Set Car’s coordinates. The indication will be ON when the destination’s coordinates are set.

  • Page 12: Function Setting

    3-2-2 Function Setting Icon Explanation Set Your Time Zone Set the unit for displayed distance, KM, mile, and nm. Set illumination timeout Set preferred automatic sleeping time for power-saving Setting Time Zone Explanation You could set your time zone in this screen. The value on the lower screen represents the GMT time.
  • Page 13 Setting The Illumination Timeout Explanation The value in the lower portion of the image to the left is the illumination time-out time. The screen will be on for the selected amount of time after you press the power/backlight button. Press the Selection/Setting button to select the illumination timeout.

  • Page 14: Setting Data

    Press the Power button to return to the last screen. Hold the Selection/Setting button to go to the main screen. Cold Start Explanation 1. This screen shows the GD-101 is performing a GPS a Cold Start 2. The GD-101 will return to the E-Compass screen after 1 second.

  • Page 15: Adjusting E-Compass

    Deleting Coordinates of Destination Screen Explanation 1. This screen shows the GD-101 is deleting the coordinates of the destination. 2. It will return to the E-Compass screen after 1 second. 3-3 Adjusting E-Compass Explanation The GD-101 will display magnetic north after adjusting the E-Compass.

  • Page 16: Turning Off Gd-101

    3-4 Turning Off The GD-101 Explanation To turn off the GD-101 press and hold the power button till the GD-101 turns off. The GD-101 will turn off 2 seconds after seeing the image to the left.

  • Page 17: Chapter 4: Troubleshooting

    When GD-101 can not be turned on or does not work properly, Please check if the battery is installed correctly. Why does the GD-101 require more time to get a GPS fix while in motion powering the GD-101 on? In order to shorten the “fix time”...

  • Page 18: World Time Zone Table

    World Time Zone Table Time Code Description Region Time Zone ACDT Australian Central Daylight Time Australia +10:30 ACST Australian Central Standard Time Australia + 9:30 Atlantic Daylight Time North America - 3:00 AEDT Australian Eastern Daylight Time Australia + 11:00 AEST Australian Eastern Standard Time Australia + 10:00...
  • Page 19 HAST Hawaii-Aleutian Standard Time North America - 10:00 Heure Avancée de Terre-Neuve North America -2:30 Heure Avancée du Yukon North America - 8:00 Heure Normale de l'Atlantique North America - 4:00 Heure Normale du Centre North America - 6:00 Heure Normale de l'Est North America - 5:00 Heure Normale du Pacifique...

  • Page 20: Fcc Notices

    FCC Notices This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
