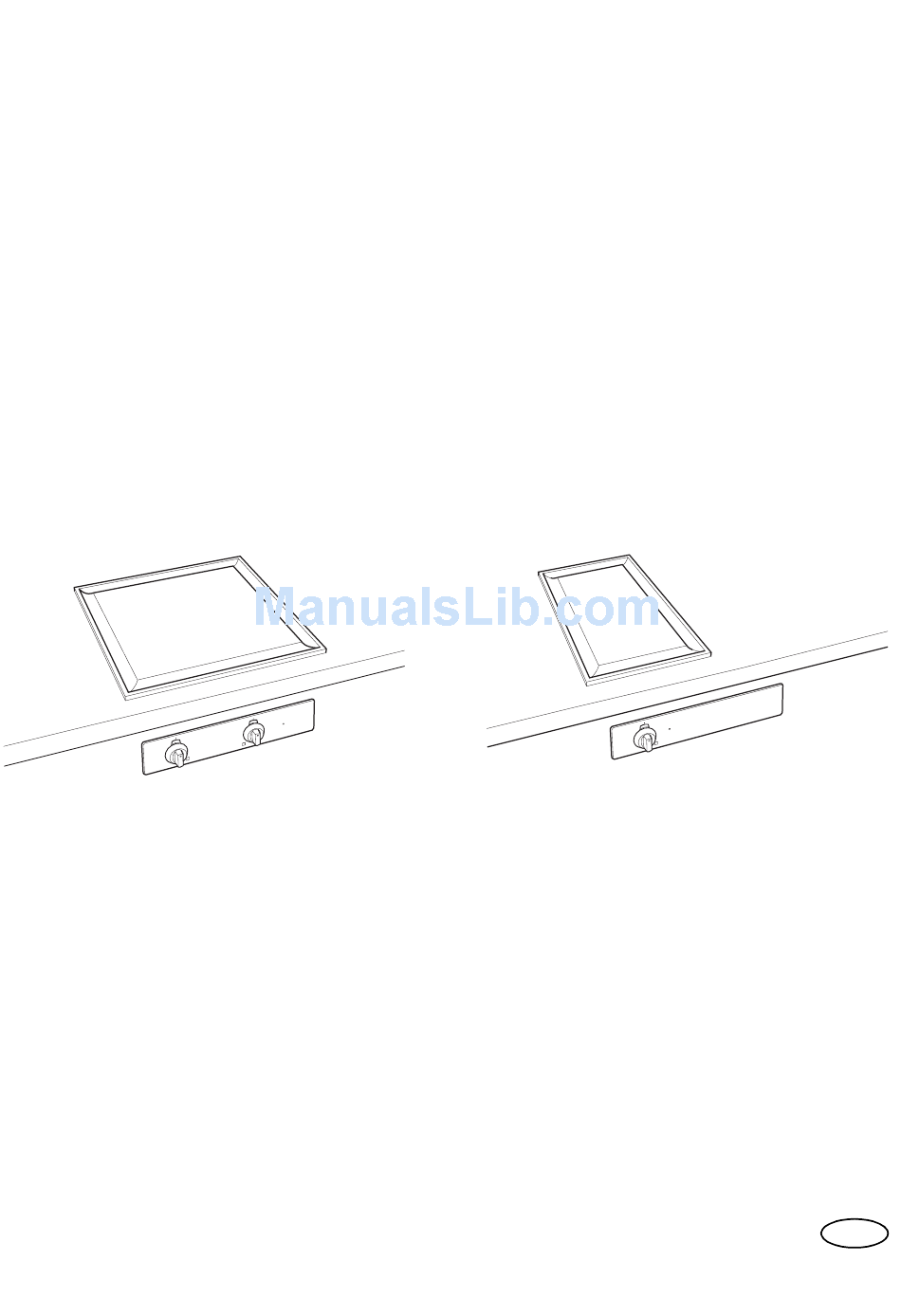

INSTALLATION AND
OPERATING INSTRUCTIONS
Model TY 58 and TY 38
CH
374 3985 03 10/03

Advertisement

loading

  Related Manuals for Electrolux TY58

  Summary of Contents for Electrolux TY58

  • Page 1 INSTALLATION AND OPERATING INSTRUCTIONS Model TY 58 and TY 38 374 3985 03 10/03...
  • Page 2 Dear customer, Please read these operating instructions carefully. Pay particular attention to the section „Safety informa- tion" on the first few pages. Please keep these operat- ing instructions in a safe place for future reference. Pass them on to any new owner of the appliance. The warning triangle and/or signal words (Warning!, Caution!, Danger!) emphasise instructions important for your safety or proper...
  • Page 3: Table Of Contents

    CONTENTS OPERATING INSTALLATION INSTRUCTIONS ..4 INSTRUCTIONS ..14 Safety ........4 Technical data .
  • Page 4: Operating Instructions

    OPERATING INSTRUCTIONS Safety The safety of this appliance complies with accepted • Take care when plugging electric appliances into technical standards and the Appliance Safety Law. mains sockets near the unit. Connecting leads As manufacturers, however, we also believe it is our must not come into contact with the hot grill plate.
  • Page 5: Disposal

    Disposal Disposal of packaging material Information on disposal • The appliance must not be disposed of with • All parts of the packaging can be fully recycled; household rubbish. foil and expanded polyurethane parts are appro- • Information about collection dates or public refuse priately identified.
  • Page 6: Ty 58 Unit Construction

    TY 58 unit construction Grill plate with two heating zones (front half and rear half) Temperature indication lamps (yellow) Operating indication lamp (red) Thermostat for front Thermostat for rear heating zone (with symbol) heating zone (with symbol) TY 38 unit construction Grill plate with one heating zone Temperature indication lamp (yellow)
  • Page 7: Special Accessories

    Special accessories Turning spoon TY WS (spatula) The ergonomic turning spoon serves as a multipurpose tool for turning food or removing cooked remnants. Stainless steel cooking cover TY GG24 (255 x 140) The cooking cover is specially suitable for steaming vegetables, for keeping cooked food warm or heating it up, e.g.
  • Page 8: Before Using For The First Time

    Before using for the first time Initial cleaning Wipe over the control panel with a damp synthetic fibre cloth. Warning: Do not use any caustic, abrasive cleaning agent, which could damage the sur- face. Wipe over the grill plate when cold with a damp cloth or for example with 3M Scotch-Brite Handpads type no.
  • Page 9: Using The Grill Plate

    Using the grill plate The food is prepared (heated) directly on the grill plate with or without fat. It is also possible, however, to cook with pots. When using pots on the grill plate, however, the cook- ing time is considerably longer than on glass-ceramic, gas rings or cast iron plates.
  • Page 10: Application, Tables, Tips

    Application, tables, tips Fat temperatures If fats and oils are used the correct temperature is of The fat temperature is the maximum temperature vital importance. Heating should not be too great for which can be reached before the fat or oil begins to health reasons, since this could produce substances smoke.
  • Page 11 Cooking material Temperature Time/tips (°C) Beef 200–220 Preheat grill plate Beef steak very rare 2 mins., turn after 1 min. rare 4 mins., turn after 2 mins. medium 6 mins., turn after 3 mins. well done 8 mins., turn after 4 mins. without fat the times are increased by around 20 % Hamburger 6–8 mins., turn after 3–4 mins.
  • Page 12: Cleaning And Care

    Cleaning and care Final cleaning of grill plate Cleaning the grill plate between two courses Danger: Danger of injury from burns when cleaning the hot grill plate! Similar to point 2–3 „Final cleaning of grill plate". Danger: Always clean the grill plate in the Cleaning control panel grinding direction (not with circular motions)! Never use abrasive powders or aggressive...
  • Page 13: Service/Customer Support

    SERVICE/CUSTOMER SUPPORT Service Our extensive service and support is available to all Please always specify these data: our customers. – When requesting customer service – When ordering spare-parts or accessories Before you call on the customer service – With technical inquiries Make sure that no operating errors have occurred.
  • Page 14: Installation Instructions

    INSTALLATION INSTRUCTIONS Regulations, standards, Warning! Installation and connection of the new appliance must only be performed by a guidelines certified expert. Please pay attention to these instructions, This appliance satisfies the following standards: since otherwise the warranty becomes • EN 60 335-1 and EN 60 335-2-6 invalid if any damage occurs.
  • Page 15: Safety Instructions For The Installer

    Safety instructions for the Electrical connection installer • Electrical connection must be made by a certified installer. • This appliance corresponds to the type EN 60 • The mains connection to the built-in switchbox 335-2-6 with respect to protection against fire. must be made with the existing connecting cable Only units of this kind may be fitted one-sided to and corresponding to the connection diagram.
  • Page 16: Fitting/Installation In Working Surface: Surface Mounting (Coated, Lined, Inox Or Stone)

    Fitting/installation in working surface: surface mounting (coated, lined, Inox or stone) When fitting in combustible material the NIN 2000, 10.Screw the front panel of the built-in switchbox with section 4.2.2 and the fire protection regulations, in the plastic screws to the front of the switchbox and addition to the directives of the association of can- fit the switch knobs.
  • Page 17 TY 38 Grill plate with built-in switchbox Width of fume exhaust hood 550 mm min. min. 30 16-22 min. 30 1,8 m Connection to socket provided by client 230V Surface mounting TY 58 Grill plate with built-in switchbox Width of fume exhaust hood 550 mm min. min.
  • Page 18: Fitting/Installation: Flush Mounting In Stone Working Surfaces

    Fitting/installation: flush mounting in stone working surfaces When fitting in combustible material the NIN 2000, 11.Clean grill plate and working surface in area of section 4.2.2 and the fire protection regulations, in joint (e.g. with isopropyl alcohol S-150 and fluff- addition to the directives of the association of can- free cloth) and fill the joint with a heat-resistant (at tonal fire insurance companies, must be observed...
  • Page 19 Flush mounting TY 38 Grill plate with built-in switchbox Width of fume exhaust hood 550 mm min. min. 30 16-22 min. 35 1,8 m 230V Connection to socket provided by client Flush mounting TY 58 Grill plate with built-in switchbox Width of fume exhaust hood 550 mm min.
  • Page 20 The Electrolux Group. The world’s No.1 choice. The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of...
