TM 43600 / TM 63600
Teppan Yaki Grill plate
Installation and Operating Instructions

Advertisement

loading

  Related Manuals for Electrolux TM 43600

  Summary of Contents for Electrolux TM 43600

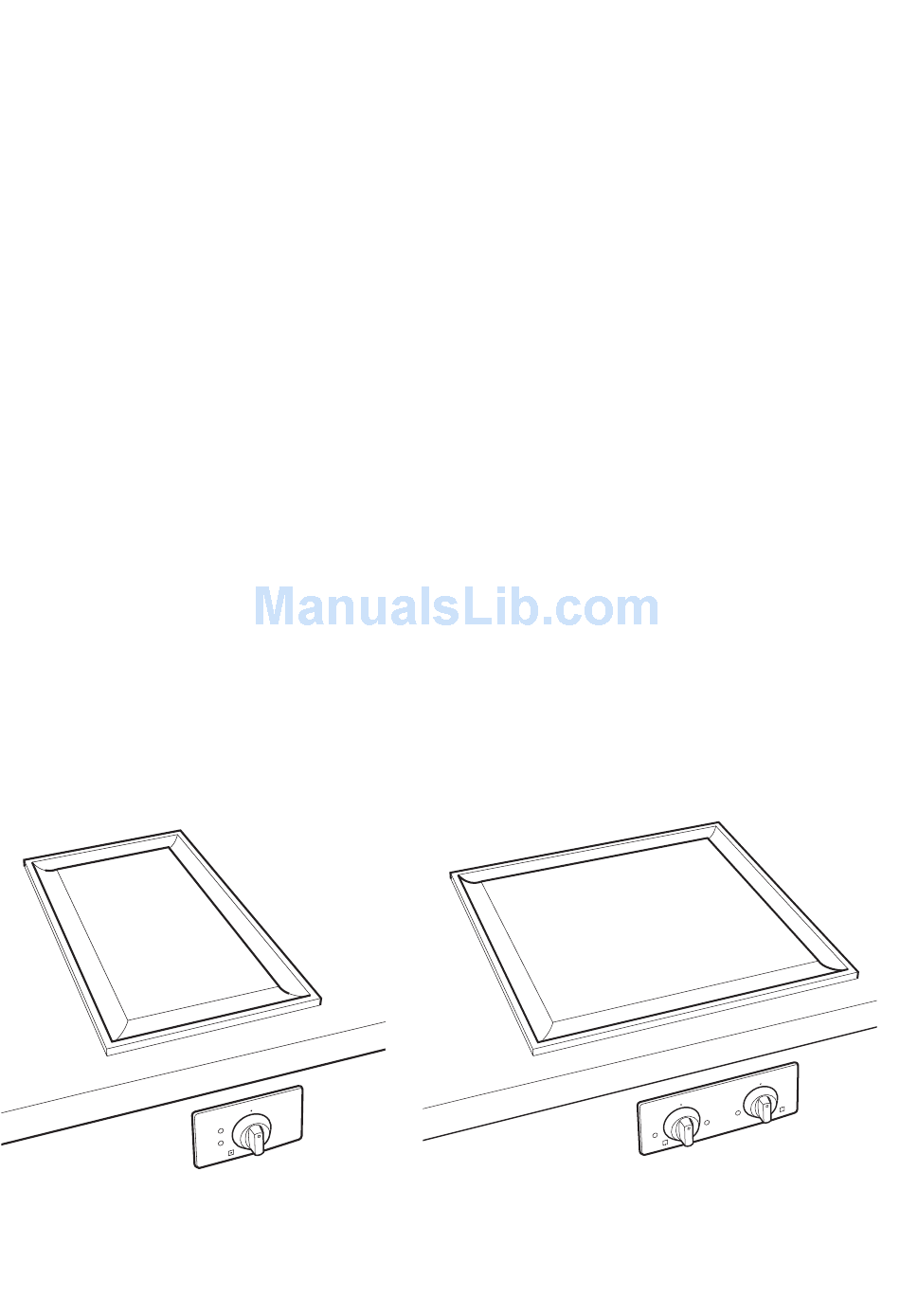

  • Page 1 TM 43600 / TM 63600 Teppan Yaki Grill plate Installation and Operating Instructions...
  • Page 2 Dear Customer, Please read these user instructions carefully and keep them to refer to later. Please pass the user instructions on to any future owner of the appli- ance. The following symbols are used in the text: Safety instructions Warning! Information that affects your personal safety. Important! Information that prevents damage to the appliance.
  • Page 3: Table Of Contents

    TM 43600 unit construction ........
  • Page 4: Operating Instructions

    OPERATING INSTRUCTIONS 1 Safety The safety of this appliance complies with accepted technical standards and the Appliance Safety Law. As manufacturers, however, we also be- lieve it is our responsibility to familiarise you with the following safety instructions. Electrical safety •...
  • Page 5: Disposal

    • Overheated fat and oil catch fire quickly. If food is flambéed, the cooking process should be supervised. • Switch off the grill plate every time after use. Special information for the grill plate Do not place any objects which can be magnetised on the grill plate while in operation.
  • Page 6: Description Of Appliance

    environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed infor- mation about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
  • Page 7: Tm 63600 Unit Construction

    (yellow) Operating indication lamp (red) Thermostat for front Thermostat for rear heating zone (with symbol) heating zone (with symbol) TM 43600 unit construction Grill plate with one heating zone Operating indication lamp (red) Temperature indication lamp (yellow) Thermostat...
  • Page 8: Special Accessories

    Special accessories Stainless steel cooking cover (255 x 140) The cooking cover is specially suitable for steaming vegetables, for keeping cooked food warm or heating it up, e.g. rice, noodles. If roasting is performed under the cover, everything is kept nice and fresh.
  • Page 9: Using The Grill Plate

    Using the grill plate The food is prepared (heated) directly on the grill plate with or without fat. It is also possible, however, to cook with pots. When using pots on the grill plate, however, the cooking time is consi- derably longer than on glass-ceramic, gas rings or cast iron plates.
  • Page 10: Application, Tables, Tips

    3. To switch off turn back to the off po- sition. If more rapid cooling of the grill plate is desired after switching off, this can be performed by placing a pot on it with a large base and containing 2–3 litres cold water.
  • Page 11: Tables

    Tables Temperature Cooking material Time/tips (°C) Fish and crustaceans 170–180 Preheat grill plate Salmon cutlets 8 mins., turn after 4 mins. Giant prawns (without shell) 170 6 mins., turn after 3 mins. Shark steaks, 2.5 cm thick 10 mins., turn after 5 mins. Sole (in butter) 8 mins., turn after 4 mins., light side first Fillets of plaice...
  • Page 12 Temperature Cooking material Time/tips (°C) Lamb 180–200 Preheat grill plate Lamb chop 10 mins., turn after 5 mins. Lamb fillet 10 mins., turn after 5 mins. (it is important to grill the fillets all round) Lamb steak 6–8 mins., turn after 3–4 mins. Poultry 160–180 Preheat grill plate...
  • Page 13: Cleaning And Care

    Cleaning and care Final cleaning of grill plate Warning: Danger of injury from burns when cleaning the hot grill plate! Important: Always clean the grill plate in the grinding direction (not with circular motions)! Never use abrasive powders or aggressive clea- ning agents! 1.
  • Page 14: Service

    SERVICE In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instruc- tions. If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners. In order to be able to assist you quickly, we require the following information: –...
  • Page 15: Installation Instructions

    • Grill heater rear 1500 W Heater voltage 230 V ~ 50 Hz Total consumption 3,0 kW Power supply 230 V TM 43600 Power consumption 2200 W Heater voltage 230 V ~ 50 Hz Total consumption 2,2 kW Power supply...
  • Page 16: Safety Instructions For The Installer

    This appliance complies with the following EU directives • 93/68/EWG CE designation directive • 73/23/EWG dated 19.02.1973 (low voltage directive) • 89/336/EWG dated 03./05.1989 (EMC directive including modificati- on directive 92/31/EWG) Safety instructions for the installer • The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in ac- cordance with the regulations, etc.).
  • Page 17: Rating Plates

    (approx. 2 minutes) in succession at the 100 °C positi- on to check their readiness for operation. Rating plates Versions with two thermostats Model Code TM 63600 PNC 949 480 194 Versions with one thermostat Model Code TM 43600 PNC 949 480 193...
  • Page 18: Fitting/Installation In Working Surface: Surface Mounting

    – TM 63600: insert signal lamp with red wires in the left-hand red lens. – TM 43600: insert signal lamp with red wires in upper red lens. Screw CN-front panel with screws to front of cabinet under switch kn- obs.
  • Page 19 Take the switch spindle(s) of the built-in switchbox from the rear th- rough the 13 mm dia. hole(s), attach white or black switch knobs as re- quired and then secure the built-in switchbox from the rear to the front of the cabinet. For tiled working surfaces the joints must be completely filled with jointing material in the supporting zone for the grill plate.
  • Page 20 Surface mounting TM 43600 Grill plate with built-in switchbox Width of fume exhaust hood 550 mm min. ø12 ø13 ø12 0,75 m min. 25 Connection to socket provided by client 1,8 m 230 V (10 A)
  • Page 21 Surface mounting TM 63600 Grill plate with built-in switchbox Width of fume exhaust hood 550 mm min. ø12 ø12 ø12 ø13 ø13 80 45 45 0,75 m min. 25 Connection to socket provided by client 1,8 m 230 V (16 A)
  • Page 22: Fitting/Installation: Flush Mounting In Stone Working Surfaces

    – TM 63600: insert signal lamp with red wires in the left-hand red lens. – TM 43600: insert signal lamp with red wires in upper red lens. Screw CN-front panel with screws to front of cabinet under switch kn- obs.
  • Page 23 quired and then secure the built-in switchbox from the rear to the front of the cabinet. Clean the working surface thoroughly in the cut-out and in the rebate. The enclosed rubber tape (3x10x2400 mm) must be attached to the cut-out supporting surface (to soften blows and prevent silicone joint sealing compound running under the grill plate under all circumstances when pointing).
  • Page 24 Important: There are capillary tubes in the bunch of conductors bet- ween the built-in switchbox and the grill plate. Do not bend sharply or separate or the appliance will be destroyed! Flush mounting TM 43600 Grill plate with built-in switchbox Width of fume exhaust hood 550 mm min.
  • Page 25 Flush mounting TM 63600 Grill plate with built-in switchbox Width of fume exhaust hood 550 mm min. ø12 ø12 ø12 ø13 ø13 80 45 45 0,75 m min. 25 Connection to socket provided 1,8 m by client 230 V (16 A)
  • Page 28 From the Electrolux Group. The world´s No.1 choice. The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
