TX/RX network link

ALIF units can be either connected directly to each other or via a Gigabit Ethernet network.

For direct links via Ethernet cable, the length of cable should not exceed 100 metres (328

feet). Network cables used for connections may be category 5, 5e, 6 or 7 twisted-pair cable.

ALIF TX units have an autosensing capability on their network interfaces, so for direct point-

to-point connections, no 'crossover' Ethernet cable is required.

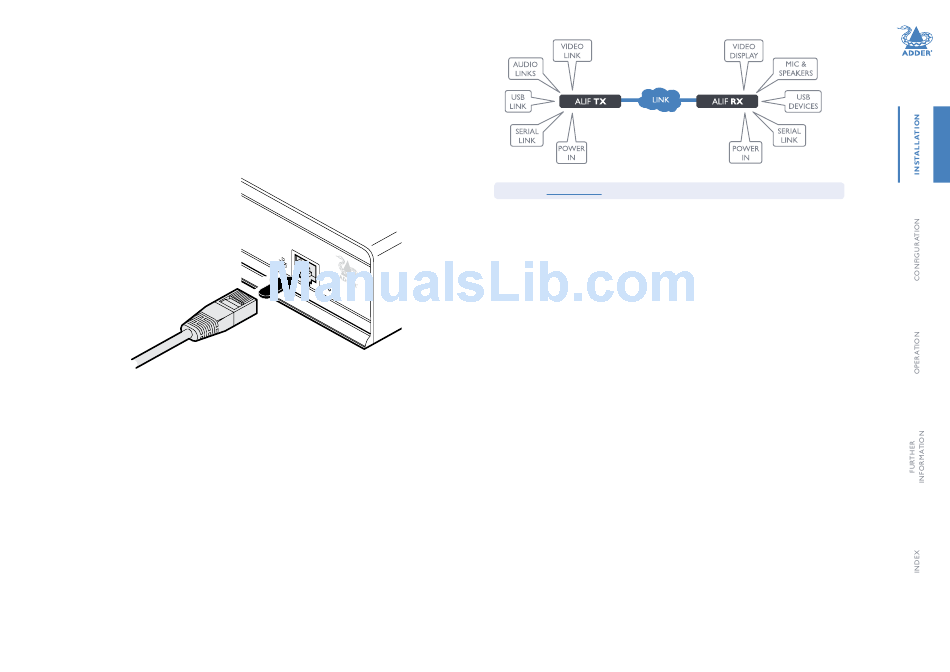

To link ALIF units using the System port

1 Connect a CAT 5, 5e, 6, or 7 cable to the System port socket on the front panel of the

ALIF unit.

CAT 5, 5e, 6, or 7 link either

directly from the other ALIF

unit or from a Gigabit Ethernet

switch

2 Connect the other end of the cable either to the other ALIF unit or to a Gigabit

Ethernet switch, as appropriate.

3 [For connections via a network] repeat steps 1 and 2 for the other ALIF unit.

Please see

w w

w .a

d d

e r .c

o m

Appendix C

for important tips about networking ALIF units.
