3. Install the panel.
PERIODIC MAINTENANCE AND MINOR REPAIR
Checking the front and rear
brake pads

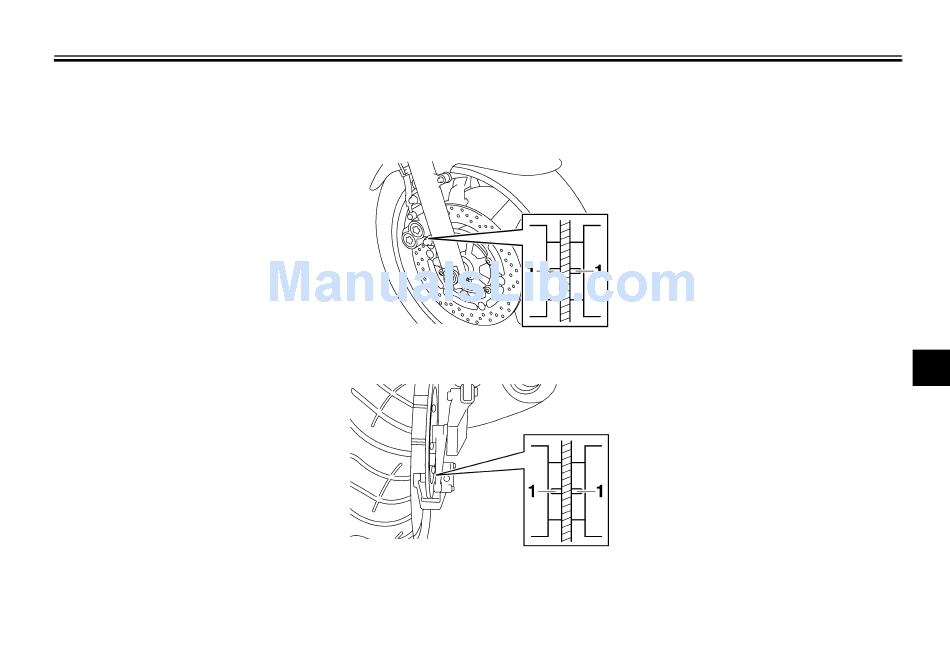

Front brake
1. Brake pad wear indicator groove
Rear brake
1. Brake pad wear indicator groove
6-17
EAU22321 The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart. Each brake pad is
provided with a wear indicator groove,
which allows you to check the brake
pad wear without having to disassem-
ble the brake. To check the brake pad
wear, check the
grooves. If a brake pad has worn to the
point that the wear indicator groove has
almost disappeared, have a Yamaha
dealer replace the brake pads as a set.
wear indicator
6
