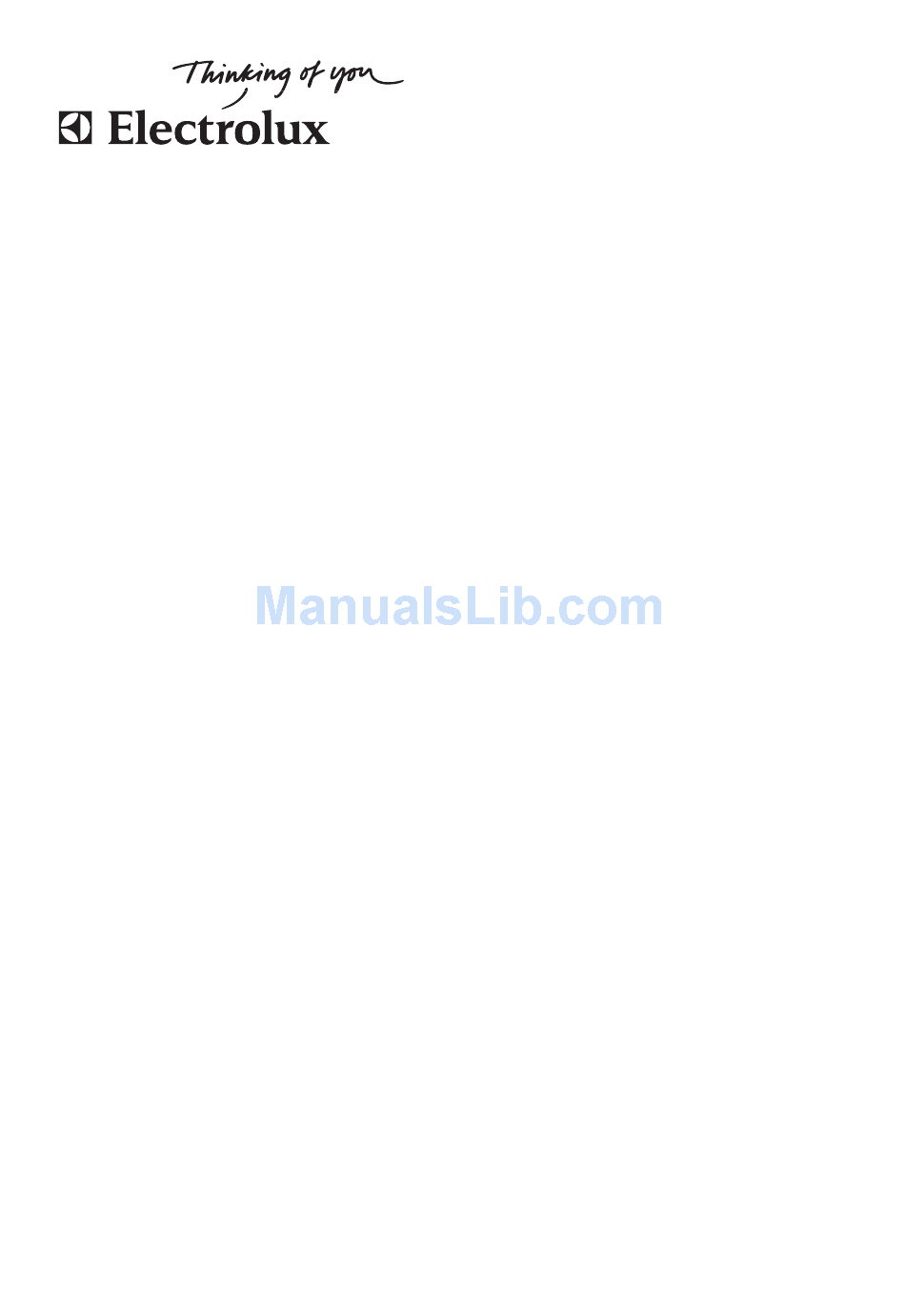

  • Page 1 Built-In Electric Oven EOB65300...
  • Page 2 We were thinking of you when we made this product...
  • Page 3 Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable.

  • Page 4: Table Of Contents

    4 electrolux contents Contents Safety instructions Description of the Appliance Before Using for the first time Using the Oven Uses, Tables and Tips Cleaning and Care Disposal Installation Instructions Guarantee/Customer Service Service The following symbols are used in this user manual: Important information concerning your personal safety and information on how to avoid damaging the appliance.

  • Page 5: Safety Instructions

    5 • Using ingredients containing alcohol in the oven may create an alcohol-air mixture that is easily ignited. In this case, open the door carefully. Do not have embers, sparks or naked Safety instructions flames in the vicinity when opening the door.
  • Page 6 6 electrolux safety instructions How to avoid damage to the appliance • Do not line the oven with aluminium foil and do not place baking trays, pots, etc. on the oven floor, as the heat that builds up will damage the oven enamel.

  • Page 7: Description Of The Appliance

    7 Description of the Appliance General Overview Control panel Door handle Full glass door...

  • Page 8: Control Panel

    8 electrolux description of the appliance Control Panel Oven Power Indicator Oven Power Indicator Temperature / Time Display Temperature / Time Selection Oven Functions Clock function buttons...

  • Page 9: Oven Features

    9 Oven Features Top heat and heating elements Oven lighting Shelf positions Fat Filter Oven lighting Fan heating element Bottom Heat Oven shelf runners, removable Inside of door On the inside of the oven door you will find the numbers of the different oven shelves.

  • Page 10: Oven Accessories

    10 electrolux description of the appliance Oven accessories Oven shelf For cookware, cake tins, roasts and grilled foods. Baking tray For cakes and biscuits. Roasting Pan For baking and roasting or as a pan for collecting fat.

  • Page 11: Before Using For The First Time

    11 Before Using for the first time Setting and changing the time The oven only operates when the time has been set. When the appliance has been connect- ed to the electrical supply or when there...

  • Page 12: Initial Cleaning

    12 electrolux before using for the first time Initial Cleaning Before using the oven for the first time you should clean it thoroughly. Caution: Do not use any caustic or abrasive cleaners. The surface could be damaged. To clean metal fronts use commer- cially available cleaning agents.

  • Page 13: Using The Oven

    13 Using the Oven The oven is equipped with retractable buttons for “Oven functions” and “Tem- perature selection”. To use, press the relevant button. The button then sticks out. Switching the Oven On and Off Oven Power Indicator...
  • Page 14 14 electrolux using the oven Switching the oven on Turn the oven functions dial to the de- sired function. The power indicator light lights up. The temperature display shows the suggested temperature for the oven function selected. The oven starts to heat up.
  • Page 15 15 Cooling fan The fan switches on automatically in order to keep the appliance’s sur- faces cool. When the oven is switched off, the fan continues to run to cool the appliance down, then switches itself off automatically.

  • Page 16: Oven Functions

    16 electrolux using the oven Oven Functions The oven has the following functions: Oven function Application Light Using this function you can light up the oven interior, e.g. for cleaning. Convection with For roasting and baking on up to three levels at the same ring heating time.
  • Page 17 17 Inserting the Oven Shelf, Baking Tray and Roasting Pan Shelf runner safety and anti-tip de- vice As a shelf runner safety device, all insertable components have a small curved indentation at the bottom on the right and left-hand edge.
  • Page 18 18 electrolux using the oven Inserting the oven shelf: Insert the oven shelf so that the feet point downwards. Push the oven shelf between the guide bars of the selected oven level. The high rim around the oven shelf is an additional device to prevent cookware from slipping.
  • Page 19 19 Inserting/Removing the Fat Filter Only use the fat filter when roasting to protect the rear heating elements from fat splashes. Inserting the fat filter Hold the fat filter by the grip and insert the two mounts downwards into the opening on the rear wall of the oven (fan opening).

  • Page 20: Clock Functions

    20 electrolux using the oven Clock Functions Temperature / Time Display Clock function indicators Temperature check Selector Button Change display Cook time To set how long the oven is to be in use. End time To set when the oven is to switch off again.
  • Page 21 21 How to use the clock functions • After a clock function has been se- lected, the corresponding function indicator flashes for about 5 seconds. During this period, the desired times can be set or mod- ified using the dial.
  • Page 22 22 electrolux using the oven Countdown 1. Press the Selection button re- peatedly until the function indicator Countdown flashes. 2. Using the control knob set the desired countdown (max. 99.00minutes). The function indicator Countdown lights up. When 90% of the time set has elapsed, an audible signal sounds.
  • Page 23 23 Cook time 1. Select the oven function and tem- perature. 2. Press the Selection button re- peatedly until the function indicator Cook time flashes. 3. Using the control knob set the desired cooking time. The function indicator Cook time lights up and the oven comes on immediately.
  • Page 24 24 electrolux using the oven End time 1. Select the oven function and tem- perature. 2. Press the Selection button re- peatedly until the End time func- tion indicator flashes. 3. Using the control knob set the desired switch-off time.
  • Page 25 25 Cook time and End time combined Cook time and End time be used simultaneously, if the oven is to be switched on and off auto- matically at a later time. 1. Select the oven function and tem- perature.

  • Page 26: Other Functions

    26 electrolux using the oven Other Functions Switching off the display You can save energy by switching off the clock display. Switching off the clock display 1. Turn the control knob to the right and hold it. 2. In addition press the Selection button until the display goes out.
  • Page 27 27 Ovenís child safety device The oven is fitted with a child safety de- vice. As soon as the child safety device is activated, the oven cannot be switched on. • The child safety device works only for the oven, not for the cooking rings.
  • Page 28 28 electrolux using the oven Oven automatic cut-out If not switched off after a certain time, or if the temperature is not modified, the oven switches off au- tomatically. The last temperature set flashes in the temperature display. The oven switches off when the oven temperature is: 30 - 120°C...

  • Page 29: Mechanical Door Lock

    29 Mechanical door lock When the appliance is delivered the door lock is deactivated. Activating door lock 1. Take hold of the door trim(B) on the upper edge of the door at both sides and press inwards to release the clip seal.
  • Page 30 30 electrolux using the oven On the open side of the door trim (B) there is a guide bar (C). This must be pushed between the outer door panel and the guide corner (D). The clip seal (E) must be snapped in.
  • Page 31 31 Switching off the appliance does not remove the mechanical door lock. Removing door lock 1. Take hold of the door trim(B) on the upper edge of the door at both sides and press inwards to release the clip seal.
  • Page 32 32 electrolux using the oven 4. Take hold of the door trim(B) at each side, position it on the inside edge of the door and push the door trim (B) onto the upper edge of the door On the open side of the door trim(B) there is a guide bar(C).

  • Page 33: Uses, Tables And Tips

    33 Uses, Tables and Tips Baking tins • For Conventional dark metal and non-stick tins are suitable. Baking • For Convection with ring heating element bright metal tins are also Oven function: Convection with ring suitable.
  • Page 34 34 electrolux uses, tables and tips General Instructions • Moist recipes (for example, pizzas, fruit flans, etc.) are baked on one lev- • Insert the tray with the bevel at the front. • Cakes and pastries at different • With Conventional...

  • Page 35: Baking Table

    35 Baking table Baking on one oven level Type of Oven Temperature Time Oven function baking level °C Hr: Mins. Baking in tins Ring cake or brioche Convection with 150-160 0:50-1:10 ring heating element Madeira cake/fruit cakes...
  • Page 36 36 electrolux uses, tables and tips Type of Oven Temperature Time Oven function baking level °C Hr: Mins. Cake with crumble topping Convection with 150-160 0:20-0:40 (dry) ring heating element Buttered almond cake/sugar Conventional 190-210 0:15-0:30 cakes Fruit flans Convection with...
  • Page 37 37 Type of Oven Temperature Time Oven function baking level °C Hr: Mins. Pastries made with egg Convection with 80-100 2:00-2:30 white, meringues ring heating element Macaroons Convection with 100-120 0:30-0:60 ring heating element Biscuits made with yeast...
  • Page 38 38 electrolux uses, tables and tips Baking on more than one oven level Convection Convection with ring with ring heating heating Time Tempera- element element Type of baking Hours: ture in °C Mins. Shelf positions from bottom 2 levels 3 levels...

  • Page 39: Tips On Baking

    39 Tips on Baking Baking results Possible cause Remedy The cake is not browned Wrong oven level Place cake lower enough underneath The cake sinks (becomes Oven temperature too high Use a slightly lower setting...
  • Page 40 40 electrolux uses, tables and tips Table Pizza setting Temperature Time Type of baking Shelf position °C Hr: Mins. Pizza (thin crust) 180 - 200 20 - 30 Pizza (with a lot of topping) 180 - 200 20 - 30...

  • Page 41: Table For Bakes And Gratins

    41 Table for Bakes and Gratins Tempera- Shelf Time Dish Oven function ture position Hr: Mins. °C Pasta bake Conventional 180-200 0:45-1:00 Lasagne Conventional 180-200 0:25-0:40 Convection with Vegetables au gratin ring heating 160-170 0:15-0:30...
  • Page 42 42 electrolux uses, tables and tips Roasting Oven function: Conventional Convection grilling Roasting dishes • Any heat-resistant ovenware is suita- ble to use for roasting (please read the manufacturer's instructions). • Large roasting joints can be roasted directly in the roasting tray or on the oven shelf with the roasting tray placed below it.

  • Page 43: Roasting Table

    43 Roasting table Tem- Time Shelf pera- Type of meat Quantity Ovenfunction Hours position ture mins. °C Beef Convention- Pot roast 1-1.5 kg 200-250 2:00-2:30 per cm. of Roast beef or fillet thickness per cm.
  • Page 44 44 electrolux uses, tables and tips Tem- Time Shelf pera- Type of meat Quantity Ovenfunction Hours position ture mins. °C Convention- Haunch of venison 1.5-2 kg 200-210 1:30-2:15 Poultry 200-250g Convection Poultry portions 200-220 0:35-0:50 each grilling 400-500g Convection Half chicken...

  • Page 45: Grill Sizes

    45 Grill Sizes Oven function: Grill or Dual grill with maximum temperature setting The empty oven should always be pre-heated with the grill functions for 5 minutes. • For grilling, place the shelf in the recommended shelf position.
  • Page 46 46 electrolux uses, tables and tips Drying Oven function: Convection with ring heating element • Use oven shelves covered with greaseproof paper or baking parch- ment. • You get a better result if you switch the oven off halfway through the dry- ing time, open the door and leave the oven to cool down overnight.

  • Page 47: Making Preserves

    47 Making Preserves Oven function: Bottom heat • The jars should all be filled to the same level and clamped shut. • For preserving, use only commercial- ly available preserve jars of the same • Place the jars on the baking tray in size.

  • Page 48: Cleaning And Care

    48 electrolux cleaning and care Cleaning and Care Clean stubborn dirt with a special oven cleaner. Warning: First switch off the appli- ance and let it cool down before carrying out any cleaning. Important: If using an oven spray, please follow the manufacturer's in- Warning: For safety reasons, do not structions exactly.

  • Page 49: Shelf Support Rails

    49 Shelf Support Rails The shelf support rails on the left and right hand sides of the oven can be re- moved for cleaning the side walls. Removing the shelf support rails First pull the front of the rail away from the oven wall (1) and then unhitch at the back (2).

  • Page 50: Oven Shelf Runner

    50 electrolux cleaning and care Oven Shelf Runner The shelf support rails on the left and right hand sides of the oven can be re- moved for cleaning the side walls. Removing the shelf support rails First pull the front of the rail away from the oven wall and then unhitch at the back.
  • Page 51 51 Cleaning the Oven Shelf Runner Clean oven shelf runners with hot water and washing up liquid. Important: The oven shelf runners cannot be cleaned in the dishwash- Important: On no account grease telescopic runners.

  • Page 52: Oven Lighting

    52 electrolux cleaning and care Oven Lighting Warning: Risk of electric shock! Pri- or to changing the oven light bulb: – Switch off the oven! – Disconnect from the electricity sup- ply. Place a cloth on the oven floor to...
  • Page 53 53 Changing side oven light/Cleaning glass cover 1. Remove the left shelf support rail. 2. Remove the glass cover with the aid of a narrow, blunt implement (e.g., teaspoon) and clean it. 3. If necessary: replace bulb with a 25 watt, 230 V, 300 °C heat-resistant, oven...

  • Page 54: Oven Ceiling

    54 electrolux cleaning and care Oven Ceiling The upper heating element can be fold- ed down to make it easier to clean the oven ceiling. Folding down the heating element Warning: Only fold down the heating element when the oven is switched...
  • Page 55 55 Repositioning the heating element 1. Move the heating element back up towards the oven ceiling. 2. Pull the heating element forwards against the spring pressure and guide it over the oven support lug. 3. Settle it onto the support.

  • Page 56: Oven Door

    56 electrolux cleaning and care Oven door For easier cleaning of the oven interior the oven door of your appliance can be taken off its hinges. Removing the oven door from its hinges 1. Open the oven door as far as it will 2.
  • Page 57 57 Hanging the oven door back on its hinges 1. From the handle side take hold of the oven door with a hand on each side and hold at an angle of approx. 45°. Position the recesses on the bottom of the oven door on the hinges on the oven.

  • Page 58: Oven Door Glass

    58 electrolux cleaning and care Oven door glass The oven door is fitted with three panels of glass mounted one behind the other.The in- ner panels can be removed for cleaning. Important! Rough handling, espe- cially around the edges of the front panel, can cause the glass to break.
  • Page 59 59 4. Take hold of the door trim(B) on the upper edge of the door at both sides and press inwards to release the clip seal. Then remove the door trim by pulling it upwards. 5. Take hold of the door glass panels on...
  • Page 60 60 electrolux cleaning and care 2. Take hold of the door trim (B) at each side, position it on the inside edge of the door and plug the door trim (B) into the upper edge of the door On the open side of the door trim (B) there is a guide bar (C).
  • Page 61 61 3. Open the oven door as far as it will 4. Fold up theclamping levers (A) on both door hinges back into their original positions 5. Close the oven door.

  • Page 62: Disposal

    62 electrolux disposal Disposal Packaging material The packaging materials are environ- mentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materi- als in the appropriate container at the community waste disposal facilities.

  • Page 63: Installation Instructions

    63 Installation Instructions Attention: The new appliance may only be installed and connected by a registered expert. Please comply with this. If you do not, any damage resulting is not covered by the warranty. Safety information for the installer •...
  • Page 64 64 electrolux installation instructions...
  • Page 65 65...
  • Page 66 66 electrolux installation instructions...
  • Page 67 67...

  • Page 68: Guarantee/Customer Service

    68 electrolux guarantee/customer service Guarantee/Customer Service European Guarantee This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for the period specified in the appli- ance guarantee or otherwise by law. If you move...
  • Page 69 Industriestrasse 10, CH-5506 Mägenwil Svizzera Electrolux Ljubljana d.o.o. Slovenija +38 61 24 25 731 Gerbièeva 98, 1000 Ljubljana Electrolux Slovakia s.r.o., Electrolux Domáce Slovensko +421 2 43 33 43 22 spotrebièe SK, Seberíniho 1, 821 03 Bratislava Suomi www.electrolux.fi Electrolux Service, S:t Göransgatan 143,...

  • Page 70: Service

    70 electrolux service Service In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the op- erating instructions (section “What to do if…”). If you were not able to remedy the prob-...
  • Page 72 822 720 514-M-191007-0 2...
