INSTALLATION
INSTRUCTIONS
Honda Dealer: Please give a copy of these instructions to your customer.

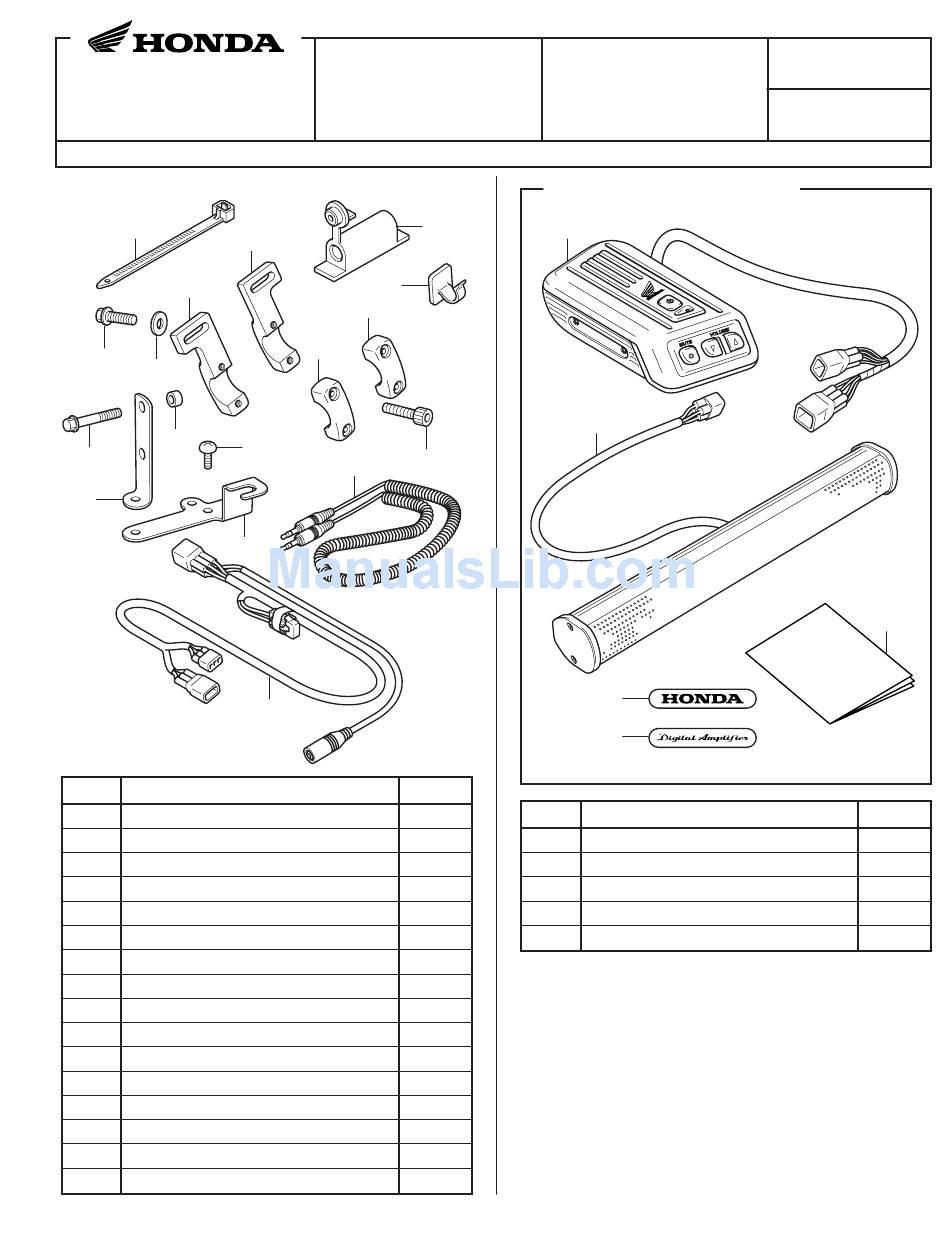

PARTS LIST

(11)
(2)
(5)
(6)
(9)
(8)
(16)
No.
Description
(1)
Right speaker holder
(2)
Left speaker holder
(3)
Speaker holder
(4)
6 mm socket bolt
(5)
6 mm SH flange bolt (short)
(6)
Washer
(7)
Bracket
(8)
6 mm SH flange bolt (long)
(9)
Collar
(10)
5 mm screw
(11)
Wire tie
(12)
Clip
(13)
Jack holder
(14)
Sub cord
(15)
Audio harness
(16)
Sub bracket
© 2006 American Honda Motor Co., Inc - All Rights Reserved.
Accessory
AUDIO ATTACHMENT KIT
P/N 08B08-MCH-100
(1)
(12)
(3)
(3)
(10)
(14)
(7)
(15)
VTX1800F/N/R/S/T
DIGITAL AUDIO SYSTEM (Sold separately)
P/N 08A08-9H1-000
(13)
(17)
(21)
(4)
(18)
(19)
Qty
1
No.
1
(17)
2
(18)
4
(19)
2
(20)
2
(21)
1
2
2
2
5
3
1
1
1
1
08B08-MCH-1000-91
Application
'03~ VTX1800C
Description
Amplifier unit
Honda emblem
Digital amplifier emblem
Owner's Manual
Speaker
Publications No.
MII 11775
Issue Date
October 2006
(20)
Qty
1
1
1
1
1
1 of 10
