1. Stop all SCSI bus data transfers.
2. Align the D-shaped cable connector with D-shaped I/O module connector
1
3. Firmly seat the cable connector on the module connector.
4. Finger tighten the thumbscrews to fully seat the connector.
5. Restart data transfers over the SCSI bus.

Applying Power

There are no disk enclosure power control switches. Connecting an AC power cord from a
power source to the power supply is all that is required. When a power supply has an AC
input, it develops and distributes DC voltages within the enclosure.

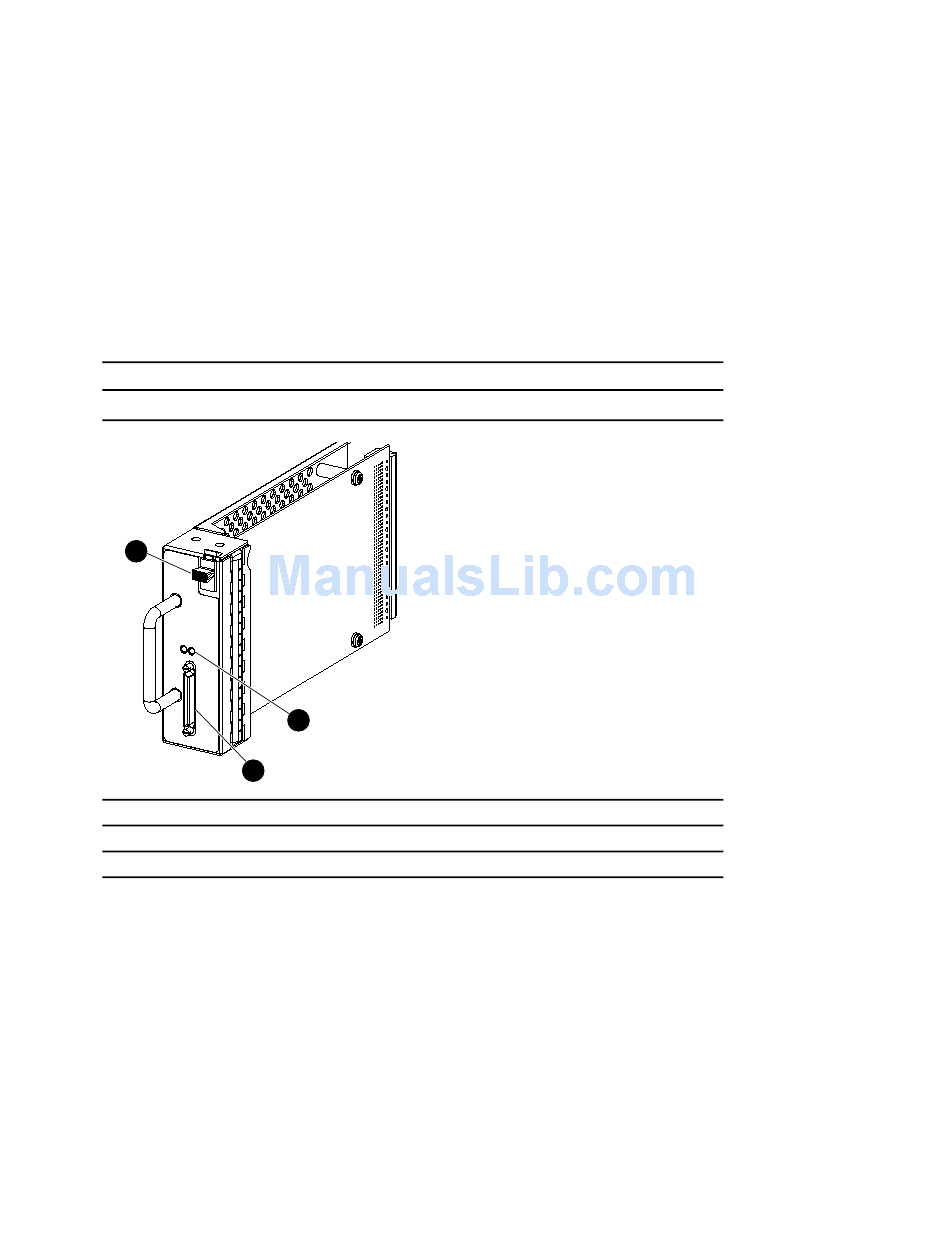

Table 2–3 Installing SCSI Bus Cables
2
3
CXO7062A
