Summary of Contents for Jura IMPRESSA F505

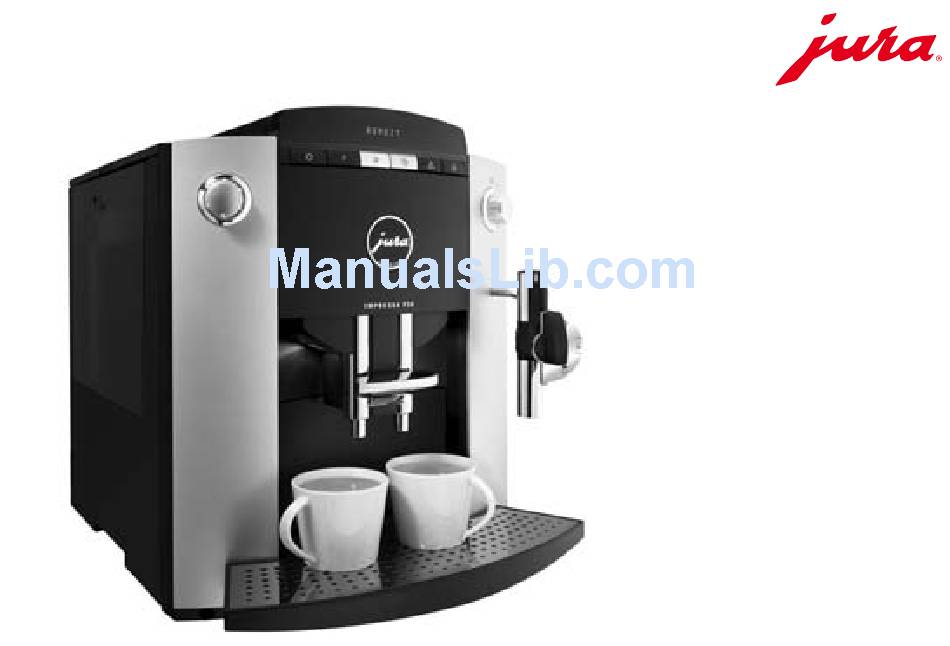

- Page 1 IMPRESSA F50 / F5 / F505 Instructions for use...
- Page 2 Legend: = Note = Important = Tip DISPLAY: serves as information. DISPLAY: please follow the instructions shown.
- Page 3 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 Fig. 10 Fig. 11 Fig. 12 Fig. 13 Fig. 18 Fig. 19 Fig. 14 Fig. 15 Fig. 16 Fig.17 Temp. max. Fig. 20 Temp.
- Page 4 Control elements 1. Rotary Switch 2. Illuminated ring 3. ON/OFF key 4. Programming key 5. Draw-off key 1 cup Rotary Switch 6. Draw-off key 2 cups 7. Maintenance key 8. Steam pre-selection key 9. Display dialog system 10. Water tank with carrying handle 11.
-
Page 5: Table Of Contents
Contents 1. Safety information..........page 6 15. Programming ..........page 15 Warning ..........page 6 15.1 Programming the filter ......page 16 15.2 Programming the water hardness ....page 16 Precautions ..........page 6 2. Preparing the IMPRESSA........page 6 15.3 Programming the aroma ROBUST Check supply voltage ......page 6 or STANDARD ........page 16 Check electrical fuse ......page 6 15.4 Programming the temperature ....page 16... -
Page 6: Safety Information
You will also find useful tips on operation and maintenance When disconnecting the mains cable never pull on the mains of your IMPRESSA on the website at www.jura.com. cable or the machine itself. Don’t forget to check out the Knowledge Builder our ani- The coffee machine is connected to mains supply via a mains mated operating instructions. -
Page 7: Fill Water Tank
(e.g.during holidays) time and to avoid damage, please note that the grinding gear of your JURA coffee machine is not suitable for coffee beans 3. First use which were treated, during or after roasting, with additives (e.g. -
Page 8: Adjusting The Water Hardness
The displayed information means the following: FILLING SYSTEM LEVEL –– Water hardness function switched off CLOSE TAP LEVEL 1 German water hardness degree 1 to 7° French Water hardness degree 1.79 – 12.53° Close the steam / hot water draw-off tap (14). LEVEL 2 German water hardness degree 8 to 15°... -
Page 9: Installation Of Claris Plus Filter Cartridges
Close the steam/hot water draw-off tap (14), now the IM- 5. Installation of CLARIS plus filter cartridges PRESSA will heat up to coffee temperature. If the CLARIS plus filter cartridge is installed properly, de- HEATING scaling of the coffee machine is no longer required. For READY more information on the CLARIS plus filter cartridge refer to brochure «CLARIS plus. -
Page 10: Rinsing The Impressa
Open the steam / hot water draw-off tap (14). Turn the Rotary Switch (1) until the required water quantity is displayed. HEATING For example, 120 ML READY 8. Drawing off 1 cup of coffee 6. Rinsing the IMPRESSA You have the possibility of increasing the strength of the When the IMPRESSA is switched off and has cooled down, coffee at any time in the grinding process by pressing the a rinsing operation is started when the machine is switched... -
Page 11: Drawing Off 2 Cups Of Coffee
10. Drawing off pre-ground coffee For Example: 160 ML For Example: MILD Never use instant coffee or quick-coffee. We recommend that you always use powder from fresh coffee beans or, pre- Your product is being prepared. ground, vacuum-packed coffee. Never fill in more than 2 READY portions of powder. -
Page 12: Drawing Off Hot Water
Close the steam / hot water draw-off tap (14). For Example: 210 ML READY POWDER Your product is being prepared. Before CLOSE TAP water may still escape the system. READY 11. Drawing off hot water 12. Drawing off steam If you do not change the settings using the Rotary Switch The Steam function is used for preparing milk foam and hot (1), the water quantity last adjusted will be drawn off auto- milk as well as for the Professional Cappuccino Frother (15) -
Page 13: Dispensing Cappuccino With The Professional Cappuccino Frother
Steam dispensing can be stopped at any time by closing the design of your IMPRESSA. steam/hot water draw-off valve (13). All original JURA accessories are available from stockists. 13. Dispensing Cappuccino with the Turn the selector lever on the Professional Cappuccino Frother to Professional Cappuccino Frother the Milk Foam position (Fig. -
Page 14: Dispensing Hot Milk With The Professional Cappuccino Frother
The illuminated ring (2) is active. 13.1 Dispensing Hot Milk with the Professional Cappuccino Frother You can adjust the steam dispensing time individually by turning the Rotary Switch (1) until the required SEC are displayed on Turn the selector lever on the Professional Cappuccino the screen. -
Page 15: Switching Off The Impressa
(8) again to set the machine in readiness for the sional Cappuccino Frother. steam function. The JURA Auto-Cappuccino Cleaner is available from To draw off steam, open the steam/hot water draw-off valve stockists. (Fig. 13). Place a container under the Professional Cappuccino Frother Draw off steam until the container with the fresh water is empty. -
Page 16: Programming The Filter
¼ Time Turn the Rotary Switch (1) until Aroma is displayed. ¼ Automatic switch-on time AROMA ¼ Automatic switch-off time Press the Rotary Switch (1). ¼ Draw-offs ¼ Language ROBUST ¼ Display Turn the Rotary Switch (1) until the following message is dis- played: Programming key STANDARD... -
Page 17: Programming The Time
If the machine is disconnected from power supply, the time Press the programming key (4) to quit the programming must be programmed again. mode or select the next programming item using the Rotary Switch (1). READY 15.6 Programming the automatic switch-on time You must programme the time (Chapter 15.5) if you want to 15.5 Programming the time use the automatic switch-on function. -
Page 18: Programming The Automatic Switch-Off Time
15.7 Programming the automatic switch-off time READY Press programming key (4) until You can programme your coffee machine such that it will FILTER appears. switch off automatically after a certain time. You can pro- gramme the switch-off time in a range between 0.5 and 9 The illuminated ring (2) is active. -
Page 19: Programming Display 24H/Am/Pm
LANGUAGE Press the programming key (4) to quit the programming mode or select the next programming item using the Rotary Now press the Rotary Switch (1) to start programming the item Switch (1). LANGUAGE. READY Turn the Rotary Switch (1) until the required language is dis- played. -
Page 20: Emptying The Coffee Grounds Container
16.4 Fill coffee beans READY FILL The water tank should be rinsed daily and refilled with fresh BEANS water. Only fill in fresh, cold water. Never fill in milk, Refill beans as described in Chapter 2.4. mineral water or other liquids. The message REFILL BEANS will disappear after you draw 16.2 Emptying the coffee grounds container off your next cup of coffee. -
Page 21: Impressa Decalcify
15 min. ring milk. To ensure that the Professional Cappuccino Frother functions Original JURA cleaning tablets which are specially designed perfectly, you should clean it daily if you have prepared milk. for the cleaning programm of your IMPRESSA are available The water tank should be rinsed daily and refilled with fresh at your authorized dealer. -
Page 22: De-Scaling
Your IMPRESSA features an integrated de-scaling program. The EMPTY de-scaling operation will take some 40 min. TRAY Original JURA de-scaling tablets wich are specially designed Empty the tray for the de-scaling program of your IMPRESSA are available at your authorized dealer. Please note that machine defects or... -
Page 23: Disposal
NO – OPEN TRAY Insert the tray again. Open the steam / hot water draw-off tap (14) (Fig. 13). SOLVENT DE-SCALING IN TANK CLOSE TAP After you have closed the steam / hot water draw off tap (14), Completely dissolve the content of one blister (3 tablets) in a jug the following message is displayed containing 0.5 litres of water, and fill the mixture in the water tank. -
Page 24: Tips For Perfect Coffee
20. Tips for perfect coffee Height-adjustable coffee spout (17) You can adjust the height of the coffee spout to the size of your cups (Fig. 3) Grinding degree Refer to Chapter 2.5 «Adjusting the grinding gear». Preheating cups You can preheat the cups using hot water or steam. The smaller the coffee you want to draw off, the more important preheating is. -
Page 25: Messages
Start de-scaling programme (Chapter 18) READY FILTER Filter used up Replace filter (Chapter 5.2) FAULT General fault - switch off - disconnect from mains supply - Connect IMPRESSA to power supply - Switch on IMPRESSA - Have IMPRESSA checked by JURA Service... -
Page 26: Problems
Pre-ground coffee too fine Use a coarser pre-ground coffee High-frequency, electromagnetic interference may influence the display. Drawing off coffee is possible at any time. If the messages or problems still persist, please contact your local authorized dealer or JURA Elektroapparate AG. -
Page 27: Legal Information
Any Pump pressure: static, max. 15 bar obligations to be fulfilled by JURA Elektroapparate AG are stipu- Water tank: 1.9 litres lated in the corresponding purchase contract, which also contains the full and solely applicable warranty stipulations. - Page 28 JURA Elektroapparate AG – Kaffeeweltstrasse 10 – CH-4626 Niederbuchsiten Phone +41 62 389 82 09 – Fax +41 62 389 81 37 – E-mail export@jura.com – www.jura.com...
