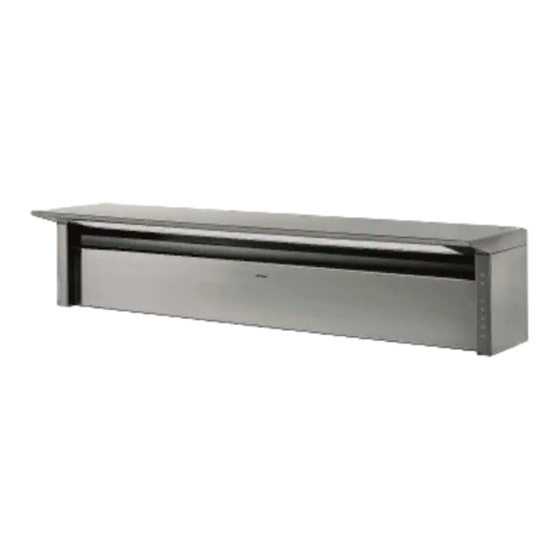

- Page 1 Gaggenau Use and Care Manual Backsplash Ventilation AT 400-700/730...
-
Page 3: Table Of Contents
Table of Contents Important Safety Instructions Fire Safety Child Safety Cleaning Safety Combination with a Gas Cooktop Proper Installation and Maintenance Operating for the First Time Maintenance Features of your New Appliance Accessories Special Accessories Accessories for Installation Operating Principle Operation Ventilation Intensive Mode... -
Page 4: Important Safety Instructions
Important Safety Instructions Fire Safety WARNING – TO REDUCE THE RISK OF Read and save these instructions. INJURY TO PERSONS IN THE EVENT OF A GREASE FIRE, OBSERVE THE FOLLOWING: Always have a working smoke detector near the kitchen. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. -
Page 5: Child Safety
Important Safety Instructions Child Safety Proper Installation and Maintenance When children become old enough to use the Have the installer show you the location of the appliance, it is the legal responsibility of the circuit breaker or fuse. Mark it for easy reference. parents or legal guardians to ensure that they are This appliance must be properly installed and instructed in safe practices by qualified persons. -
Page 6: Operating For The First Time
Keep packaging elements and plastic appliance still does not work, please contact your bags away from children. Gaggenau dealer who will provide you with the The appliance must be installed and connected by address and telephone number of your nearest an authorized specialist before operation. -
Page 7: Features Of Your New Appliance
Features of your New Appliance Combination of AT 400-730 with three Gaggenau Vario 400 series appliances cover light air inlet control panel Control Panel grease filter saturation display light delay shut off intensive mode ventilation level 3 ventilation level 2... -
Page 8: Accessories
Accessories Special Accessories You can order the following special accessories: • AA 409-100: Activated carbon filter and grease fine filter for AT 400-700 • AA 409-130: Activated carbon filter and grease fine filter for AT 400-730 • AA 400-200: Glass cover, frosted, 41 ˝... -
Page 9: Operating Principle
Operating Principle The backsplash ventilation is an effective air recirculation system, which extracts the vapors directly behind the cooktop towards the rear. The centrifugal grease filters separate the greasy components from the extracted air. The grease is collected in the trays. The grease fine filter absorbs any remaining grease particles. -
Page 10: Operation
Operation When pressed, all function selection keys are backlit in green, except 0 (“Motor off”). Ventilation Three fan speeds and one intensive speed are available. You set the fan speed required for each respective cooking process by pressing the function selector keys 1, 2, 3 or Int. Intensive Mode The Int key for the intensive level should be pressed when browning and frying in an open pan. -
Page 11: Special Functions
Special Functions Setting the Intensive Mode Duration You can select an intensive level running time of 3, 5 or 10 minutes by simultaneously pressing the Int key and the 1, 2 or 3 key. When delivered, the appliance is set to five minutes, i.e. the combination of the Int key and the key 2. -
Page 12: Cleaning And Care
Cleaning and Care Cleaning the Housing Clean the stainless steel surface of the ventilator housing with mild detergent solution or a non- scouring stainless steel cleaner. Only wipe in the direction of the brushed surface. To finish, apply some stainless steel care agent with a soft cloth. Do not use aggressive, abrasive or caustic cleaning agents. -
Page 13: Cleaning The Grease Filters
Cleaning the Grease Filters The grease filter saturation display F flashes after an operating time of 10 hours to indicate that you should clean the grease filters. Depending on the cooking habits it may be necessary to clean the grease filters at shorter intervals (for example if kitchen smells appear when the ventilation is switched off). -
Page 14: Replacing The Activated Carbon Filter
Replacing the Activated Carbon Filter The activated carbon filter in the fan housing (lower part of the appliance) eliminates smells from the extracted air. For hygienic reasons, change the activated carbon filter together with the grease fine filter at least every six months or when kitchen smells appear. -
Page 15: Lamp Replacement
Lamp Replacement Wait until the appliance has cooled down before replacing lamp. Disconnect the appliance from the power supply (switch off fuse). Remove loose objects from the cover. Lift off cover. First turn florescent lamp in the socket, then lift off fluorescent lamp. - Page 16 Gaggenau 780 Dedham Street Canton, MA 02021 Telephone: 877.4GAGGENAU www.gaggenau-usa.com Gaggenau Hausgeräte GmbH Carl-Wery-Straße 34 81739 München Germany www.gaggenau.com...
