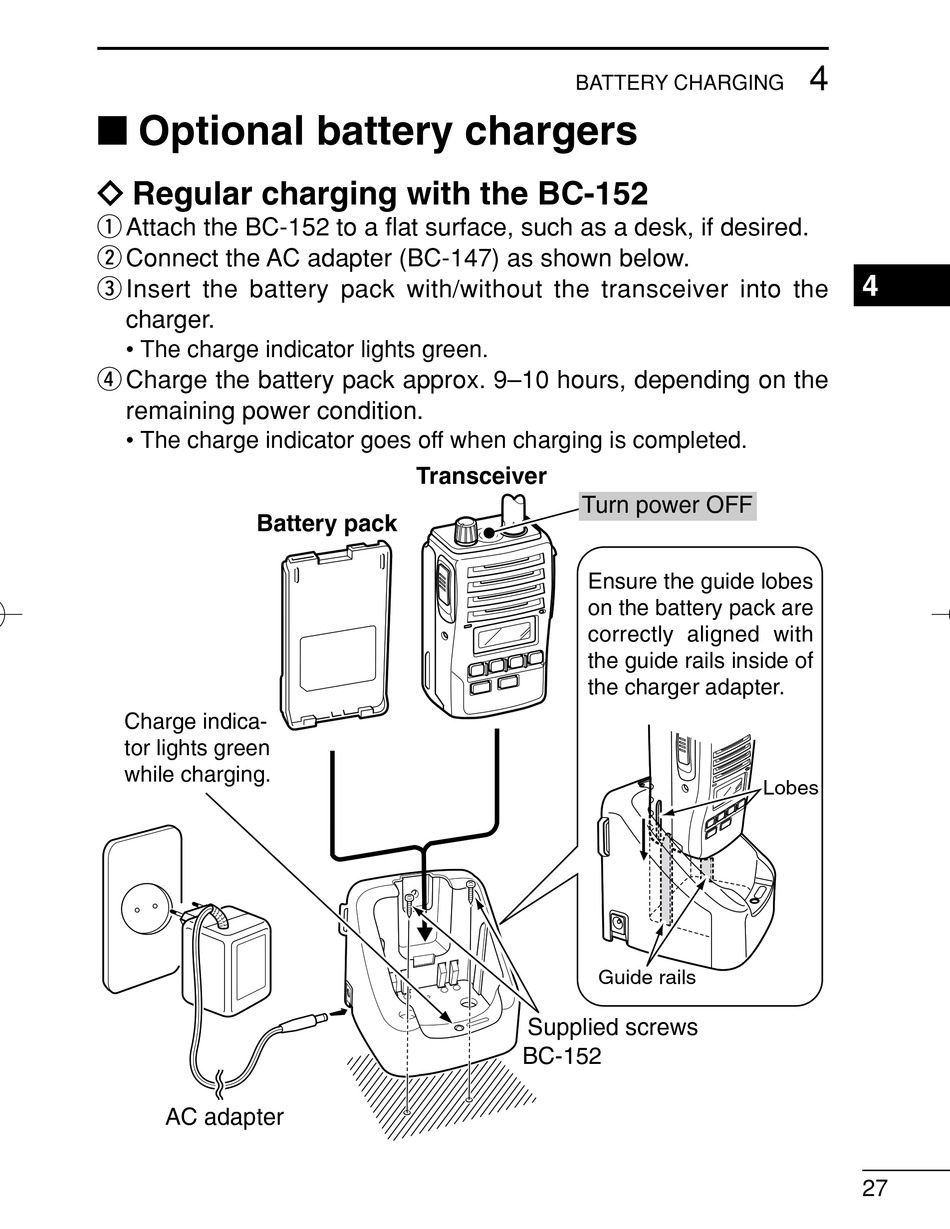

I Optional battery chargers
ï Regular charging with the BC-152
q Attach the BC-152 to a flat surface, such as a desk, if desired.
w Connect the AC adapter (BC-147) as shown below.
e Insert the battery pack with/without the transceiver into the
charger.
• The charge indicator lights green.
r Charge the battery pack approx. 9–10 hours, depending on the
remaining power condition.
• The charge indicator goes off when charging is completed.
Battery pack
Charge indica-
tor lights green
while charging.
AC adapter
BATTERY CHARGING
Transceiver
Supplied screws
BC-152
Turn power OFF
Ensure the guide lobes
on the battery pack are
correctly aligned with
the guide rails inside of
the charger adapter.
Guide rails
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Lobes
15
16
17
18
19
20
27
