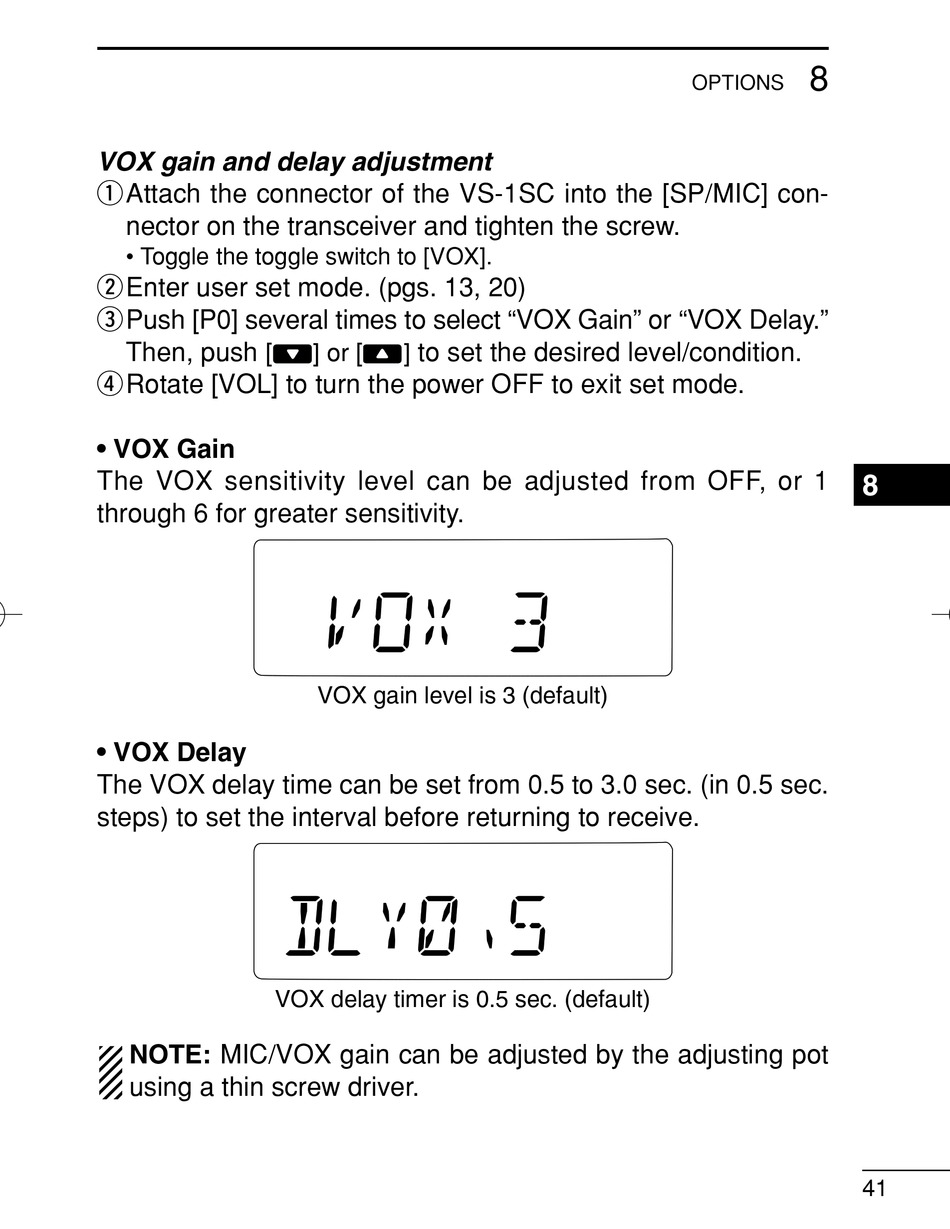

VOX gain and delay adjustment
qAttach the connector of the VS-1SC into the [SP/MIC] con-
nector on the transceiver and tighten the screw.
• Toggle the toggle switch to [VOX].
wEnter user set mode. (pgs. 13, 20)
ePush [P0] several times to select "VOX Gain" or "VOX Delay."
Then, push
rRotate [VOL] to turn the power OFF to exit set mode.
• VOX Gain
The VOX sensitivity level can be adjusted from OFF, or 1
through 6 for greater sensitivity.
• VOX Delay
The VOX delay time can be set from 0.5 to 3.0 sec. (in 0.5 sec.
steps) to set the interval before returning to receive.
NOTE: MIC/VOX gain can be adjusted by the adjusting pot
using a thin screw driver.
to set the desired level/condition.
[ ] or [ ]
VOX gain level is 3 (default)
VOX delay timer is 0.5 sec. (default)
