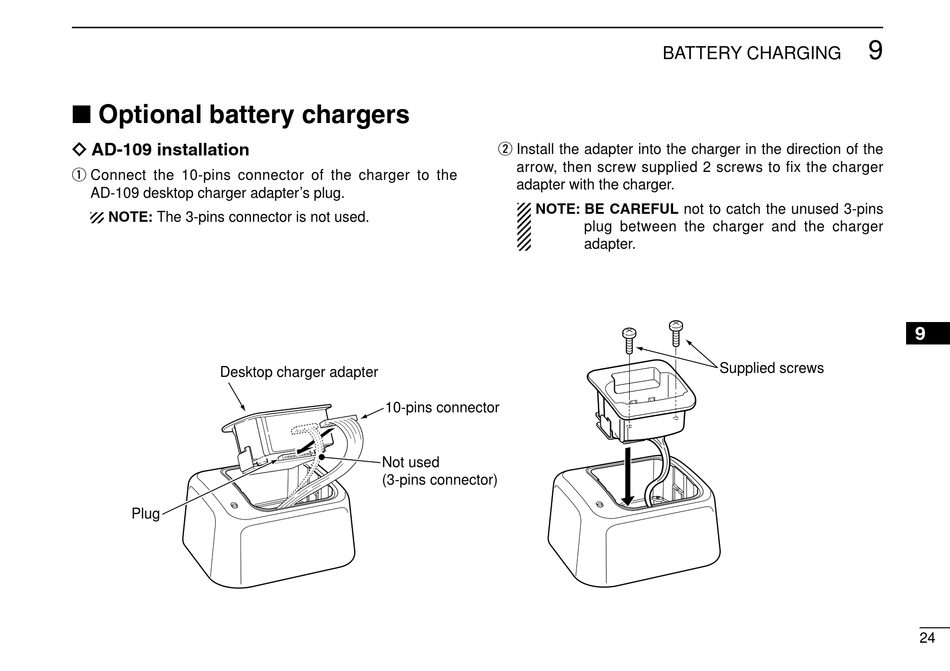

I Optional battery chargers
ï AD-109 installation
q Connect the 10-pins connector of the charger to the
AD-109 desktop charger adapter's plug.
NOTE: The 3-pins connector is not used.
Desktop charger adapter
Plug
w Install the adapter into the charger in the direction of the
arrow, then screw supplied 2 screws to fix the charger
adapter with the charger.
NOTE: BE CAREFUL not to catch the unused 3-pins
10-pins connector
Not used
(3-pins connector)
BATTERY CHARGING
plug between the charger and the charger
adapter.
Supplied screws
9
9
24
