Da-Lite Tensioned large advantage deluxe electrol Specification

S
UGGESTED SPECIFICATIONS:
Advantage Deluxe screen shall have two motors, one to operate door and one to operate screen. Door motor electrically operated 120 volt
®
(60 Hz) not more than 1.2 amp. Shall have motor mounted inside the roller, to be three wire with ground, quick reversal type, oiled for life,
with automatic thermal overload cutout, integral gears, capacitor and an electric brake to prevent coasting. To have pre-set but adjustable
limit switches to automatically stop fabric door in the "down" position. The door will lift to the closed position where a micro switch shall
cut off the electrical current to the door motor. The roller to be of 1.6" diameter aluminum. Screen motor is electrically operated 120 volt (60
Hz) not more than 2.4 amp. Shall have motor mounted inside the roller, to be three wire with ground quick reversal type, oiled for life, with
automatic thermal overload cutout, integral gears, capacitor and an electric brake to prevent coasting. To have pre-set but adjustable limit
switches to automatically stop picture surface in the "up" and "down" positions. The fabric roller to be of 4½" diameter (5¾" if 270" diagonal,
275" diagonal, or 298" diagonal) metal. Screen fabric to be seamless, flame retardant and mildew resistant vinyl, with black masking borders
standard. Each side of the fabric to have tab guide cable system to maintain even lateral tension and hold surface flat. Custom slat bar with
added weight maintains vertical tension on the screen surface. The ends of the slat to be protected by heavy duty plastic caps enclosing a
preset adjustable mechanism for screen tensioning. Case shall be a white powder coated extruded aluminum. Bottom of case to be self-
trimming with a built-in flange around the bottom of the case. A section of the bottom of the case shall be a retractable aluminum door
that opens and closes automatically with the lowering and raising of the picture surface. The balance of the bottom of the case shall be a
second hinged aluminum door with manual opening to provide access. Hinges shall be mounted in a concealed way. Junction box shall be
internally integrated into the housing making it possible to install the housing and wire to the building's electrical system during construction.
The junction box shall contain a quick connect connector that is mounted in the housing for easy plug-in connection to the motorized fabric
and roller assembly. The motorized fabric and roller assembly to be installed in the case at the factory or at a later time at the job site. To
be complete with integrated low voltage control unit and three position control switch with cover plate. Suitable for use in environmental
air space in accordance with section 300-22 (c) of the National Electric Code, and sections 2-128, 12-010 (3) and 12-100 of the Canadian
Electrical Code, part 1, CSA C22.1. Screen to be listed by Underwriters' Laboratories.
All viewing surfaces will be seamless.
All viewing surfaces are standard with black backing except Da-Tex
Viewing Area
H x W Cm
126" x 168" 320 x 427
132" x 176" 335 x 447
144" x 192" 366 x 488
162" x 216" 411 x 549
Viewing Area
H x W Cm
108" x 192" 274 x 488
121" x 216" 307 x 549
135" x 240" 343 x 610
146" x 260" 371 x 660
Viewing Area
H x W Cm
110" x 176" 279 x 447
120" x 192" 305 x 488
Viewing Area
H x W
10'6" x 14' 320 x 427
14' x 14' 427 x 427
12' x 16' 366 x 488
All screens standard with 12" black drop at top, except 270" diagonal, which has 2".
Extra drop may alter case dimensions. Contact Da-Lite for details.
Overall case length dimensions ±¼" (6mm).
Detail dimensional drawings, wiring diagrams and installation instructions available upon request.
Specifications subject to change without notice.
Custom formats and sizes available upon request.

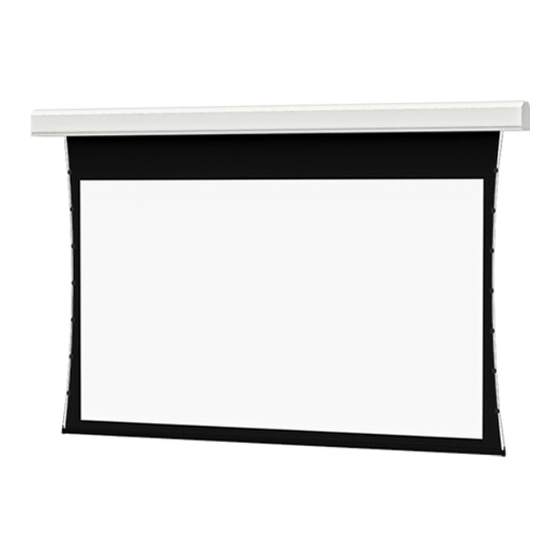

Tensioned LARGe AdvAnTAGe
deLuxe eLecTRoL
Automatic Electric Projection Screen Model
SPECIFICATION DATA
projection screen(s),
VIDEO (NTSC 4:3) FORMAT DIMENSIONS
Nominal Diagonal
In. Cm
210" 533
220" 559
240" 610
270" 686
HDTV (16:9) FORMAT DIMENSIONS
Nominal Diagonal
In. Cm
220" 559
247" 627
275" 699
298" 757
WIDE (16:10) FORMAT DIMENSIONS
Nominal Diagonal
In. Cm
208" 528
226" 574
SQUARE FORMAT DIMENSIONS
Overall Length of Case (does not include flange)
Cm In.
199¼"
205¾"
225¾"
®
(H) x
and Dual Vision.
®
Overall Length of Case (does not include flange)
In.
199¼"
208¼"
225¾"
251¼"
Overall Length of Case (does not include flange)
In.
220¾"
246 ⁄ "
1
2
272 ⁄ "
1
2
294¼"
Overall Length of Case (does not include flange)
In.
205"
222 ⁄ "
1
4
Cm
506
523
573
DA-LITE SCREEN COMPANy LLC
®
3100 North Detroit Street
Post Office Box 137
Warsaw, Indiana 46581-0137
P 800-622-3737 / 574-267-8101
F 877-325-4832 / 574-267-7804
www.da-lite.com
e-mail: info@da-lite.com
( W ) . T h e
Approx. Ship. Wt.
Cm Lbs.
506 628
529 655
573 708
638 781
Approx. Ship. Wt.
Cm Lbs.
561 688
627 764
693 841
747 870
Approx. Ship. Wt.
Cm Lbs.
521 691
565 729
Approx. Ship. Wt.
Lbs.
628 284.9
655 297.1
708 321.1
Te n s i o n e d
Kg
284.9
297.1
321.1
354.3
Kg
312.1
346.5
381.5
394.6
Kg
313.4
330.7
Kg
