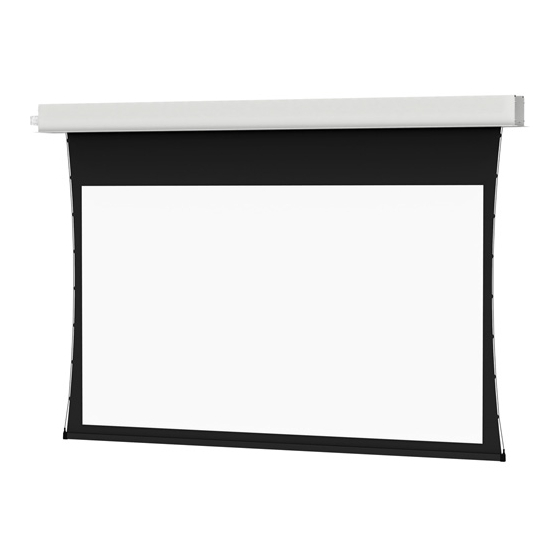

Da-Lite TENSIONED ADVANTAGE ELECTROL Instruction Book
Hide thumbs
Also See for TENSIONED ADVANTAGE ELECTROL:
- Instruction book (12 pages) ,
- Installer's manual (2 pages) ,
- Instruction book (8 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Da-Lite TENSIONED ADVANTAGE ELECTROL
Summary of Contents for Da-Lite TENSIONED ADVANTAGE ELECTROL
- Page 1 The Da-Lite Difference. DA-LITE SCREEN COMPANY, INC. Instruction Book for 3100 North Detroit Street Post Office Box 137 tensIoned AdvAntAge® electrol® Warsaw, Indiana 46581-0137 Phone: 574-267-8101 800-622-3737 Fax: 574-267-7804 Toll Free Fax: 877-325-4832 www.da-lite.com e-mail: info@da-lite.com...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using your video equipment, basic safety precautions should always be followed, including the following: 1. R ead and understand all instructions before using. 2. P osition the cord so that it will not be tripped over, pulled, or contact hot surfaces. 3. If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance should be used. Cords rated for less amperage than the appliance may overheat. 4. To reduce the risk of electric shock, do not disassemble this appliance. Contact an authorized service dealer when repair work is required. Incorrect reassembly can cause electric shock when the appliance is used subsequently. 5. The use of an accessory attachment not recommended by the manufacturer may cause a risk of fire, electric shock, or injury to persons. SAVE THESE INSTRUCTIONS PRE-INSTALLATION 1. C arefully unpack case from shipping carton. DO NOT unpack fabric and roller assembly yet. 2. M ake sure to recheck measurement of case for proper installation clearance. 3. Remove any protective foam or tape from case. CASE INSTALLATION 1. R emove 2 screws to open junction box. 2. Hang case and attach to support structure with threaded rod. See suggested methods of installation on page 5. - Page 3 ADVANTAGE ELECTROL INSTALLATION ® ® 6-1/16" 6-7/16" VARIABLE POSITION 7-3/4" MOUNTING BRACKET 8" MOTOR END AUDIENCE SIDE 6-1/16" 3/8" THREADED ROD (NOT INCLUDED) ATTACHED TO MOUNTING BRACKET ELECTRICAL JUNCTION BOX 6-3/8" FINISHED CEILING SELF-TRIMMING FLANGE 7-3/4" SEE DETAIL A 3.41" 3/8"...
- Page 4 TENSIONED ADVANTAGE ELECTROL INSTALLATION FOR 120V SCREENS ® ® 120V WIRING DIAGRAM FOR STANDARD WALL SWITCH JUNCTION BOX LOCATED IN WHITE LEFT ENDCAP RED MOTOR BLACK GREEN NOTE: A SINGLE SWITCH CANNOT BE USED TO OPERATE MORE THAN ONE SCREEN. CONTACT THE FACTORY FOR FURTHER INFORMATION. AC (COMMON) SPDT SWITCH WITH CENTER OFF BLACK AC HOT 120VAC 60HZ 1 AMP BLACK/YELLOW DOWN THIS SWITCH CAN NOT FIGURE 3 BE USED WITH LVC. RJ-22 JACK 120V WIRING DIAGRAM WITH RJ-22 OUTPUT...
-
Page 5: Important Note
TENSIONED ADVANTAGE ELECTROL INSTALLATION FOR 120V SCREENS ® ® RJ-14 PIN-OUTS RJ-22 PIN-OUTS 120V WIRING DIAGRAM (TAB IS FACING UP) (TAB IS FACING UP) WITH OPTIONAL BUILT-IN +12V BLUE BUS (RP DATA) WHITE BUS (RP DATA) YELLOW LOW VOLTAGE CONTROL RQ DATA GREEN RQ DATA... -
Page 6: Wall Switch
240V WIRING DIAGRAM WITH OPTIONAL BUILT-IN VIDEO PROJECTOR INTERFACE GREEN/YELLOW (GROUND) BROWN (DOWN) BROWN (HOT) BLUE (COMMON) BLUE (COMMON) BLACK (UP) 240VOLT AC/ 50HZ 240 VOLT WIRING DIAGRAM FOR STANDARD POWER SOURCE WALL SWITCH: GREEN/YELLOW (GROUND) Da-Lite offers two styles of 240 volt wall switches for standard operation. Please see wiring diagram included in wall switch box included with screen. BLACK WHITE FRONT OF BACK OF WALL WALL SWITCH SWITCH STOP DOWN BLACK 5/12 VOLT SCREEN... - Page 7 SCREEN ADJUSTMENT FOR 120V SCREENS WITHOUT BUILT-IN LOW VOLTAGE CONTROL Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly adjusted at Da-Lite. Should it be necessary to adjust for more or less drop of picture, proceed in the following manner: Remove two screws to remove access door. NOTE: Use a screw driver or 5/32" Allen wrench to make adjustments. MORE SCREEN DROP 1. Place operating switch in “down” position. 2. W hen the screen stops, turn the white “down” limit knob (Fig.1) one turn counterclockwise. Test by raising picture surface approximately two feet, then lower again. Repeat until desired picture surface position is attained. LESS SCREEN DROP 1. R aise picture surface approximately two feet above desired level. MOTOR POWER CONNECTOR 2. P lace operating switch in “off” MOTOR position.
-
Page 8: Stop Button
SCREEN ADJUSTMENT FOR 120V SCREENS WITH A BUILT-IN LOW VOLTAGE CONTROL OR VPI 1. Locate the wall switch and remove the cover plate from the 3-button wall switch and remove the switch from the junction box. 2. Locate the two tactile buttons on the back of the switch. They are square silver with black round buttons. See Figure 4 (VPI) or Figure 5 (LVC) for diagram. 3. To adjust the down limit switch, press and hold the down tactile button until the LED on back of switch turns solid red. This will put the motor in limit set mode. Turn the wall switch over and use the down button on front of switch. Press and hold until the desired travel position is reached. If you travel to far down you can press the up to move the screen upward. If you press and let go of either up or down button the motor will do a small jog in that direction for finer adjustment of screen. Once desired position is reached turn switch over press and hold down tactile button until the LED on back of switch blinks red twice. The down limit is now set. 4. To adjust the up limit switch, press and hold the up tactile button until the LED on back of switch turns solid green. This will put the motor in limit set mode. Turn the wall switch over and use the up button on front of switch. Press and hold until the desired travel position is reached. If you travel to far up you can press the down to move the screen downward. If you press and let go of either up or down button the motor will do a small jog in that direction for finer adjustment of screen. Once desired position is reached turn switch over press and hold up tactile button until the LED on back of switch blinks green twice. The up limit is now set. 5. To test limit switch setting, press and release the up or down button on the wall switch to operate the screen. 6. Replace switch and cover plate on the wall. IMPORTANT NOTE: The wall switch is REQUIRED to make any limit switch adjustments, EVEN if a third party control system is used. Therefore, it is advised to wire the switch or provide a 3-conductor connection that is accessible. -
Page 9: Troubleshooting
TROUBLESHOOTING SYMPTOM CAUSE SOLUTION 1. S creen will not operate. (a) I ncorrect line voltage. (a) V erify 115-125V (or 220-240V). If insufficient voltage, rewire Motor does not hum. incoming electric line. (b) B lown fuse. (b) R eplace fuse. (c) Tripped circuit breaker. (c) Reset circuit breaker. (d) N o power to operating switch (d) Check above. Tighten all loose or junction. wire connections. Correct any improper connections. “Down”... - Page 12 EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE. In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137 , Warsaw, IN 46581-0137 , (574) 267-8101, (800) 622-3737 . IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DA-LITE SHALL NOT BE BOUND BY THIS WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH DA-LITE’S WRITTEN INSTRUCTIONS. Keep your sales receipt to prove the date of purchase and your original ownership.
