GENERAL
An optional remote-mounted Start-Stop panel is avail-
able. This panel will permit the generator to be started
and stopped from some convenient remote location in
the recreational vehicle.
REMOTE PLUG-IN RECEPTACLE
A plug-in receptacle (Figure 2.24) is provided on the
generator set, near the DC power wires. Use this
receptacle to connect an optional remote-mounted
start/stop panel to the generator. Installation of such a
panel will permit you to start and stop the generator
engine from any convenient location inside the vehi-
cle.
WIRE #18
WIRE #14
(STOP)
(ENGINE RUN
SIGNAL)

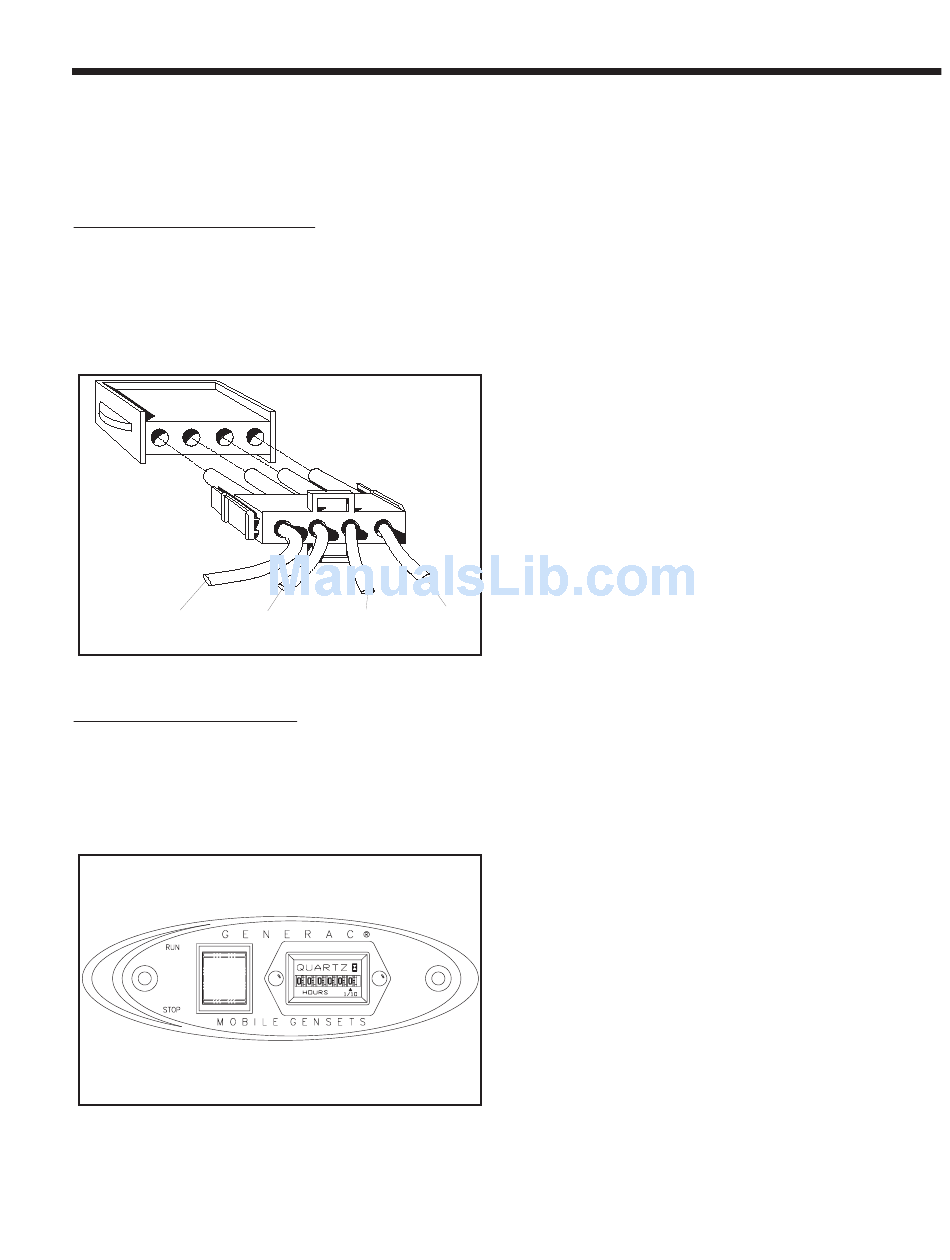

Figure 1. Remote Panel Plug-In Receptacle
REMOTE START/STOP PANEL
A remote mounted Start/Stop panel (Figure 2.25) is
available that allows the user to start and stop the
generator engine conveniently from inside the vehicle.
The remote panel includes a Start/Stop switch,
hourmeter, generator run lamp and a wire harness.
Figure 2. Optional Remote Panel
(Models 004057 and 004184)
WIRE #17 WIRE #10
(CRANK)
(GROUND)
OPTIONAL REMOTE PANEL
The remote panels mount a rocker type start/stop
switch, a "Generator Run" advisory lamp and an
hourmeter. The hourmeter should be used in conjunc-
tion with the maintenance operations found in Part I of
this manual.
• Model 004057 includes the remote panel and a 10
foot long, 4 wire harness.
• Model 004184 includes the remote panel and a 30
foot long, 4 wire harness.
Section 6.6
Page 6.6-1
