HUSKY LINERS 4713 Installation

Hummer h2 spare tire cover

Thank you for the purchase of your new Hummer H2 spare tire cover. Please inspect your package contents before

beginning installation. Shown below is a list of installation hardware, faceplate, base plate and quantities:

Latch (3)

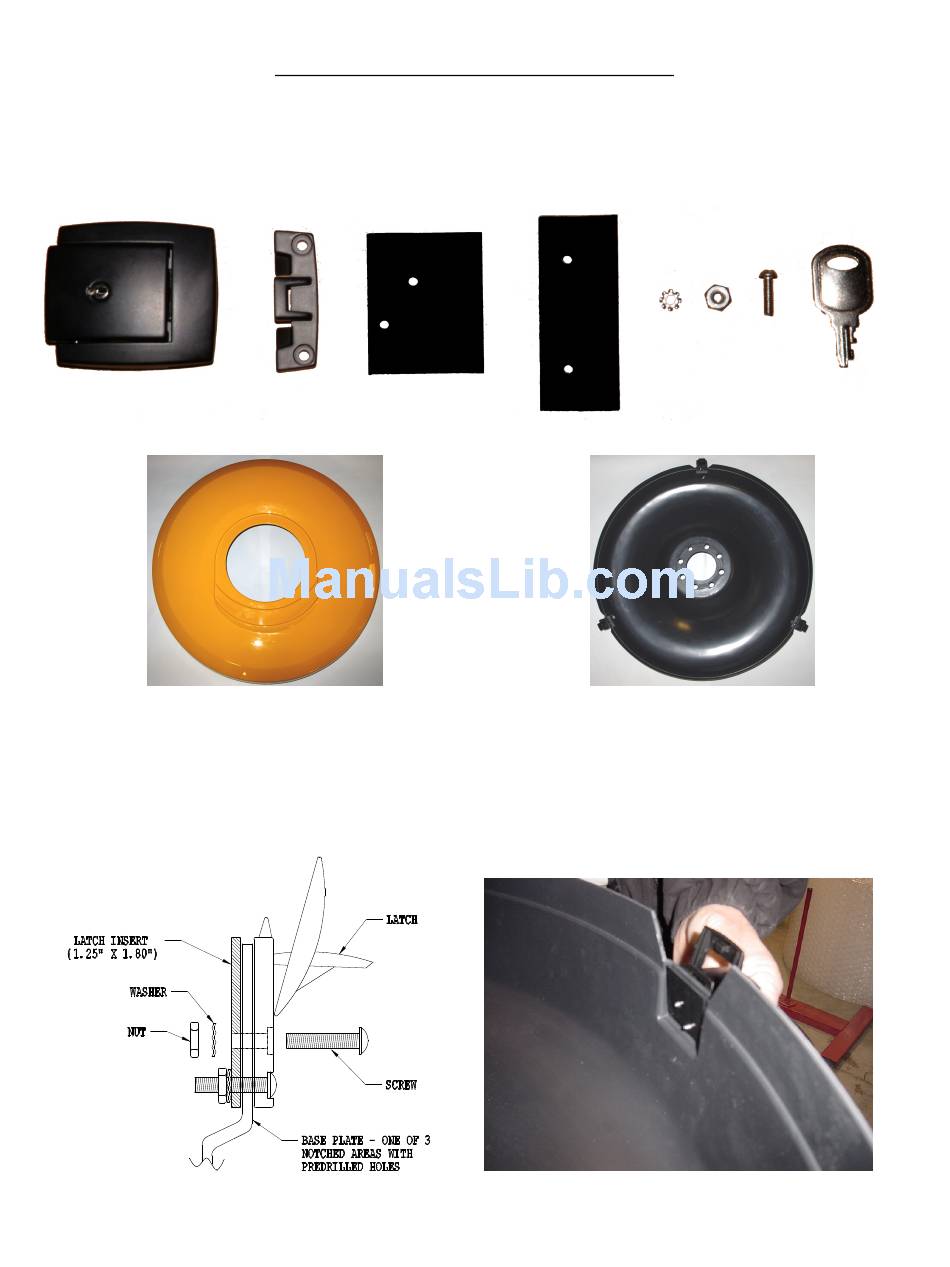

1. Install latch insert and latch to the spare tire base plate with screw, through the front side of an open latch, into

the predrilled holes on the base plate, and finally through the latch insert (textured side against base plate).

Fasten with a washer and nut using a flat head screwdriver and 5/16" wrench (fig 1). Repeat this installation on

each of the 3 notched and predrilled locations on the tire base plate (fig 2).

Hummer H2 Spare Tire Cover Installation

Insert (3)

Catch (3)

Faceplate (1)

fig 1

Latch

Catch

Insert (3)

Nut

(12)

Washer

Screw

(12)

Base Plate (1)

fig 2

H2 2 pc plastic cover instr

Key (1)
