HUSKY LINERS 5847 Installation Instructions

FORD F250 / F350 SUPER DUTY
WITH FENDER FLARES
Install Paint Protection Film before mud guards (see other side)
Please read instructions thoroughly before installation.
Tools Required

1/8" Drill Bit / Drill (optional)

Short #2 Phillips Screwdriver

7/32 Socket / Driver
Turn the front wheels all the way to the left or right for mud guard installation. However, it may be necessary
NOTE:
to remove the wheels depending on the tools being used for installation.
Determine which mudguard you have by locating the part number molded in the mounting flange
(5847 LH 5847 RH).
Clean and degrease the mud guard location area on the fender before installation.
1.
2. Remove existing fasteners from location B and C.
3. Peel red protective cover from the 3M adhesive on the mudguard.
4. Attach mud guard to front fender with factory fasteners at location B and C, check fit and make sure mud guard is
parallel to ground before tightening. Be sure to press firmly on the area with the 3M adhesive tape to make sure
adhesive is set.
5. Install the spring clip over the mudguard and the fender lip between the raised tick marks at location A.
OPTIONAL FASTENER INSTALLATION
6. Using the mud guard as a template mark and drill 1/8" holes at location A
Install #10 SEM screw through the mudguard and into the flare / sheet metal
7.
FRONT MUD GUARD INSTALLATION INSTRUCTIONS
Package Contents


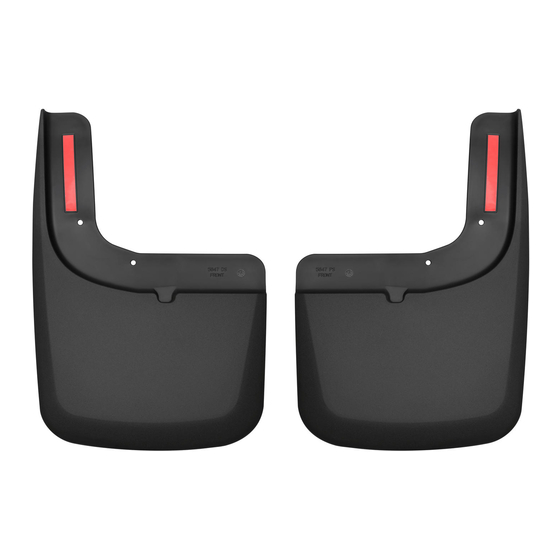

Driver & Passenger Side Front Mud Guard

#10 SEM Screw (qty. 2)

Paint Protection Film (1 set)

Spring Clip (Qty 2)

Instruction Sheet
5847
PART NO.
5847 Front Instructions (2 SIDED DOC)F.docx
Rev: 0
