HUSKY LINERS 5600 Installation Instructions

94-01 DODGE RAM FRONT MUD GUARDS
INSTALLATION INSTRUCTIONS
Please read instructions thoroughly before installation.
Tools Required:
1/8" & 1/4" drill bits / Drill
Center punch / Hammer
Short Phillips screwdriver or drill attachment
Marking utensil (fine tip marker, grease pencil, etc.)
NOTE: Turn the front wheels all the way to the left or right for mud guard installation. However, it may be necessary
to remove the wheels depending on the tools being used for installation.
1. Clean and degrease the mud guard location area on the fender before installation.
2. Using the mud guard as a template, position and mark hole location B with a marking utensil. Make sure the mud guard fits flush against
the front fender and is parallel to the ground (figure 1).
3. Center punch and drill 1/8" hole at location B.
4. Attach mud guard to front panel with #10 screw, check fit and alignment. Adjust accordingly.
5. Center punch and drill 1/8" holes at locations A, C and D using the mud guard as a template.
6. Install #10 screws at locations A, C and D, check fit and tighten.
7. Using mud guard as a template, drill a 1/4" hole at location E.
8. Install plastic fastener at location E attaching the mud guard to the fender liner.
PAINTING INSTRUCTIONS
1. Clean mud guard with a soap and water solution to remove dirt and other contaminates.
2. Sand painting surface with 320 grit sand paper.
3. Apply a coating of flexible primer-adhesion promoter.
4. Apply a flexible paint as directed by the paint manufacturer
Package Contents

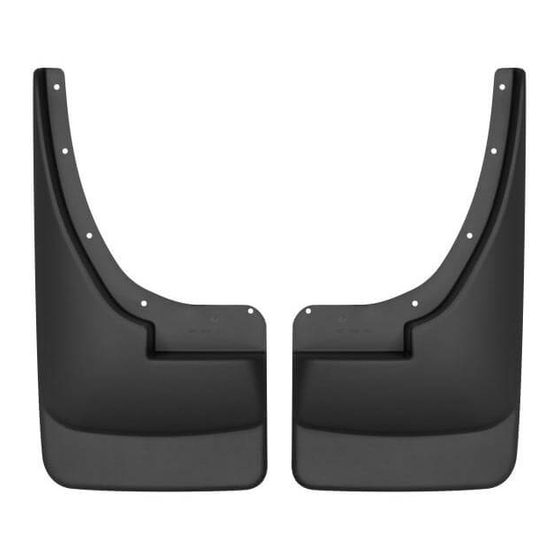

Driver & passenger side mud guard
#10 screw (qty. 8)
Plastic fastener (qty. 2)
U-clip (for rear mud guard only) (qty. 4)
Instruction sheet (front & rear)
5600
PART NO.
5600 Front_Rear Instruc#5FF.doc
Rev: 2
