HUSKY LINERS 47030 Installation Manual

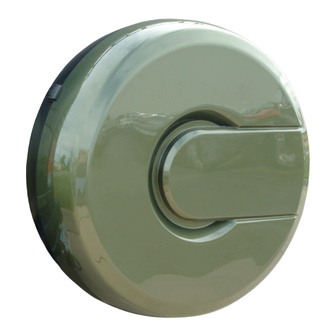

Hummer h2 spare tire cover

Thank you for the purchase of your new Hummer H2 spare tire cover. Please inspect your package contents

before beginning installation. Shown below is a list of installation hardware, faceplate, base plate and quantities:

Latch (3)

We highly recommend that you paint the visible outside of your standard black ABS faceplate. It is not necessary

or recommended that you paint the black textured base plate. Painting must be completed before latch

assembly and insert installation. Your local auto parts store or body shop will be able to provide assistance

with obtaining the correct type and match of paint.

To paint faceplate:

a. Clean faceplate with a soap and water solution to remove dirt and other contaminates.

b. Sand painting surface with 320 grit sand paper.

c. Apply a coating of ABS compatible primer-adhesion promoter

d. Apply paint compatible with ABS as directed by the paint manufacturer

Hummer H2 Spare Tire Cover Installation

Catch (3)

Faceplate (1)

Latch

Catch

Insert (3)

Nut

(12)

Washer

Screw

(12)

Base Plate (1)

H2 2 pc plastic cover instr

Key (1)
