HUSKY LINERS 4707 Installation Manual

Hummer h3 spare tire cover

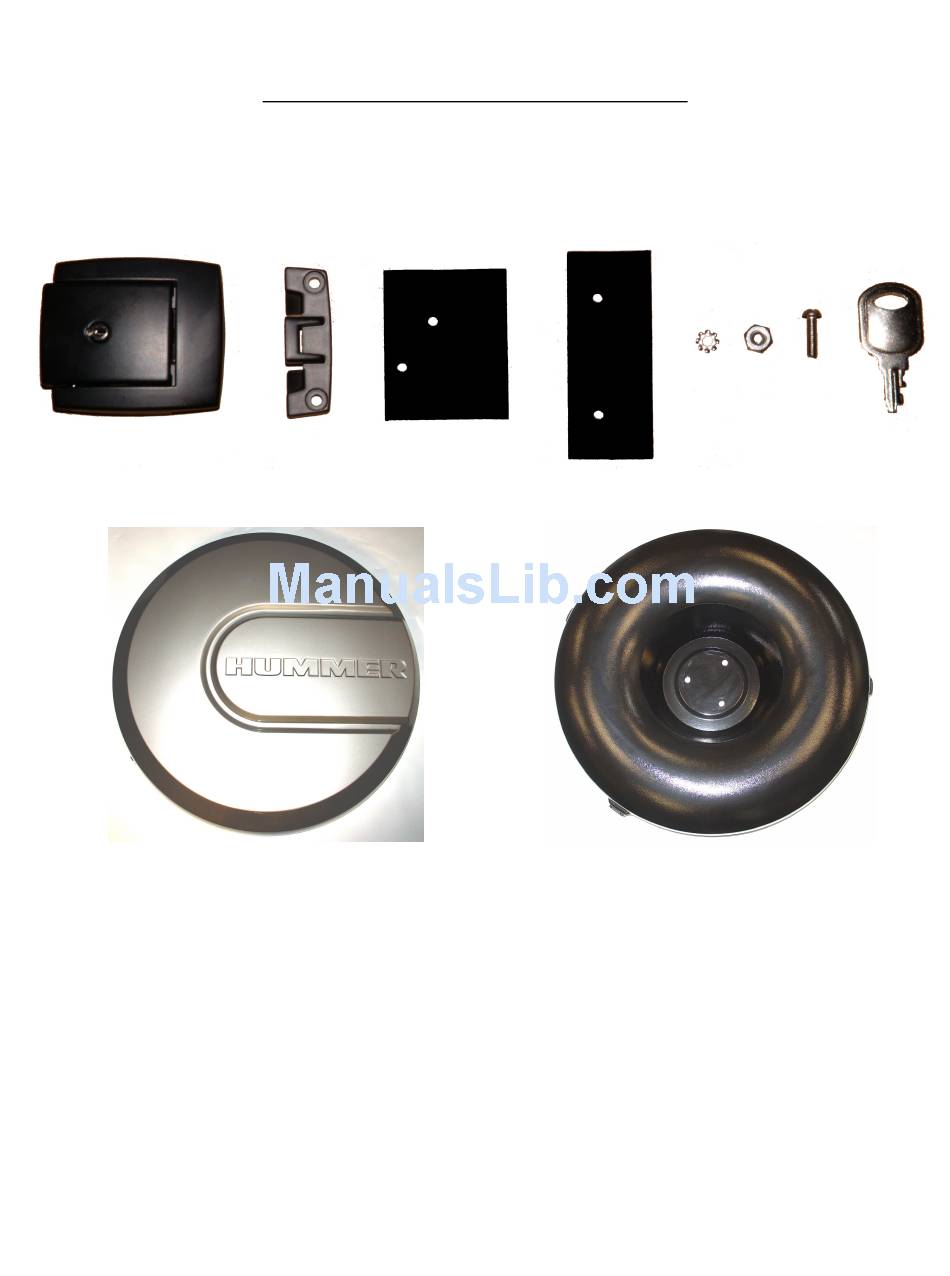

Thank you for the purchase of your new Hummer H3 spare tire cover. Please inspect your package contents

before beginning installation. Shown below is a list of installation hardware, faceplate, base plate and quantities:

Latch (4)

1. Install latch insert and latch to the spare tire base plate with screw, through the front side of an open latch,

into the predrilled holes on the base plate, and finally through the latch insert (textured side against base

plate). Fasten with a washer and nut using a flat head screwdriver and 5/16" wrench (fig 1). Repeat this

installation on each of the 4 notched and predrilled locations on the tire base plate (fig 2).

Hummer H3 Spare Tire Cover Installation

Catch (4)

Faceplate (1)

Latch

Catch

Insert (4)

Nut

(16)

Washer

Screw

(16)

Base Plate (1)

H3 2 pc plastic cover instr

Key (1)

Table of Contents

Do you have a question about the 4707 and is the answer not in the manual?

Page 1 Hummer H3 Spare Tire Cover Installation Thank you for the purchase of your new Hummer H3 spare tire cover. Please inspect your package contents before beginning installation. Shown below is a list of installation hardware, faceplate, base plate and quantities: Latch Catch Insert (4)
Page 2 fig 1 fig 2 2. Install catch insert and catch to the spare tire faceplate with screw through the front side of catch, into the predrilled holes on the faceplate, and finally through the catch insert (textured side against faceplate). Fasten with a washer and nut using a flat head screwdriver and 5/16”...
Page 3 fig 5 fig 6 fig 7 fig 8 NOTE: If you have the ADVENTURE Package with the larger 33-inch on/off road tires you will need to complete the following before installation. Remove the 3” foam pads (4 total – fig 9) and the 18” foam strips (4 total –...
