13
CONNECTION AND INSTALLATION

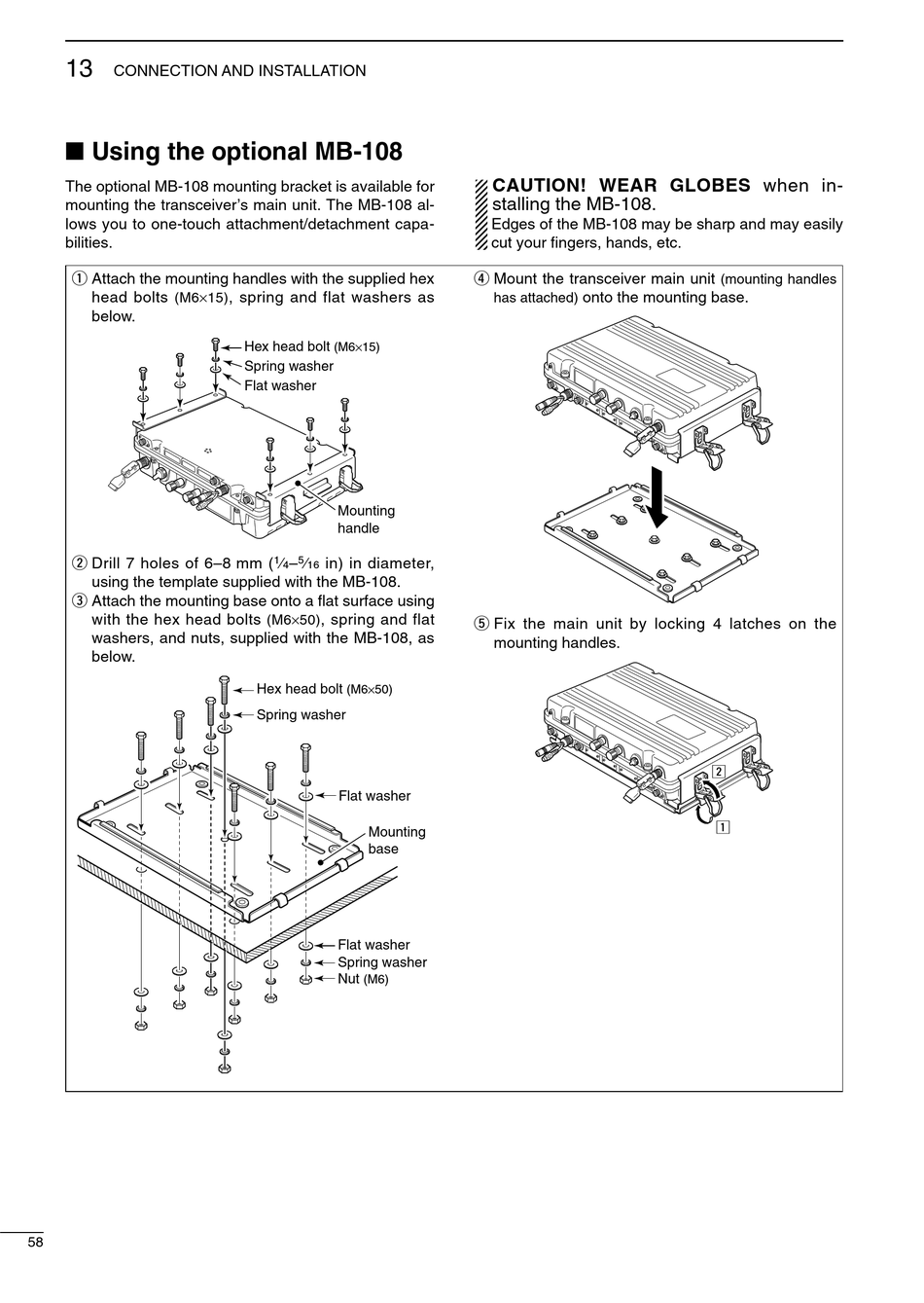

I Using the optional MB-108

The optional MB-108 mounting bracket is available for
mounting the transceiver's main unit. The MB-108 al-
lows you to one-touch attachment/detachment capa-
bilities.
q Attach the mounting handles with the supplied hex
head bolts
(M6×15)
below.
w Drill 7 holes of 6–8 mm (
using the template supplied with the MB-108.
e Attach the mounting base onto a flat surface using
with the hex head bolts
washers, and nuts, supplied with the MB-108, as
below.
58
, spring and flat washers as
Hex head bolt
(M6×15)
Spring washer
Flat washer
Mounting
handle
1 5
⁄ – ⁄ in) in diameter,
4 16
, spring and flat
(M6×50)
Hex head bolt
(M6×50)
Spring washer
Flat washer
Mounting
base
Flat washer
Spring washer
Nut
(M6)
CAUTION! WEAR GLOBES when in-
stalling the MB-108.
Edges of the MB-108 may be sharp and may easily
cut your fingers, hands, etc.
r Mount the transceiver main unit
onto the mounting base.
has attached)
t Fix the main unit by locking 4 latches on the
mounting handles.
(mounting handles
x
z
