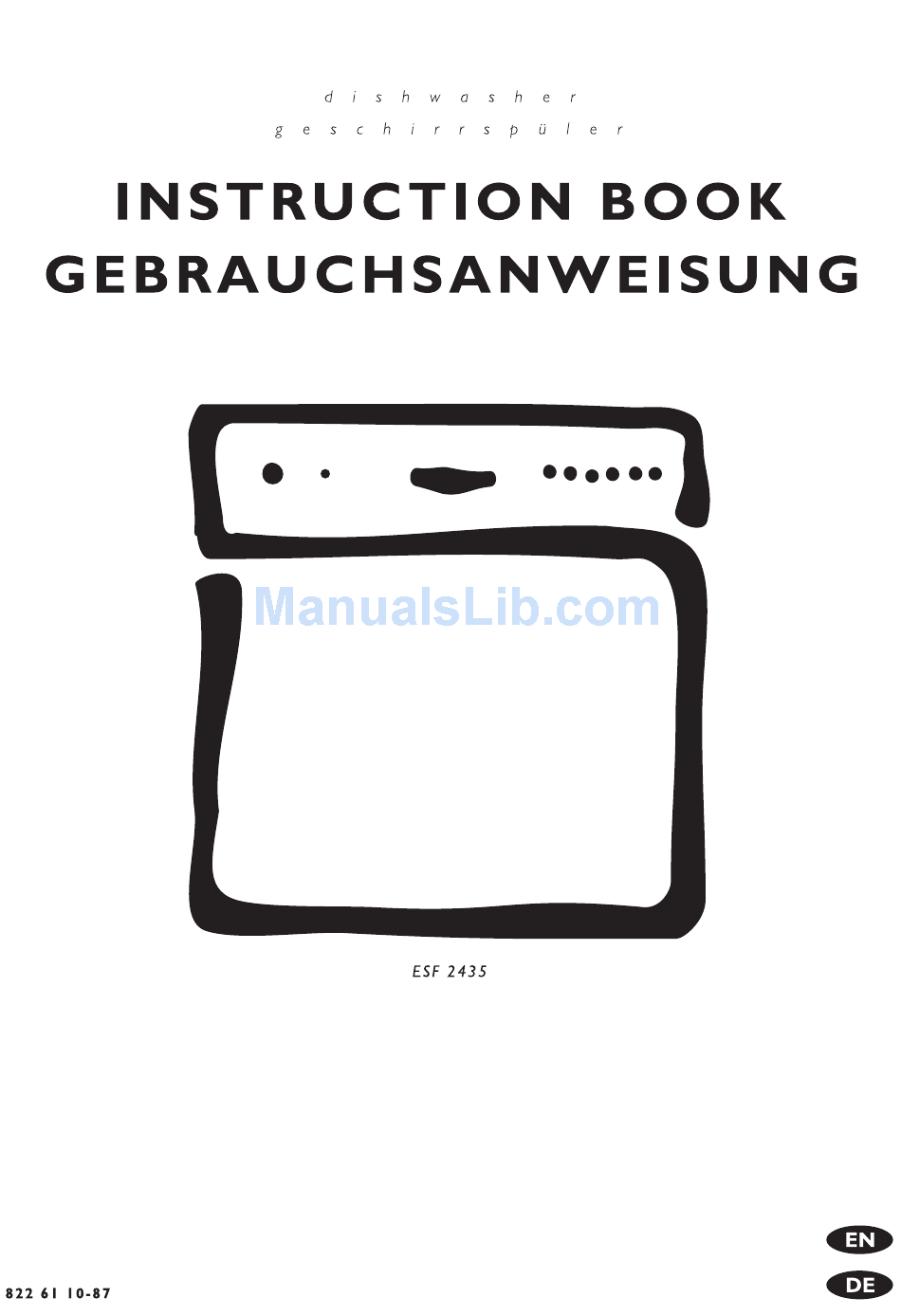

Electrolux ESF 2435 Instruction Book

Hide thumbs

Advertisement

Advertisement

Table of Contents
loading

  Summary of Contents for Electrolux ESF 2435

  • Page 2: Table Of Contents

    Contents For the installer For the user Technical specifications Safety information Unpacking Description of the appliance - Damages - Spray arm - Use - Coarse strainer/microfilter - Positioning - Fine filter - Protecting the dishwasher against freezing - Detergent dispenser - Rinse aid dispenser Installation - Water softener...
  • Page 3: Safety Information

    Safety information Before installing and first using the dishwasher, read this instruction booklet carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the dishwasher are thoroughly familiar with its operation and safety features. Save these instructions and make sure they remain with the dishwasher if it is moved or sold, so that everyone using it through its life can be properly informed on appliance use and safety.
  • Page 4: Description Of The Appliance

    Description of the appliance - 4 -...
  • Page 5: Spray Arm

    Description of the appliance Spray arm (1) Do not fill the rinse aid dispenser with liquid detergent. It is important to keep all the holes in the spray arm clear. A clogged hole can seriously affect washing efficiency. Water softener (6) If the spray arm needs cleaning, unscrew the nut anti- clockwise, remove the washer and lift off the spray arm.
  • Page 6: The Control Panel

    The control panel Indicator and control lamps Indicator lamps delayed start On/Off button Water softener Delay start button button Programme Control lamp buttons Combination buttons ”Cancel” / ”A” In addition to selecting a programme, you can press these two buttons to adjust the setting of the water softener and cancelling a pre-set programme.
  • Page 7: Adjusting The Water Softener

    Adjusting the water softener To prevent limescaling on the dishes and to the interior of the Contact your local Water Authority to find the dishwasher, the dishes must be washed with soft i.e. water exact water hardness level for your area. with low lime content.
  • Page 8: Programme Chart

    Programme chart All types of Coffee cups, Type of Plates and dishes delicate items dishes cooking pots • heavily Type of soil: • normaly • normaly • lightly • lightly soiled soiled soiled soiled soiled • dried-on food • dried-on food remnants remnants especially egg-...
  • Page 9: Using The Appliance

    Using the appliance Starting the programme Pause function 1. Scrape or rinse off solid food remnants. With the paus function the programme can be temporarily disrupted for a short period of time. 2. Load the dishwasher. (See the basket and loading). 1.
  • Page 10: Loading And Unloading

    Loadind and unloading the dishwasher How to load the dishes Baskets The illustration shows the dishwasher loaded with six Main basket place settings. Your own dishes are not likely to be Cutlery basket identical to this load, but if you follow the advice below The cup shelves can be placed in two different we are sure you will be pleased with the results.
  • Page 11: In The Event Of A Fault

    In the event of a fault Before calling out an engineer, please check through the details below because some faults can be rectified easily without the need to call out an engineer. If an engineer is called to resolve a problem listed below or to repair a fault caused by incorrect installation or mis-use a charge will be made, even if the appliance is under guarantee.
  • Page 12: Service

    Service Service and spare parts Servicing and repairs must be carried out by a service company authorized by the supplier. Use only spare parts supplied by these. Before calling service, use the trouble shooting table ”In the event of a fault” to try to attend to the fault yourself. Note that electrical faults shall always be rectified by a certified electrician.
  • Page 13: Technical Speciļ¬cations

    Installation instructions Any electrical work required to install this appliance, should be carried out by a qualified electrician or competent person. Any plumbing work required to install this appliance, should be carried out by a qualified plumber or competent person. Technical specifications Capacity: 6 place settings accordance EN 50242...
  • Page 14: Unpacking

    Unpacking Damages If the dishwasher has been damaged during transport, you should immediately notify the company responsible for delivering it. Check that the dishwasher is undamaged. If you discover any damage, faults or that anything is missing, you should notify the dealer immediately. Never leave packaging material in a place where children may play with it.
  • Page 15: Installation

    Installation Water inlet The dishwasher is equipped with safety features which are to prevent the water from going back to the fresh water system. These features are ac- cording to current water technical safety regulations. The temperature of the water supply should not exceed 65°...
