Pizza Prep Table Refrigerator
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!
PPT-67
Full Stainless Steel Visible Exterior

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPT-67 and is the answer not in the manual?

Questions and answers

Summary of Contents for Master Bilt PPT-67

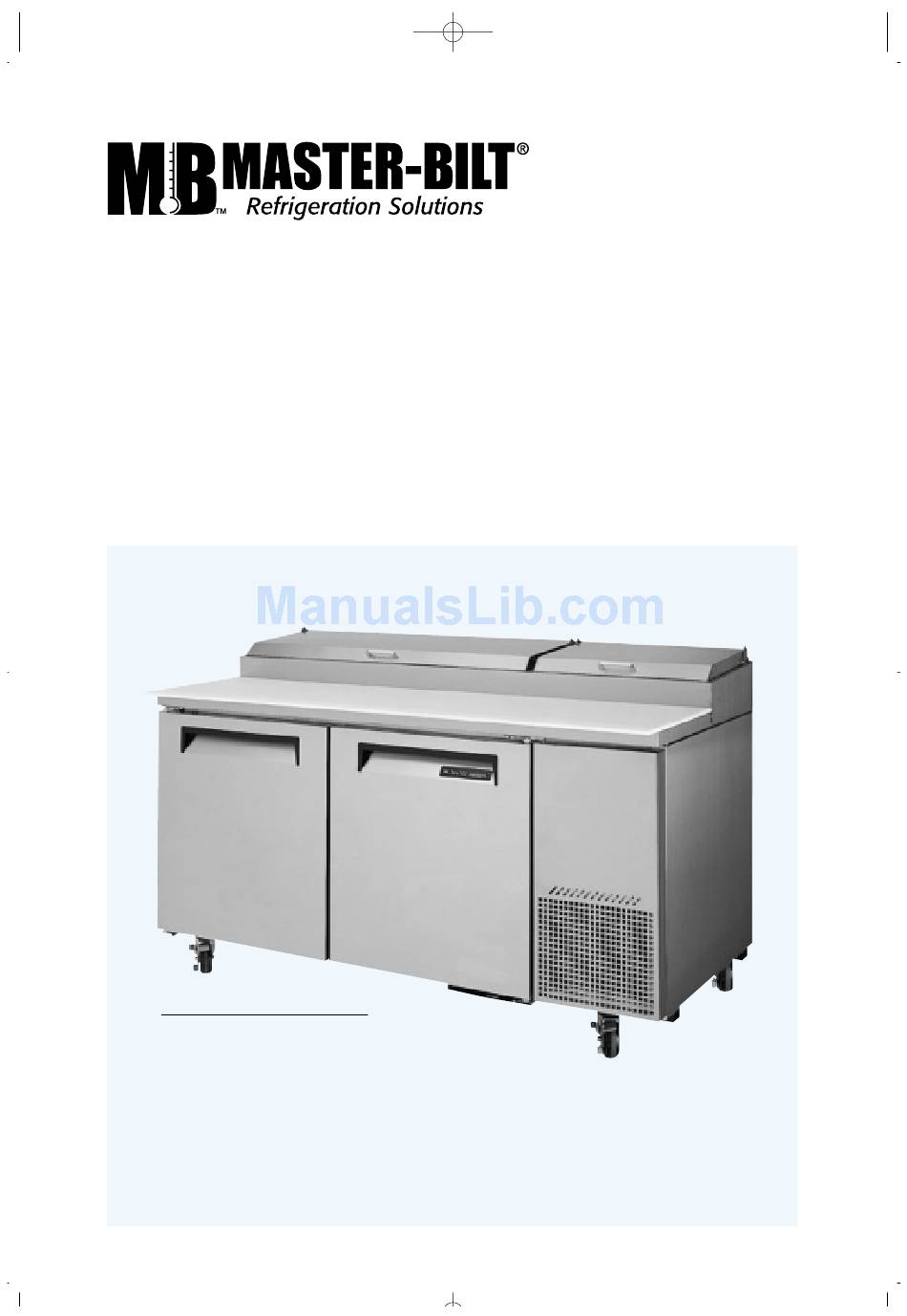

  • Page 1 Pizza Prep Table Refrigerator Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment! PPT-67 Full Stainless Steel Visible Exterior...
  • Page 2: Table Of Contents

    PPT-67(Pizza Prep) 2003.2.8 11:57 AM ∆‰¿Ã¡ˆ2 CONTENTS PAGE SPECIFICATIONS .................... 2 SERIAL NUMBER .................... 2 CUTTING BOARD & BRACKETS Installation Schematic Diagram....3 INSTALLATION OF CASTORS ................ 4 INSTALLATION OF HOOD LID ................ 4 HOW TO CLEAN THE PAN AIR DUCT PANEL ..........6 HOW TO OPEN AND CLOSE THE HOOD LID ..........6...
  • Page 3: Cutting Board & Brackets Installation Schematic Diagram

    PPT-67(Pizza Prep) 2003.2.8 11:57 AM ∆‰¿Ã¡ˆ3 CUTTING BOARD & BRACKETS Installation Schematic Diagram Part List PART NAME SPECIFICATION QUANTITIES CUTTING BOARD 67’* 19 5/16’* 1/2’ CUTTING BOARD BRACKET SUS304 LID BRACKET LEFT SUS304 LID BRACKET CENTER SUS304 LID BRACKET RIGHT...
  • Page 4: Installation Of Castors

    INSTALLATION OF CASTOR AND CASTOR BRAKE 1) Screw the castor (in rear side) and the castor brakes (in front side) by using castor wrench. 2) Use the castor shims to level the cabinet, if necessary, by inserting them to stems of the castors. DOOR(L) DOOR(R) CASTOR (2EA)
  • Page 5 INSTALLATION OF HOOD LID 2) Assemble HOOD LID BRACKET like drawing below. LEFT LID RIGHT LID FRONT VIEW OF THE UNIT RIGHT BRACKET’S BENDING DIRECTION LEFT BRACKET’S IS RIGHT. BENDING DIRECTION IS LEFT. There are 3 kinds of bracket. They are for left, middle, right position. 3) Insert HOOD LID SHAFT like drawing below.
  • Page 6: How To Clean The Pan Air Duct Panel

    PPT-67(Pizza Prep) 2003.2.8 11:57 AM ÆäÀÌÁö6 HOW TO CLEAN THE PAN AIR DUCT PANEL HOOD LID The Pan Air Duct Panel is located under pans. PAN (6+3EA) MODEL: PPT-67 1) Remove all pans. 2) Clean the PANEL with cloth and warm water.
  • Page 7: Installation

    PPT-67(Pizza Prep) 2003.2.8 11:57 AM ∆‰¿Ã¡ˆ7 INSTALLATION 1. GOOD AIR CIRCULATION - Do not place any object that will restrict air flow in front or back grills. - Turbo air highly recommends that there is ample space in rear of unit. 3 inches or more is best.
  • Page 8: Cleaning & Caution

    PPT-67(Pizza Prep) 2003.2.8 11:57 AM ÆäÀÌÁö8 CLEANING Before cleaning, turn unit off at power switch. 1. CLEANING THE INTERIOR AND EXTERIOR - The interior and exterior of the unit can be cleaned using warm water with soap. - Do not use an abrasive cleaner because it will scratch the surface.
  • Page 9: Basic Operation

    PPT-67(Pizza Prep) 2003.2.8 11:57 AM ∆‰¿Ã¡ˆ9 BASIC OPERATION REFRIGERATORS PPT-67 1. The controller(thermostat) is located at the right inside of the unit. 2. The factory setting for the control is ‘Normal’, and maintains about 38˚F (3˚C) inside. 3. Set toward “Cool” for higher temperature and “Cold” for lower temperature.
  • Page 10: Before Requesting Service

    PPT-67(Pizza Prep) 2003.2.8 11:57 AM ÆäÀÌÁö10 BEFORE REQUESTING SERVICE SYMPTOMS CAUSES SOLUTIONS Refrigerator(Freezer) • The setting temperature is too • Turn the temperature dial to a is freezing(melting) low(high) to maintain food warmer(colder) setting. food. freshness. The unit does not •...
  • Page 11: Warranty

    Warranty Warranty Claims All claims for labor or parts must be made directly through Turbo Air. If unit was manufactured more than one year, proof of purchase must be faxed in or sent with claim. All claims should include: model number of the unit, the serial number of the cabinet, and all pertinent information supporting the existence of the alleged defect.
  • Page 12 PPT-67(Pizza Prep) 2003.2.8 11:57 AM ÆäÀÌÁö12 What Is Not Covered By This Warranty Turbo Air’s sole obligation under this warranty is limited to either repair or replacement of parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other than those expressly covered by this warranty.
  • Page 13 PPT-67(Pizza Prep) 2003.2.8 11:57 AM ∆‰¿Ã¡ˆ13 908 Highway 15 North • New Albany, MS 38652 Phone: (662)534-9061•Toll-Free: 800-647-1284 FAX: (662)534-6049•Toll-Free: 800-232-3966 www.master-bilt.com Master bilt...
