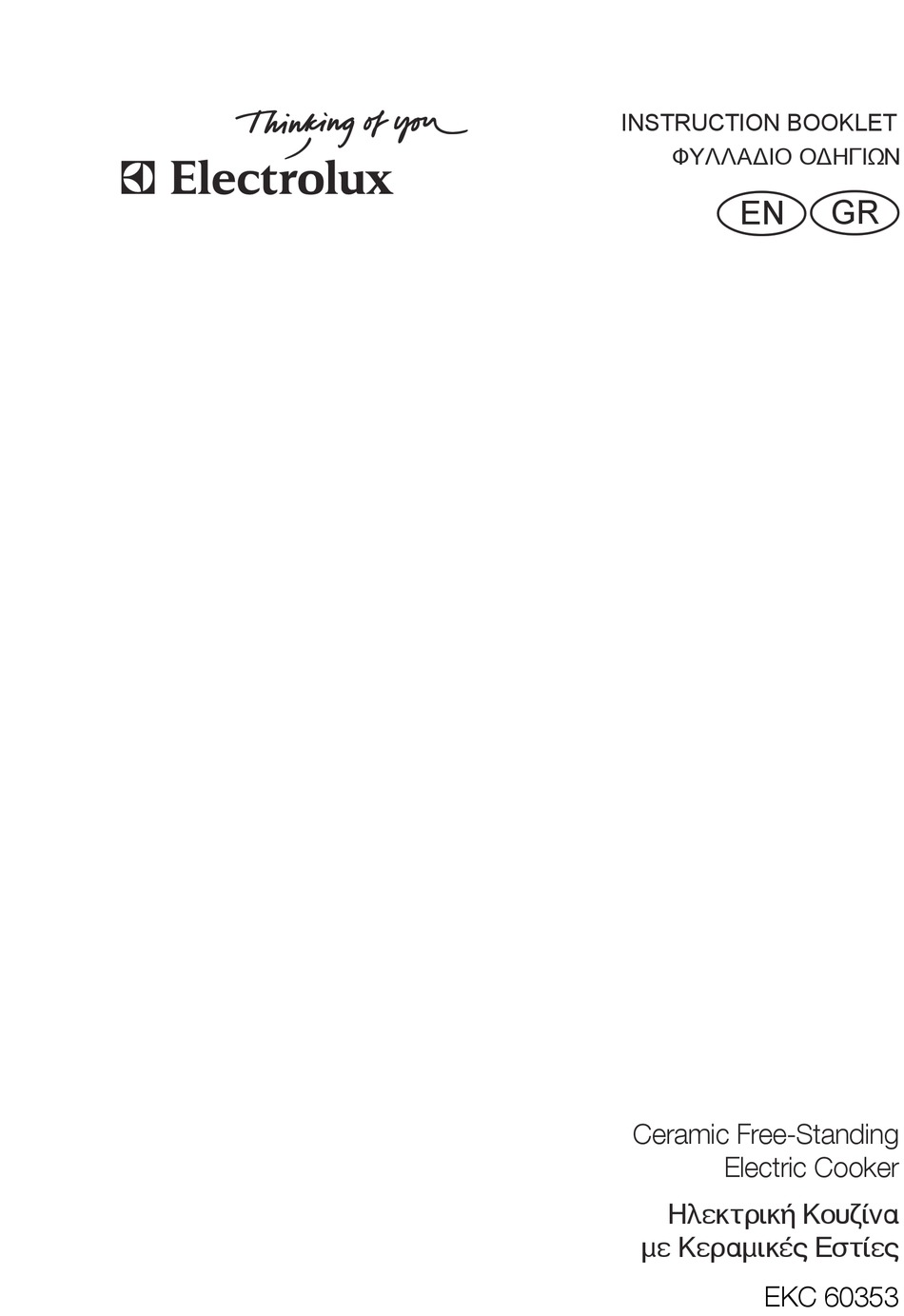

  • Page 1 INSTRUCTION BOOKLET ÖÕËËÁÄÉÏ ÏÄÇÃÉÙÍ Ceramic Free-Standing Electric Cooker ÇëåêôñéêÞ Êïõæßíá ìå ÊåñáìéêÝò Åóôßåò EKC 60353...
  • Page 2 2 electrolux...
  • Page 3 electrolux 3 Welcome to the world of Electrolux Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You find some examples on the cover in this manual.
  • Page 4: Table Of Contents

    4 electrolux Contents For the User Important Safety Information ................5 Control Panel ....................8 Operation ......................9 Using the ceramic glass hob ................10 Electric Oven ....................12 Before the First Use of the appliance ............... 13 Electric Programmer ..................14 Using the Oven ....................
  • Page 5: Important Safety Information

    electrolux 5 ENGLISH Important Safety Information You MUST read these warnings carefully before installing or using the hob. If you need assistance, contact our Customer Care Department. Installation • Ensure that the electrical supply complies with the type stated on the •...
  • Page 6 6 electrolux • During use the appliance becomes • Perishable food, plastic items and hot. Care should be taken to avoid areosols may be affected by heat touching heating elements inside the and should not be stored above the oven. appliance.
  • Page 7 electrolux 7 Environmental Information • After installation, please dispose of the packaging with due regard to safety and the environment. • When disposing of an old appliance, make it unusable, by cutting off the cable. • The symbol on the product or on its packaging indicates that this product may not be treated as household waste.
  • Page 8: Control Panel

    8 electrolux Control Panel 1. Front left cooking zone control knob Storage drawer 2. Back left cooking zone control knob The storage drawer is located 3. Back right cooking zone control knob underneath the oven cavity. 4. Front right cooking zone control knob During cooking the storage 5.
  • Page 9: Operation

    electrolux 9 Operation Push-Pull control knobs Some models are provided with push- pull control knobs (see picture). These knobs can be completely sunken inside the control panel when the oven is not working. Ceramic hob cooking zones To switch on a cooking zone, turn the relevant control knob clockwise to the re- quired heat setting.
  • Page 10: Using The Ceramic Glass Hob

    10 electrolux Residual heat indicators Mains on light The hob is fitted with four residual heat The mains on light will come on when indicators corresponding to each cook- the oven function control knob and/or the ing zone. The corresponding indicator will cooking zone control knobs are set.
  • Page 11 electrolux 11 Energy consumption To save energy, you should: - use only cooking and frying utensils with smooth, flat bases. - place pots and pans in position before switching on the cooking zone. - wherever possible, cover pots and pans with a lid. - switch off the cooking zone a few minutes before the end of the cooking time, in order to make use of...
  • Page 12: Electric Oven

    12 electrolux Electric Oven Oven function and thermostat control knobs They enable to select the most appropriate type of heating for the different cooking requirements by appropriately connecting the heating elements and adjusting temperature to the required level. The oven is off. Oven Light - The oven light will be on without any cooking function Conventional cooking - The heat...
  • Page 13: Before The First Use Of The Appliance

    electrolux 13 Thermostat control light The safety thermostat The thermostat control light will This oven is provided with a safety come on when the thermostat control thermostat. In case of malfunctioning of knob is turned. The light will remain on the main thermostat, and consequential until the correct temperature is reached.
  • Page 14: Electronic Programmer

    14 electrolux Electronic Programmer 1. Push button for selecting a function 2. Decreasing control button “ ” 3. Increasing control button “ ” 4. Display 5. “Cooking Duration” pilot lamp 6. “End of cooking” pilot lamp 7. “Minute minder” pilot lamp 8.
  • Page 15 electrolux 15 “Cooking Duration” function This function allows the oven to automatically switch off at the end of a programmed cooking duration time. Place food in the oven, select a cooking function and adjust the cooking tempe- rature. Press button repeatedly to select the “Cooking Duration”...
  • Page 16 16 electrolux “End of cooking” function With this function, you can set the oven to switch off automatically when a programmed end of cooking time is over. Place food in the oven, select a cooking function and adjust the cooking temperature. Press button repeat- edly to select the “End of cooking”...
  • Page 17 electrolux 17 Then, press button : the display will show the programmed setting. 2. With the “End of cooking time” function (carry out the End of cooking setting as described in the relevant chapter) set the end of cooking time. The relevant pilot lamps will come on and the display will show the time of day.
  • Page 18: Using The Oven

    18 electrolux Using the Oven Always cook with the oven door closed. Stand clear when opening the drop down oven door. Do not allow it to fall open - support the door using the door handle, until it is fully open. The oven has four shelf levels and it is supplied with two shelves.
  • Page 19 electrolux 19 necessary before any cooking. The effects of dishes on cooking We recommend you to wipe results away condensation after each Dishes and tins vary in their thick- use of the appliance. ness, conductivity, colour, etc. which Cookware affects the way they transmit heat to the food inside them.
  • Page 20: Hints And Tips For Using The Oven

    20 electrolux Hints and tips for using the oven Hints and Tips on Cooking Hints and Tips on baking Fish and Meat Cakes usually need to be cooked at a medium temperature (between 150°C You can place meat in oven proof and 200 °C).
  • Page 21: Cooking Chart - Conventional And Fan Cooking

    electrolux 21 Cooking Chart Cooking times do not include pre-heating time. A short oven pre-heating (about 10 minutes) is necessary before any cooking. Conventional and fan cooking Traditional Cooking cooking cooking time NOTES TYPE OF DISH Level Level minutes CAKES Whisked recipes 45 ~ 60 In cake mould...
  • Page 22: Cooking Chart - Grilling

    22 electrolux 4000 Turkey 210 ~ 240 Whole 1500 Duck 120 ~ 150 Whole 3000 Goose 150 ~ 200 Whole 1200 Rabbit 60 ~ 80 Cut in pieces 1500 Hare 150 ~ 200 Cut in pieces Pheasant 90 ~ 120 Whole FISH 1200...
  • Page 23: Cleaning The Ceramic Hob

    electrolux 23 Cleaning the Ceramic Hob Stain removal Before any maintenance or cleaning can be carried out, you must Light metallic stains (aluminium DISCONNECT DISCONNECT DISCONNECT DISCONNECT DISCONNECT the cooker from the residues) can be removed from the electricity supply. cooking zone with a ceramic hob Never use steam or high pressure cleaning agent such as Hob Brite when...
  • Page 24: Cleaning The Oven

    24 electrolux Cleaning the Oven Oven lamp replacement The oven should be kept clean The oven should be kept clean The oven should be kept clean The oven should be kept clean The oven should be kept clean at all times. A build-up of fats or at all times.
  • Page 25: Oven Shelves

    electrolux 25 Oven Shelves and Shelf Supports To clean the oven shelves, soak in warm soapy water and remove stubborn marks with a well wetted soap impregnated pad. Rinse well and dry with a soft cloth. The shelf supports can be removed for easy cleaning.
  • Page 26 26 electrolux The Oven Door and its gasket The correct operation of the oven is ensured by a gasket placed round the Before cleaning the oven door, we edge of the oven cavity. recommend you to remove it from the Periodically check the condition of •...
  • Page 27: Something Not Working

    electrolux 27 Something not working If the appliance is not working correctly, please carry out the following checks, before contacting your local Service Force Centre. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee.
  • Page 28: Instructions For The Installer

    28 electrolux Instructions for the Installer Technical Data Appliance Class 2 sub class 1 and Class 1 Dimensions Height 850 mm Depth 600 mm Width 600 mm Oven Capacity 53 l Ceramic Hob Front left cooking zone 1,700 W / 700 W - Ø180 mm/110 mm Back left cooking zone 1,200 W / Ø145 mm Back right cooking zone 1,700 W / Ø180 mm...
  • Page 29 electrolux 29 The following instructions are meant for a qualified installer, in order that the operations of installation, regulation, and service are executed according to the existing regulations. Whenever changes are mode involving the disconnection of the machine it is necessary to proceed with maximum caution.
  • Page 30: Electrical Connections

    30 electrolux Electrical connections Prior to making the electric al connection, make sure that: - The protection fuse and the domestic wire system are suitable to carry the total electric load of the oven (see rating plate). - Your domestic wiring system has an efficient earth connection in compliance with the rules and laws in force.
  • Page 31 electrolux 31 Suitable power supply cables are the following types, considering the respective necessary section of cable. H07 RN-F • H05 RN-F • H05 RR-F • H05 VV-F • H05 V2V2-F (T90) • Connecting the terminal board The appliance incorporates an easily accessible 6-pole terminal board whose jumpers (bridges) are already pre-set for operation on 400 V three-phase with...
  • Page 32: Service And Spare Parts

    32 electrolux Service and Spare Parts If after the checks listed in chapter “Something not working”, the appliance still does not work correctly, contact your locals Service Centre, specifying the type of malfunctioning, the appliance model (Mod.), the product number (Prod.
  • Page 33 electrolux 33...
