Wall-Mount Position

Security Wall-Mount
Bracket
To mount the NBX Telephone on a wall, put the bracket on the opposite
end of the telephone in the low-profile position. Pull and twist the knob
on the underside of the phone 90 degrees
loaded peg projects out on the top of the phone (Item 1 in

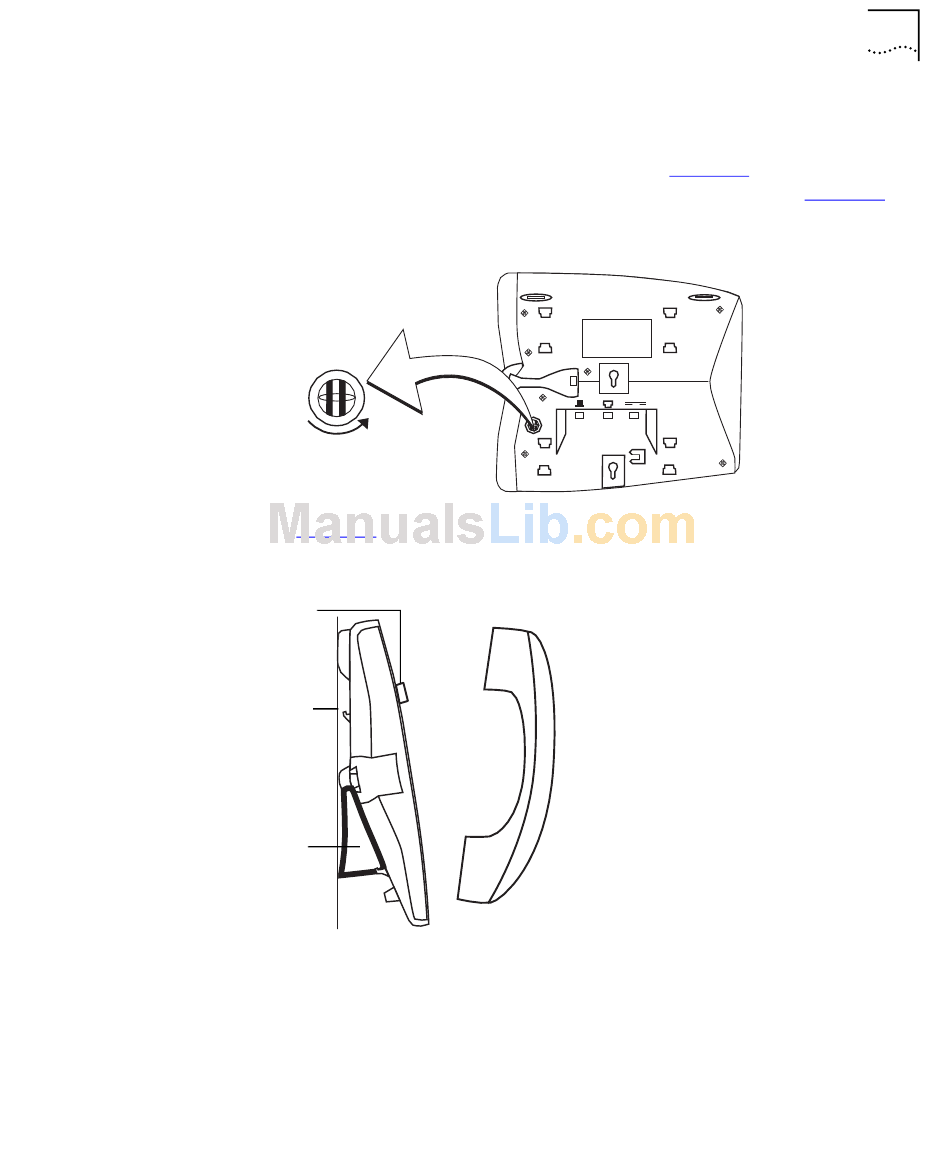

Figure 11 Knob for the Handset Support Peg
Figure 12 shows the NBX Telephone in the wall-mount position.
Figure 12 Wall-Mount Position
1
2
3
1 Handset support peg
2 Wall with a solid backing
3 Support bracket in the low-profile position on opposite end of telephone
For how to order the optional security wall-mount bracket for NBX
Telephones, consult your 3Com NBX Voice-Authorized Partner. Read and
follow the instructions that come with the bracket.
Attaching and Adjusting the Support Bracket
(Figure
87
11) so that the spring-
Figure 12).
