Warning:
Improper installation, adjustment, altera-
tion, service or maintenance can cause
injury or property damage. Refer to
this manual. For assistance or additional
information consult a qualified installer,
service agency or the gas supplier.
What To Do If You Smell Gas:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
For Your Safety:
Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
Installation
Operation &
Maintenance

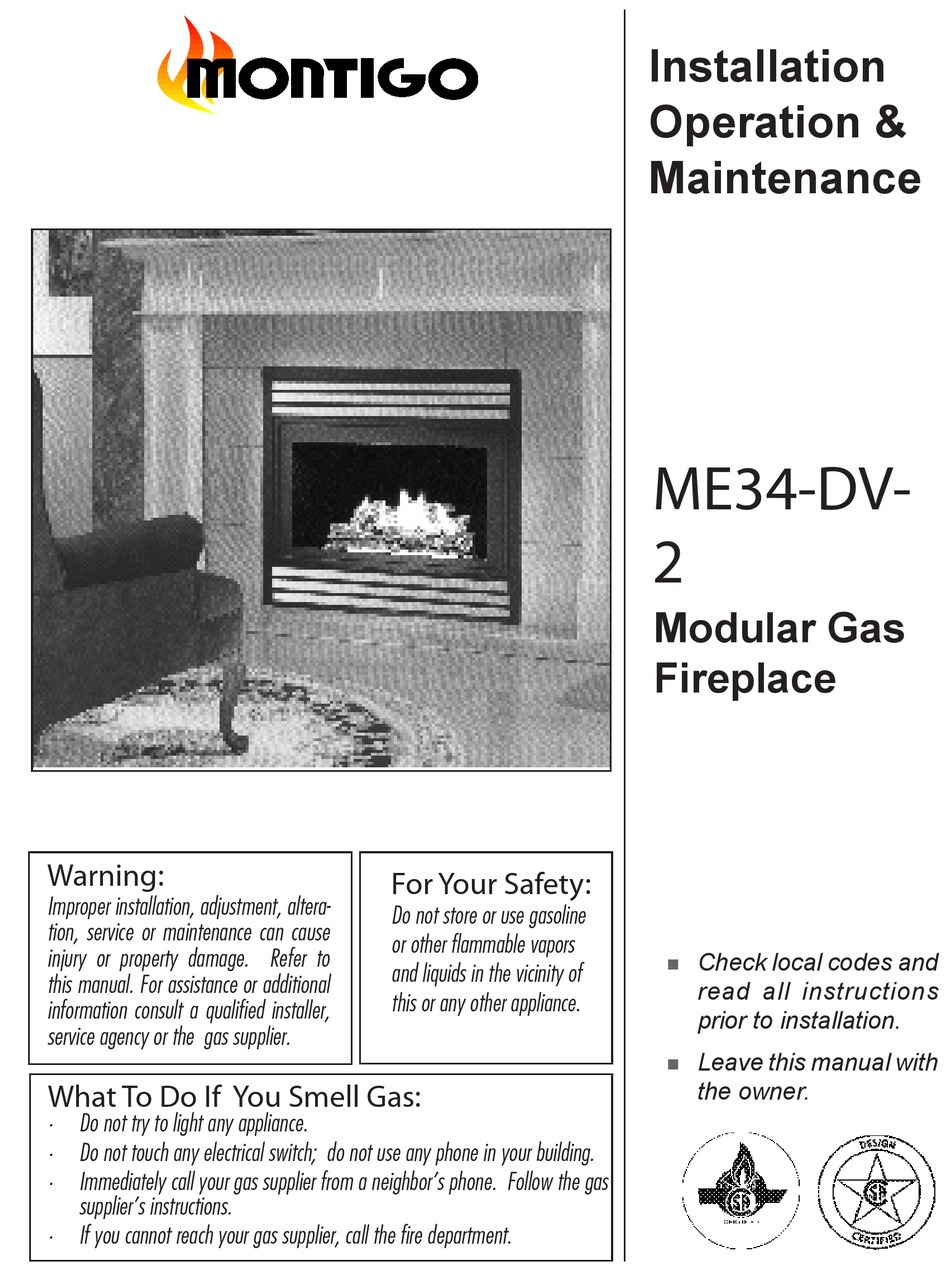

ME34-DV-
2
Modular Gas
Fireplace
Check local codes and
read all instructions
prior to installation.
Leave this manual with
the owner.
Advertisement
Table of Contents
Related Manuals for Montigo Homefire ME34-DV-2
Summary of Contents for Montigo Homefire ME34-DV-2
-
Page 1: For Your Safety
Installation Operation & Maintenance ME34-DV- Modular Gas Fireplace Warning: For Your Safety: Improper installation, adjustment, altera- Do not store or use gasoline tion, service or maintenance can cause or other flammable vapors injury or property damage. Refer to Check local codes and ... -
Page 2: Table Of Contents
ME34-DV-2 Homefire Introduction Table Of Contents About the modular fireplaces and the ME34-DV-2 Homefire: The ME34-DV-2 includes a 21,000 BTU dual burner, 5 piece logset, Introduction ................2 and glowing embers. All M34 Series Modular Fireplaces allow quick Installation and easy upgrades in the future. The ME34-DV-2 can be upgraded Installing the Fireplace Shell .......... -
Page 3: Installation
For Rear Vent models (ME34DR-2), the minimum clearance from the top of the fireplace to a shelf is 7". The ME34-DV-2 clearances to combustible materials are: For Top Vent models (ME34DT-2), the minimum clearance when us- Top - Rear Vent* 7"... -
Page 4: Installing The Gasline
Installation Installing The Gas Line Vent Installation The gas line must be installed before finishing the ME34-DV-2 Fire- This section covers the installation of direct venting and terminations. place. Natural Gas requires a minimum inlet gas supply pressure of Installation Requirements 5.5"... - Page 5 ME34-DV-2 Homefire Installation Installing Terminations with Built-In Frames Installing Heat Guards over Terminations MTO-3F MTKOG Frame the termination opening to 11" x 11". Ensure that the two long mounting brackets are facing the bot- tom of the termination. (See inset). This will provide more heat...
-
Page 6: Top Vent Through-The-Wall Installations
Top Vent Top Vent Venting Runs Heat Shields For the ME34-DV-2 Top Vent, there are two types of installations: A) Due to high flue temperatures, heat shields Through-The-Wall Installations and B) Vertical (Through-The-Roof) are required on all 34 Series Modular Direct Installations. -
Page 7: Terminations
ME34-DV-2 Homefire Installation Top Vent Example 1: 150" max. For our shortest venting configuration use components A and F (see 30" max. Figure 9a). Heat Shield Termination Termination Solid Sections Heat Shield Exterior MEL-90F/F Elbow Wall Flex Section Hearth Figure 10. Extended Installation using a combination of solid and flex venting. -
Page 8: Top Vent Through-The-Roof Installations
ME34-DV-2 Homefire Installation Top Vent B. Vertical (Through-The-Roof) Installations Vertical Terminations must be installed: A maximum of two offsets (each offset has two 90° bends) may be • minimum 2' (two feet) above the highest point where made and shall not exceed total length of 25% of the vertical vent vent passes through the roof. -
Page 9: Rear Vent Through-The-Wall Installations
Rear Vent Venting Runs A. Simple Rear Vent Installations 2. 45° Corner Installation. The ME34-DV-2 Rear Vent has three possible installations which do Attach an EEL-45 (45° elbow) directly onto the flue collar. Cut the not require vertical lift: EXT-18 to suit, and attach it to the EEL-45. Slide the fireplace into position and attach to the termination. -
Page 10: Rear Vent Multi-Elbow Installations
Rear Vent Installation Of Rear Vent DV B. Multi-Elbow Installations ME34-DV-2 Rear Vent versions are supplied with an EXT-18 (female/ For more diffiicult installation situations, the ME34-DV-2 Rear Vent female) section. In addition, the following venting components are available for Rear Vent installations: may be installed with 2 - 90°... -
Page 11: Facing
ME34-DV-2 Homefire Installation Finishing Around the Fireplace elevated mantel temperatures which may be in excess of product Combustible mantels and mouldings may be safely installed over the design, for example: candles, plastic or pictures. This can cause top and on the front of the fireplace provided that they do not project melting, deformation, discoloration or premature failure of T.V. -
Page 12: Wiring
Installing the Log Set Left log Installing the Logs: The ME34-DV-2 is supplied with six ceramic fibre logs. Unpack the logs and handle them very carefully. Remove the door cover and the glass door. Place the Back log onto the back log rest as shown below in figure 8a. -
Page 13: Removing And Installing The Insert
Fresh Air Flex (4" dia.) Venting Plate Figure 26b. Removing the door. Figure 25. ME34-DV-2 insert. Once the three latches are unhinged, tilt the top of the door forward and lift it out of the slots. See figure 26b. Page 1 Part No. XG0105B... - Page 14 ME34-DV-2 Homefire Operation - Model ME34-DV-2 ME34-DV-2 with Continuous Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by hand.
- Page 15 ME34-DV-2 Homefire Operation - Model ME34-DV-I-2 ME34-DV-I-2 with Honeywell Intermittent Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. If you cannot reach your gas supplier, call the Fire ...
-
Page 16: Operation
Doors and logs can get very hot. Handle only when cool. Raising or lowering the Flame Height he ME34-DV-2 fireplace is equipped with an adjustable burner, al- General lowing you to raise or lower the flames. Operating the control knob as described below will adjust both the main burner and the ember ... - Page 17 ME34-DV-2 Homefire Maintenance Troubleshooting Gas Control Valve ME34-DV-I-2 HONEYWELL SV 9500 /SV9600 P o w e r G e n e r a t o r Troubleshooting Sequence P i l o t A d j u s t m e n t S c r e w...
-
Page 18: Warranty
