Warning:
Improper installation, adjustment,
alteration, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional
information consult a qualified installer,
service agency or the gas supplier.
What To Do If You Smell Gas:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
For Your Safety:
Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
Installation
Operation &
Maintenance

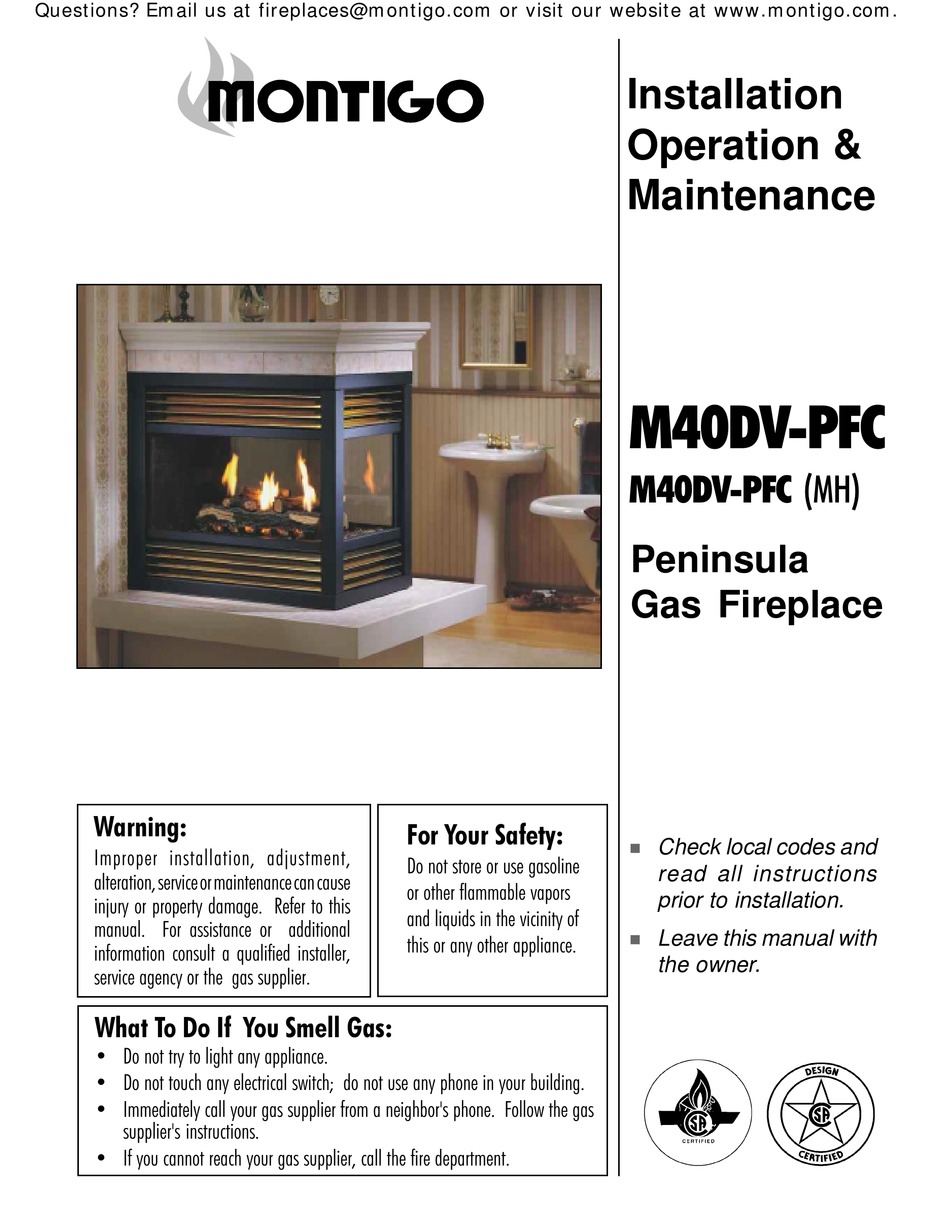

M40DV-PFC
M40DV-PFC (MH)
Peninsula
Gas Fireplace
Check local codes and
n
read all instructions
prior to installation.
Leave this manual with
n
the owner.
Advertisement
Table of Contents
Related Manuals for Montigo M40DV-PFC
Summary of Contents for Montigo M40DV-PFC
- Page 1 Questions? Email us at fireplaces@montigo.com or visit our website at www.montigo.com. Installation Operation & Maintenance M40DV-PFC M40DV-PFC (MH) Peninsula Gas Fireplace Warning: For Your Safety: Check local codes and Improper installation, adjustment, Do not store or use gasoline read all instructions...
-
Page 2: Table Of Contents
M40DV-PFC Peninsula Gas Fireplace Introduction Table Of Contents The M40DV-PFC is a direct-vented, 3-sided Gas Fireplace with an adjustable burner. It can be converted to both a top vent or rear vent Introduction ................2 unit, and it is available in two models: Installation ................ -
Page 3: Installation
The fireplace may be installed in any location that maintains proper Clearances clearances to air conditioning ducts, electrical wiring and plumbing. The M40DV-PFC clearances to combustible materials are: Safety, as well as efficiency of operation, must be considered when Top* 8"... -
Page 4: Installing The Gasline
Installation Installing The Gas Line Installing The Remote Switch The gas line must be installed before finishing the M40DV-PFC The M40DV-PFC is equipped with a remote-operated valve for use fireplace. Natural Gas requires a minimum inlet gas supply pressure of with a wall switch. -
Page 5: Vent Terminations
M40DV-PFC Peninsula Gas Fireplace Installation Vent Terminations Installing Terminations with Built-In Frames Installing Heat Guards over Terminations Frame the termination opening to 11" x 11". Ensure that the two long mounting brackets are facing the bottom of the termination. (See inset). This will provide more Fasten the termination to the studs using a minimum of 4 screws. -
Page 6: (Installing The Flue Cover)
If your installation requires more than 12" of horizontal venting, some vertical lift is required. Use the vent graph below to determine an An M40DV-PFC is shipped ready for a rear vent installation. acceptable vent run. Unacceptable venting can affect the fireplace's The outer flue cover must be secured in place with a minimum of performance. -
Page 7: Rear Vent Horizontal Venting Runs
M40DV-PFC Peninsula Gas Fireplace Installation Installation Installation Installation Installation Rear Vent Horizontal Vent Installation To install the heat shield, slide one section over the vent pipe on the inside of the wall opening, with the circular portion inside the wall cavity. -
Page 8: Rear Vent Vertical Venting Runs
M40DV-PFC Peninsula Gas Fireplace Installation Rear Vent Vertical Vent Installations Vertical Installations with a rise greater than 12' can be reduced from 5/8 to 4/7 venting. Vertical Terminations must be installed: • minimum 2' (two feet) above the highest point where vent passes through the roof. -
Page 9: Top Vent Venting Requirements
Installation Of Top Vent DV Before you install any venting, you must determine whether the venting A complete M40DV-PFC vent system may comprise up to five different run will be acceptable. Unacceptable venting can affect the fireplace's types of components: combustion. -
Page 10: Top Vent Horizontal Venting Runs
M40DV-PFC Peninsula Gas Fireplace Installation Top Vent Example: A 10' section and an elbow used in conjunction with 3 ft. flex section (PFL-3) will, when extended in a five foot chase, allow for a maximum horizontal run of twelve and one-half feet from the centre of the fireplace to outside wall and a minimum of 7'6"... -
Page 11: Top Vent Vertical Venting Runs
M40DV-PFC Peninsula Gas Fireplace Installation Installation Installation Installation Installation Top Vent Installation Of Vertical Vent DV A maximum of two offsets (each offset has two 90° bends) may be made if the length of the offsets does not exceed 25% of the vertical vent Vertical Terminations must be installed: height, when measured center to center of piping. -
Page 12: Reduced Vertical Venting
M40DV-PFC Peninsula Gas Fireplace Installation Reduced Vertical Installation It is possible to reduce vertical vent runs from 5"/8" venting to 4"/7" venting. Reduced vertical venting may only be used when the installation exceeds 12 feet and terminates through the roof, and if the vertical vent reducer is used with the following venting configuration. -
Page 13: Wiring
M40DV-PFC Peninsula Gas Fireplace Installation S ide louvre a s sem bly E nd louvre a s sem bly Figure 22a. Removing the louvre assemblies. Remove the louvre assemblies (upper and lower) from one side of the fireplace. Grasp the assembly underneath one of the louvres and up Figure 20c. -
Page 14: Installing The Logset
Installing the Logs and Embers See Pages 15-16. Bottom Logs The M40DV-PFC is supplied with five (5) fibre logs. The two large Burner Adjustment bottom logs (logs "A" and "B") are mounted on the burner grate by placing them into the slots. -
Page 15: Model M40Dv-Pfc
M40DV-PFC Peninsula Gas Fireplace Operation - Model M40DV-PFC M40DV-PFC with Continuous Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. -
Page 16: Model M40Dv-Pfc-I
M40DV-PFC Peninsula Gas Fireplace Operation - Model M40DV-PFC-I M40DV-PFC-I with Honeywell Intermittent Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. -
Page 17: Maintenance
M40DV-PFC Peninsula Gas Fireplace Maintenance Gas Control Valve CAUTION • Fireplace gas control must be in the “OFF” position and pilot Power Generator and main burners extinguished when cleaning appliance with a vacuum. Pilot Adjustment Screw • Glass and logs can get very hot. Handle only when cool. -
Page 18: Troubleshooting
M40DV-PFC Peninsula Gas Fireplace Maintenance Troubleshooting M40DV-PFC Troubleshooting M40DV-PFC-I The following is a troubleshooting chart of possible problems: HONEYWELL SV 9500 /SV9600 PROBLEM CORRECTIVE ACTION Troubleshooting Sequence Noisy Pilot Flame Locate pilot adjustment screw on the NOTE: Before Troubleshooting, Familiarize Yourself With front of the gas control valve. -
Page 19: Warranty
The Warranty The Companies warrants the Montigo Gas Appliance to be free from defects in materials and workmanship at the time of manufacture. On the Montigo, there is a ten- year warranty on the firebox and its components, a five-year warranty on the main burner and pilot burner, and a one-year warranty on the gas control valve and fibre logs. -
Page 20: Termination Locations
