Manual
WARNING!
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property
damage. Refer to this manual. For
assistance or additional information
consult a qualified installer, service
agency or the gas supplier.
What To Do If You Smell Gas:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
For Your Safety:
Do not store or use gaso-
line or other flammable
vapors and liquids in
the vicinity of this or any
other appliance.

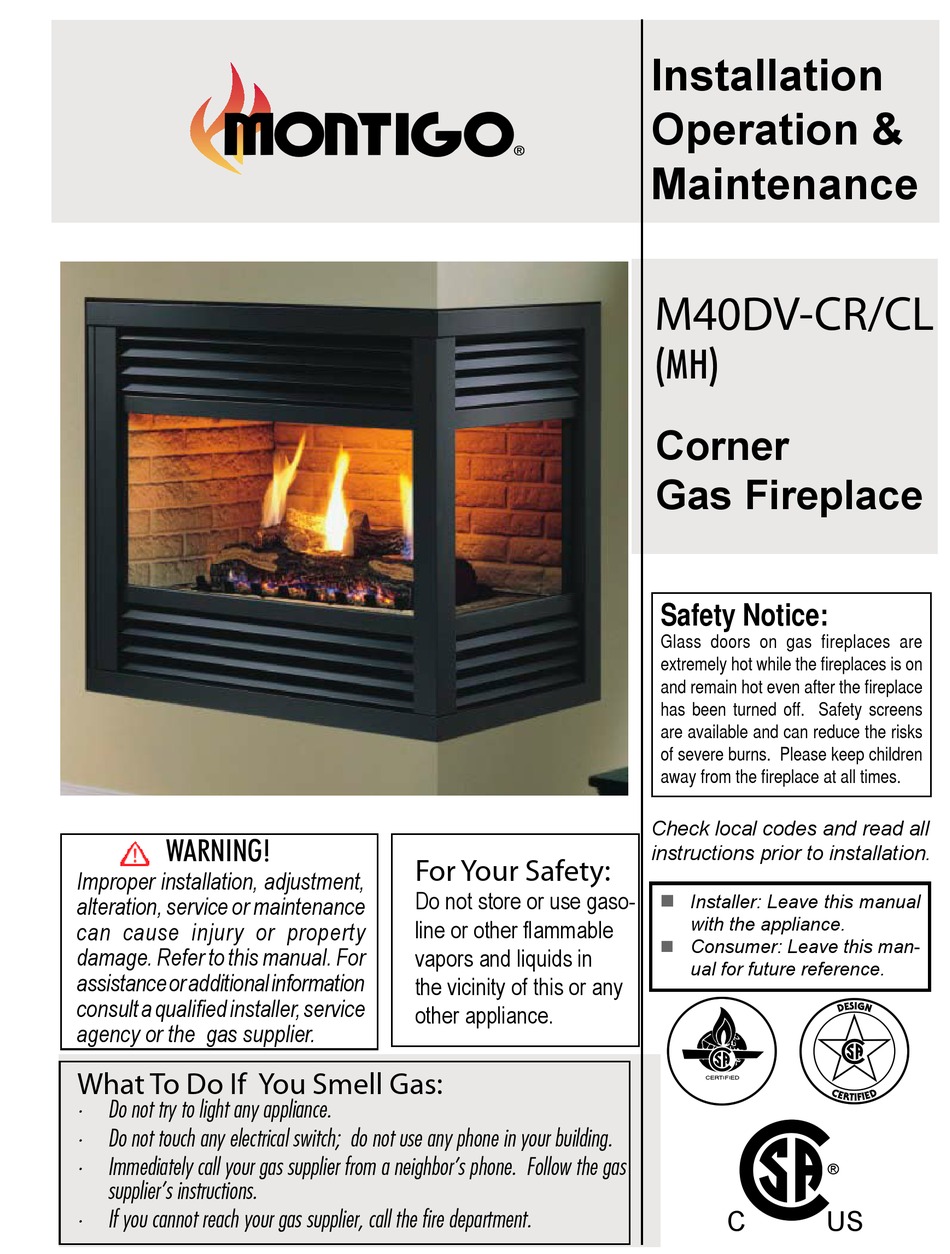

Installation
Operation &
Maintenance
M40DV-CR/CL
(MH)
Corner
Gas Fireplace
Safety Notice:
Glass doors on gas fireplaces are
extremely hot while the fireplaces is on
and remain hot even after the fireplace
has been turned off. Safety screens
are available and can reduce the risks
of severe burns. Please keep children
away from the fireplace at all times.
Check local codes and read all
instructions prior to installation.
Installer: Leave this manual
with the appliance.
Consumer: Leave this man-
ual for future reference.
®
C
US
Advertisement
Table of Contents
Related Manuals for Montigo M40DV-CR
Summary of Contents for Montigo M40DV-CR
-
Page 1: Safety Notice
Installation Operation & Maintenance M40DV-CR/CL (MH) Corner Gas Fireplace Safety Notice: Glass doors on gas fireplaces are extremely hot while the fireplaces is on and remain hot even after the fireplace has been turned off. Safety screens are available and can reduce the risks of severe burns. -
Page 2: Table Of Contents
The Montigo gas fireplace you have selected is designed to provide the utmost in safety, reliability, and engineering standards. The information contained in this owner's manual, unless noted other- wise, applies to all models, and gas control systems. -
Page 3: Introduction
Propane at 30,000 BTU/H (8.79 Kilowatts) max. input, and 24,000 BTU/H (7.03 Kilowatts) min. input. The Montigo warranty will be voided by, and Montigo disclaims any responsibility for, the following actions: Modification of the fireplace and/or components including Direct- ... -
Page 4: Installation
Front View 41” 38” 24” Figure 2a. Framing dimensions. 40” End View Top View Figure 1. Fireplace dimensions. Clearances The M40DV-CR/CL clearances to combustible materials are: Top* 8" Rear 1½" Closed Side 1½" Floor Combustible Mantle** 6"... -
Page 5: Installing The Gasline
Installation Installing The Gas Line Vent Installation The gas line must be installed before finishing the M40DV-CR/CL fire- This section covers the installation of direct venting and terminations. place. Natural Gas requires a minimum inlet gas supply pressure of For a detailed diagram of allowed termination locations, see Appen- 5.5"... -
Page 6: Direct Vent Installation
M40DV-CR/CL Corner Gas Fireplace Installation Vent Terminations Installing Heat Guards over Terminations Installing Terminations with Built-In Frames Ensure that the two long mounting brackets are facing the bot- Frame the termination opening to 11" x 11". tom of the termination. (See inset). This will provide more heat... -
Page 7: (Installing The Flue Cover)
Use the vent graph below to determine an acceptable vent run. Unacceptable venting can affect the fireplace's An M40DV-CR/CL is shipped ready for a rear vent installation. performance. The outer flue cover must be secured in place with a minimum of ... -
Page 8: Rear Vent Horizontal Venting Runs
M40DV-CR/CL Corner Gas Fireplace Installation Horizontal Vent Installation To install the heat shield, slide one section over the vent pipe on the inside of the wall opening, with the circular portion inside the wall cav- Vent systems that terminate through a wall may comprise up to seven ity. -
Page 9: Rear Vent Vertical Venting Runs
M40DV-CR/CL Corner Gas Fireplace Installation Rear Vent Vertical Vent Installations Vertical Installations with a rise greater than 12' can be reduced from 5/8 to 4/7 venting. • minimum 2' (two feet) above the highest point where vent passes through the roof. -
Page 10: Top Vent Venting Requirements
Installation Of Top Vent DV Before you install any venting, you must determine whether the A complete M40DV-CR/CL vent system may comprise up to five dif- venting run will be acceptable. Unacceptable venting can affect the ferent types of components: fireplace's combustion. -
Page 11: Top Vent Horizontal Venting Runs
M40DV-CR/CL Corner Gas Fireplace Installation Top Vent Example: A 10' section and an elbow used in conjunction with 3 ft. flex section (PFL-3) will, when extended in a five foot chase, allow for a maxi- mum horizontal run of twelve and one-half feet from the centre of the fireplace to outside wall and a minimum of 7'6"... -
Page 12: Top Vent Vertical Venting Runs
M40DV-CR/CL Corner Gas Fireplace Installation Top Vent Installation Of Vertical Vent DV A maximum of two offsets (each offset has two 90° bends) may be Vertical Terminations must be installed: made if the length of the offsets does not exceed 25% of the vertical •... -
Page 13: Reduced Vertical Venting
M40DV-CR/CL Corner Gas Fireplace Installation Reduced Vertical Installation It is possible to reduce vertical vent runs from 5"/8" venting to 4"/7" venting. Reduced vertical venting may only be used when the installation exeeds 12 feet and terminates through the roof, and if the vertical vent reducer is used with the following venting configuration. -
Page 14: Wiring
40 VA Transformer Re-install the side panels and louvre assemblies by reversing the Wall Switch above steps. Figure 21. Wiring for the M40DV-CR/CL-I with Honeywell gas control and pilot. Removing and Installing the Glass Doors Removing the Louvres and Side Panels Rotate the upper end louvre assembly approximately 110°... -
Page 15: Installing The Logset
Installing the Logs and Embers See Pages 15-16. Bottom Logs The M40DV-CR/CL is supplied with five (5) fibre logs. The two large Burner Adjustment bottom logs (logs "A" and "B") are mounted on the burner grate by placing them into the slots. -
Page 16: Model M40Dv-Cr/Cl
M40DV-CR/CL Corner Gas Fireplace Operation - Model M40DV-CR/CL M40DV-CR/CL with Continuous Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. -
Page 17: Model M40Dv-Cr/Cl-I
M40DV-CR/CL Corner Gas Fireplace Operation - Model M40DV-CR/CL-I M40DV-CR/CL-I with Honeywell Intermittent Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. -
Page 18: Model M40Dv-Cr/Cl-F
M40DV-CR/CL Corner Gas Fireplace Operation - Model M40DV-CR/CL-F with Proflame SIT Electronic Ignition M40DV-CR/CL-F with Proflame SIT Electronic Ignition For Your Safety - READ BEFORE LIGHTING: with American Flame Electronic Ignition WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. -
Page 19: Maintenance
M40DV-CR/CL Corner Gas Fireplace Maintenance Gas Control Valve WARNING! Power Do not attempt to clean glass when hot. Generator Pilot Adjustment Screw Do not clean glass with abrasive materials as any glass etch- ing may cause premature glass failure. Wall Switch... - Page 20 M40DV-CR/CL Corner Gas Fireplace Maintenance Troubleshooting Troubleshooting M40DV-CR/CL M40DV-CR/CL-I The following is a troubleshooting chart of possible problems: PROBLEM CORRECTIVE ACTION Noisy Pilot Flame Locate pilot adjustment screw on the front of the gas control valve. Flame is decreased by turning adjustment screw clockwise.
-
Page 21: Warranty
The duration of any implied warranty with respect to this Montigo Gas Appliance is limited to the duration of the foregoing warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above may not apply to you. -
Page 22: Termination Locations
M40DV-CR/CL Corner Gas Fireplace Appendix A - Termination Locations A = clearance to the termination frame above grade, veranda, porch, deck, [*6 feet (1.8 m) minimum] or balcony [16 inches (41 cm) minimum] clearance above paved sidewalk or a paved driveway located on †... -
Page 23: Mobile Home Approved Models
Test Connection Figure B1. Sit Nova 820 gas valve. M40DV-CR/CL-MH Mobile Home The mobile home option is a factory installed on the M40DV-CR/CL- Conversion Kits MH gas fireplace, and is for use in a manufactured or mobile home. The M40DV-CR/CL-MH mobile home appliance is field convertible The standard M40DV-CR/CL or the M40DV-CR/CL-I equipped with between Natural Gas (NG) and Propane (LP). -
Page 24: State Of Massachusetts / Amendment
M40DV-CR/CL Corner Gas Fireplace Appendix C - State of Massachusetts Amendment (Gas Fireplace / Equipment sold in the State of Massachusetts) 5.08: Modifications to NFPA-54, Chapter 10 (1) Revise NFPA-54 section 10.5.4.2 by adding a second exception as follows: Existing chimneys shall be permitted to have their use continued when a gas conversion burner is installed, and shall be equipped with a manually reset device that will automatically shut off the gas to the burner in the event of a sustained back-draft (2) Revise 10.8.3 by... -
Page 25: Notes
M40DV-CR/CL Corner Gas Fireplace Notes: P/N XG0206 Page 25... - Page 26 XG0206 - 092508 Canadian Heating Products Inc. Montigo Del Ray Corp. Langley, BC V4W 4A1 Ferndale, WA 98248...
