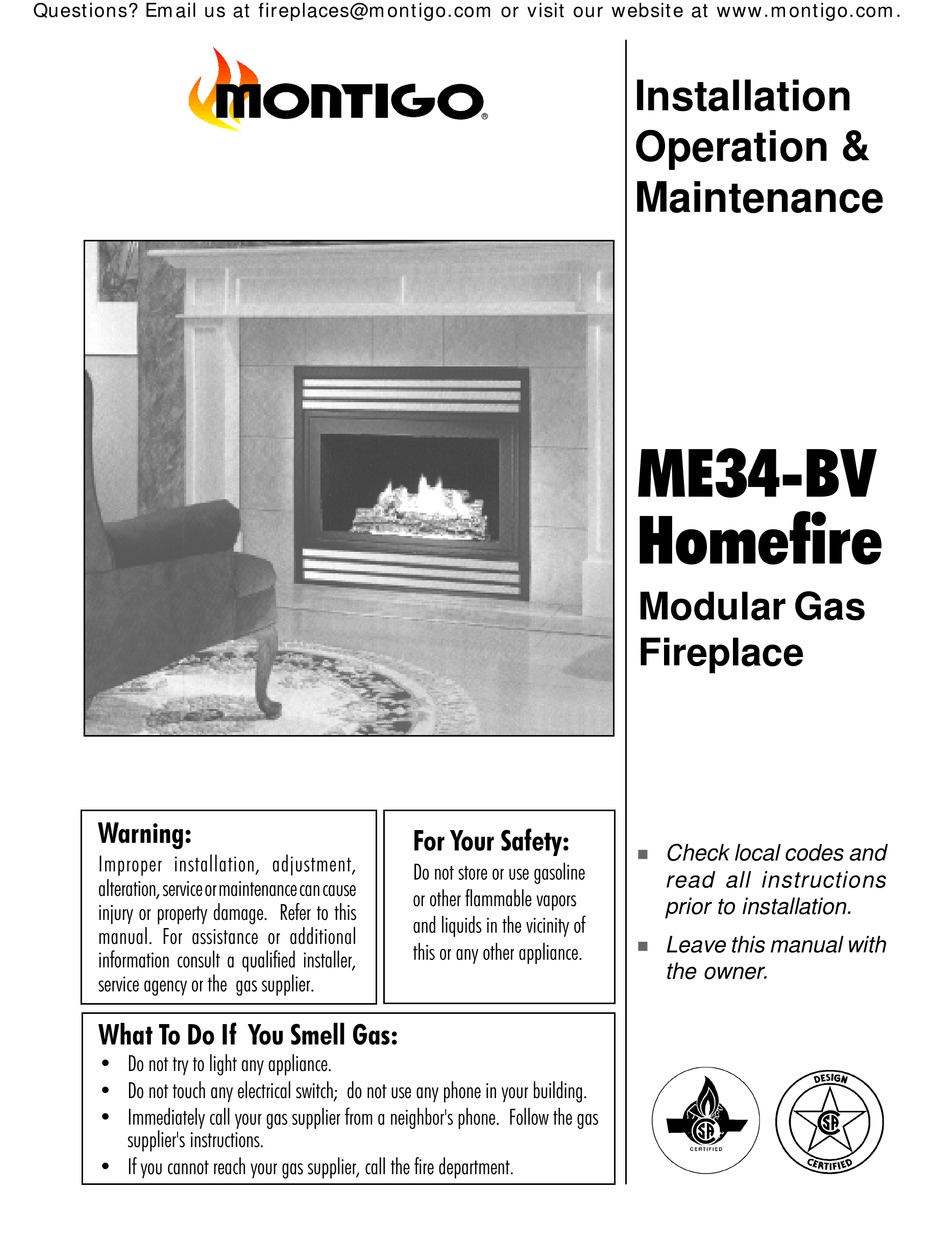

- Page 1 Questions? Email us at fireplaces@montigo.com or visit our website at www.montigo.com. Installation ® Operation & Maintenance Modular Gas Fireplace Check local codes and read all instructions prior to installation. Leave this manual with the owner.
- Page 2 ME34-BV Homefire Table Of Contents Introduction CAUTIONS Page 2...
-
Page 3: Installing The Fireplace Shell
ME34-BV Homefire Installation Installing The Fireplace Shell 31 1/2 Ø4" B-Vent 8 ½ Top View 24 1/2 15 3/4 4 3/4 38 ½ 30 ¾ 12 1/8 4 3/4 59 3/8 Front View Side View 22 ¼ Top* 16" 0" clearance to corners only Back 0"... -
Page 4: Installing The Gas Line
ME34-BV Homefire Installation Installing The Gas Line B-Vent Installation 4" B-Vent disconnected isolated Note: appliance connection valve and valve train Installing The Remote Switch Page 4... -
Page 5: Finishing Around The Fireplace
ME34-BV Homefire Installation Finishing Around the Fireplace Sheetrock/ Drywall Header Combustible construction allowed in shaded area. Combustible Facing Alkyd sealer Top of fireplace Wiring ME34-BV-I Honeywell (Q3450) Pilot Assembly Pilot Electrical Harness Connector Honeywell Gas Control (SV9501M) Gas Control Junction Box Cover Connector Fuse Junction Box... -
Page 6: Installing The Log Set
ME34-BV Homefire Installation Installing the Log Set optional L1-WH L2-BLK Quick Connect plug to motor 115/1/60 Supply L1 L2 Page 6... -
Page 7: Removing And Installing
ME34-BV Homefire Installation Removing and Installing Removing and Installing the Insert the Door Slot 'A' Tab 'B' Door surround Glass door and frame Magnet Mounting Bracket Pull bottom of door surround outwards and upwards. Front INSET 2 INSET 1 Slot Machine Screws Venting Plate Tabs... -
Page 8: Lighting Instructions
ME34-BV Homefire Operation - Model ME34-BV with Continuous Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Lighting Instructions: Gas Control Knob NOTE: Knob cannot be turned from... - Page 9 ME34-BV Homefire Operation - Model ME34-BV-I with Honeywell Intermittent Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Lighting Instructions: Inlet Gas Control Switch...
-
Page 10: Operation
ME34-BV Homefire Operation Maintenance Lighting Instructions CAUTIONS Burner Adjustment General 'Hi-Lo' Adjustment Knob Gas Control Knob (Shown in "Pilot" postion.) Cleaning WARNING: Page 10... -
Page 11: Gas Control Valve
ME34-BV Homefire Maintenance Gas Control Valve Troubleshooting ME34-BV-I Power Generator Pilot Adjustment Screw Before Troubleshooting, Familiarize Yourself With Wall Switch The Startup And Checkout Procedure. Inlet Pressure Manifold Pressure Spill Switch Test Connection Sit Nova 820 Pilot Burner Adjustment Troubleshooting ME34-BV Page 11... -
Page 12: Warranty
Other Rights Other Rights Other Rights Canadian Heating Products Inc. and/or Montigo DelRay Corp. reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products. Page 12... -
Page 13: Appendix A - Spare Parts
ME34-BV Homefire Appendix A - Spare Parts Page 13... - Page 14 XG0304 Rev. 02 - 09/2000 Canadian Heating Products Inc. Montigo Del Ray Corp.
