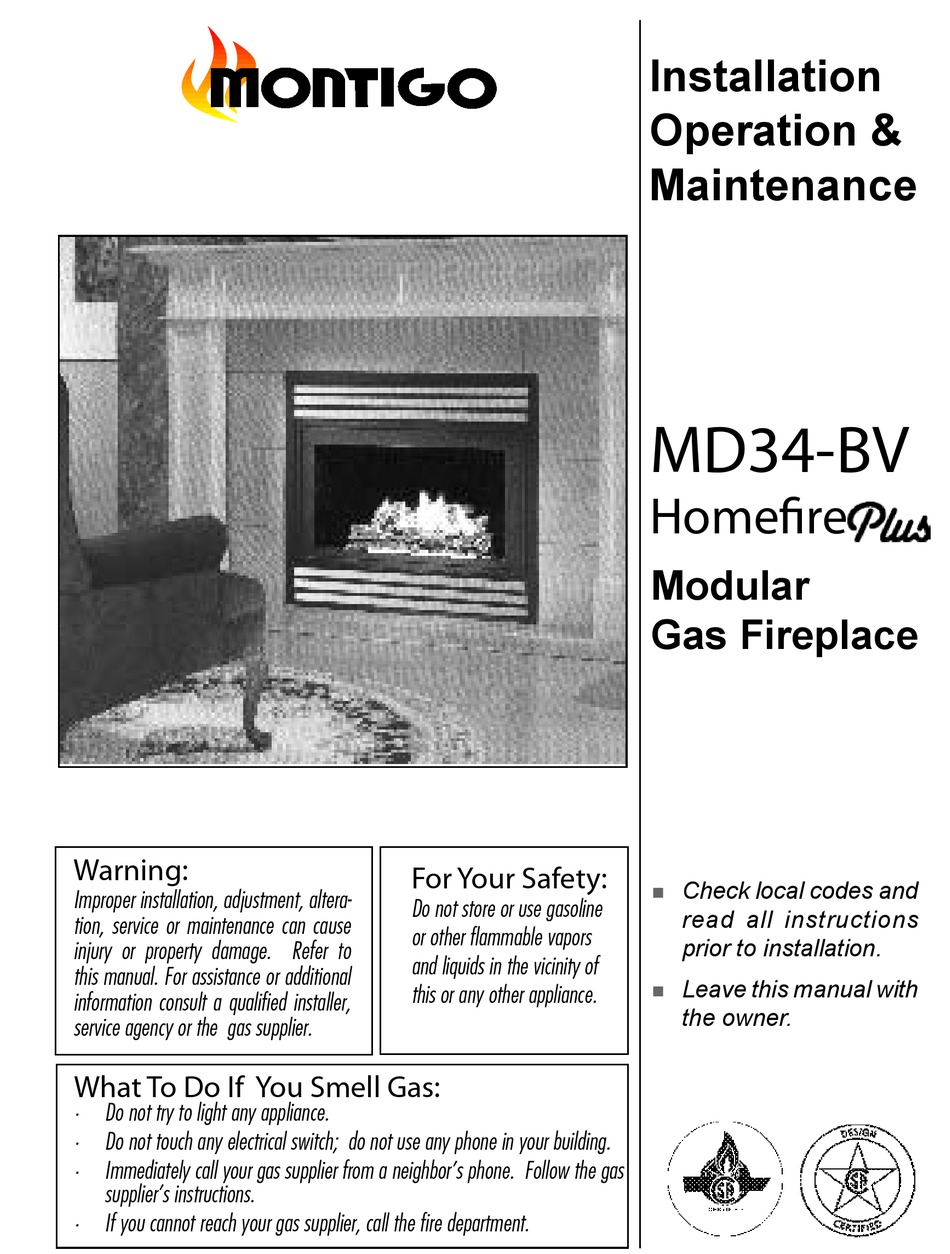

Warning:
Improper installation, adjustment, altera-
tion, service or maintenance can cause
injury or property damage. Refer to
this manual. For assistance or additional
information consult a qualified installer,
service agency or the gas supplier.
What To Do If You Smell Gas:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
For Your Safety:
Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
Installation
Operation &
Maintenance
MD34-BV
Homefire
Modular
Gas Fireplace
Check local codes and
read all instructions
prior to installation.
Leave this manual with
the owner.
Advertisement
Table of Contents
Related Manuals for Montigo MD34-BV Homefire Plus
Summary of Contents for Montigo MD34-BV Homefire Plus
-
Page 1: What To Do If You Smell Gas
Installation Operation & Maintenance MD34-BV Homefire Modular Gas Fireplace Warning: For Your Safety: Check local codes and Improper installation, adjustment, altera- Do not store or use gasoline read all instructions tion, service or maintenance can cause or other flammable vapors prior to installation. -
Page 2: Table Of Contents
MD34-BV Homefire Introduction Table Of Contents About this fireplace: Thank you for choosing a Montigo Gas Fireplace. The MD34-BV fea- Introduction ................2 tures a dual burner with glowing embers and a realistic fibre logset. Installation TheMD34 is available in two versions: Installing the Fireplace Shell .......... -
Page 3: Installation
MD34-BV Homefire Installation Installing The Fireplace Shell The fireplace may be installed in any location that maintains proper Unprotected combustible walls which are perpendicular to the clearances to air conditioning ducts, electrical wiring and plumbing. fireplace opening, must not project beyond the shaded area shown in Safety, as well as efficiency of operation, must be considered when Figure 5b. -
Page 4: Installing The Gasline
MD34-BV Homefire Installation Installing The Gas Line B-Vent Installation The gas line must be installed before finishing the MD34-BV Fire- The MD34-BV is certified for use with standard 4" B-Vent and place. Natural Gas requires a minimum inlet gas supply pressure of requires no B-Vent appliance connector. -
Page 5: Facing
MD34-BV Homefire Installation Finishing Around the Fireplace Sheetrock/ Drywall Combustible mantels and mouldings may be safely installed over the Header top and on the front of the fireplace provided that they do not project beyond shaded area shown in Figure 5a. Side wall clearances are 3". Combustible surrounds may be installed with 3"... -
Page 6: Wiring
MD34-BV Homefire Installation Installing the Log Set Wiring for the optional Fan Kit The ME34-BV is supplied with four (4) soft fibre logs. Logs "A" and All M34 Series Modular fireplaces may be equipped with optional fan "B" are permanently attached to a fibre base, which is pre-installed or blower kits for circulating heat into the living space. -
Page 7: Removing And Installing The Insert
MD34-BV Homefire Installation Removing and Installing Removing and Installing the Insert the Door You may remove the insert to protect it from theft and damage dur- Removing the door surround: ing construction. The door surround is held in place by two metal clips at the top, and 1. -
Page 8: Operation
MD34-BV Homefire Operation - Model MD34-BV with Continuous Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by hand. ... -
Page 9: Lighting Instructions
MD34-BV Homefire Operation - Model MD34-BV-I with Electronic (Intermittent) Ignition For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. If you cannot reach your gas supplier, call the Fire ... -
Page 10: Operation
MD34-BV Homefire Operation Maintenance Lighting Instructions CAUTIONS See pages 8 and 9. Fireplace gas control must be in the “OFF” position and pilot and main burners extinguished when cleaning appliance with Burner Adjustment a vacuum. Doors and logs can get very hot. Handle only when cool. The MD34-DV fireplace is equipped with an adjustable burner, al- lowing you to raise or lower the flames. -
Page 11: Maintenance
MD34-BV Homefire Maintenance Gas Control Valve Troubleshooting MD34-BV-I Thermocouple Power Vent Safety Switch Connection Generator HONEYWELL SV 9500 /SV9600 Troubleshooting Sequence Pilot Adjustment Screw noTE: Before Troubleshooting, Familiarize Yourself With The Startup And Checkout Procedure. Wall Switch START INSET C H EC K: ·... -
Page 12: Warranty
The duration of any implied warranty with respect to this Montigo Gas Appliance is limited to the duration of the foregoing warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above may not apply to you. -
Page 13: Appendix A. Spare Parts
MD34-BV Homefire Appendix A - Spare Parts Spare / Replacement Parts: 1. Horizontal Trim Kits 2. 4-piece fibre logset Available Options and Accessories: 3. 3-Fan Pack 4. Variable Speed Blower Kit 5. Hand-Held Remote Control 6. 3-Piece Picture Frame Surround (PFO) 7. - Page 14 XG0305 Rev. 03 - 09/2002 Montigo Del Ray Corp. Canadian Heating Products Inc. Ferndale, WA 98248 Langley, BC V4W 4A1...
