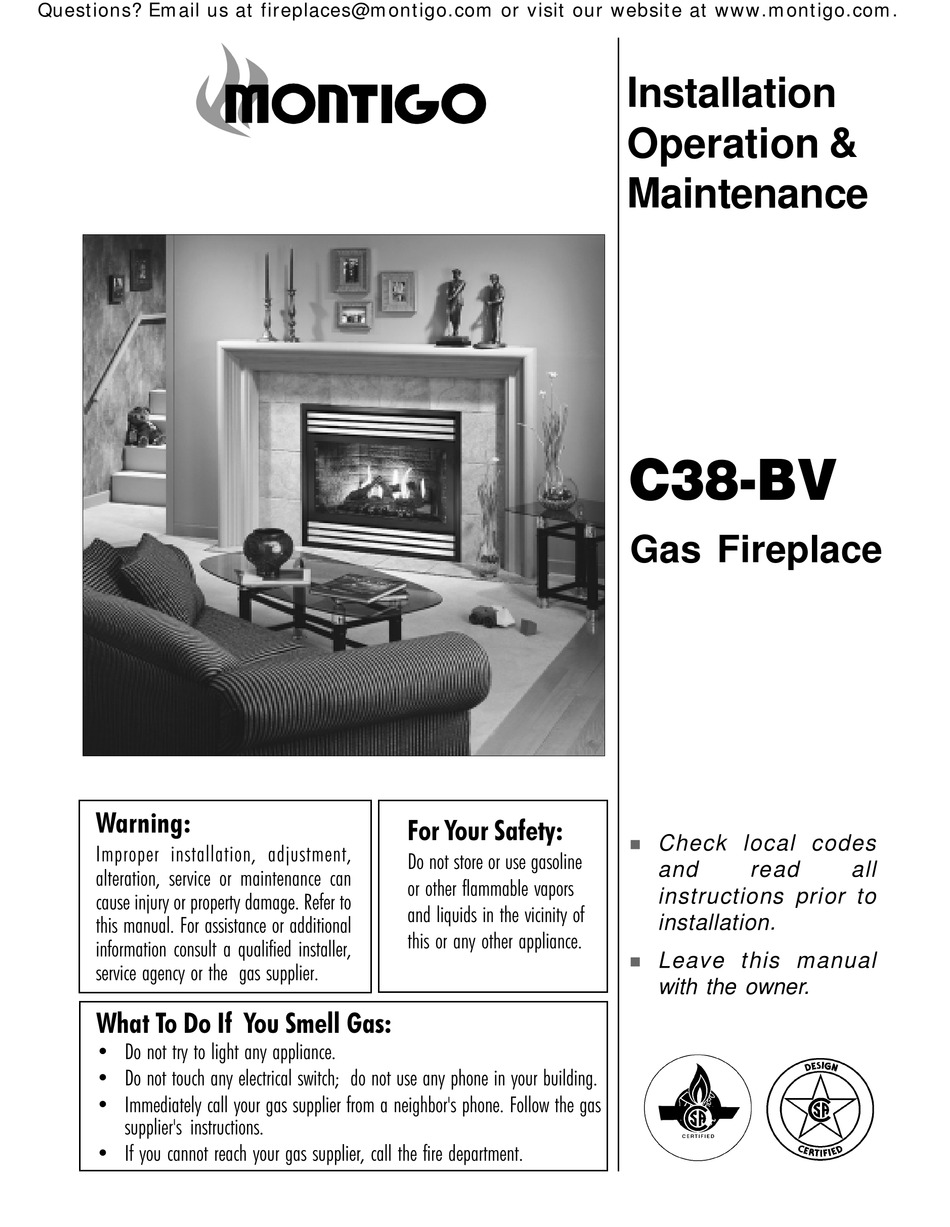

- Page 1 Questions? Email us at fireplaces@montigo.com or visit our website at www.montigo.com. Installation Operation & Maintenance C38-BV Gas Fireplace Check local codes read instructions prior to installation. Leave this manual with the owner.
- Page 2 C38-BV Gas Fireplace Introduction Table Of Contents CAUTIONS Page 2...
-
Page 3: Installing The Fireplace Shell
C38-BV Gas Fireplace Installation Installing The Fireplace Shell 15" Back 0" Side 0" Floor 0" Mantle* 6" B-Vent 2"** (up to 7 1/2 ft) Page 3... -
Page 4: Installing The Gas Line
C38-BV Gas Fireplace Installation Installing The Gas Line B-Vent Installation 5" B-Vent Note: Note: appliance connection valve and valve train Installing The Remote Switch Page 4... -
Page 5: Finishing Around The Fireplace
C38-BV Gas Fireplace Installation Finishing Around the Fireplace Alkyd sealer Sheetrock/ Drywall Header 45° Page 5... -
Page 6: Removing And Installing The Door
C38-BV Gas Fireplace Installation Wiring C38-BV-I Honeywell (Q3450) Pilot Assembly Pilot Electrical Harness Connector Honeywell Gas Control (SV9501M) Gas Control Junction Box Cover Connector Fuse Junction Box Fan Plug Receptacle Black 115VAC White 24VAC Green Grnd Screw 40 VA Transformer... - Page 7 C38-BV Gas Fireplace Installation Installing the Log Set Installing the Trim & Baffle Page 7...
-
Page 8: Lighting Instructions
C38-BV Gas Fireplace Operation - Model C38-BV C38-BV with Continuous Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. - Page 9 C38-BV Gas Fireplace Operation - Model C38-BV-I C38-BV-I with Honeywell Electronic Ignition For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 10: Operation
C38-BV Gas Fireplace Operation Maintenance Lighting Instructions CAUTIONS Burner Adjustment General Cleaning Note: WARNING: Page 10... -
Page 11: Gas Control Valve
C38-BV Gas Fireplace Maintenance Troubleshooting Gas Control Valve C38-BV-I Power Generator Pilot Adjustment Screw Before Troubleshooting, Familiarize Yourself With Wall Switch The Startup And Checkout Procedure. Inlet Pressure Manifold Pressure Test Connection Sit Nova 820 Pilot Burner Adjustment Troubleshooting C38-BV... -
Page 12: Warranty
Other Rights Other Rights Other Rights Canadian Heating Products Inc. and/or Montigo DelRay Corp. reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products. Page 12... - Page 13 C38-BV Gas Fireplace Notes Page 13...
- Page 14 XG0314 Rev. 1- April 10/01 Canadian Heating Products Inc. Montigo Del Ray Corp.
