Warning:
Improper installation, adjustment, altera-
tion, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional
information consult a qualified installer,
service agency or the gas supplier.
What To Do If You Smell Gas:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
For Your Safety:
Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
Installation
Operation &
Maintenance
C38-BV
Gas Fireplace
Check local codes and
read all instructions
prior to installation.
Leave this manual with
the owner.
Advertisement
Table of Contents
Related Manuals for Montigo C38-BV
Summary of Contents for Montigo C38-BV
-

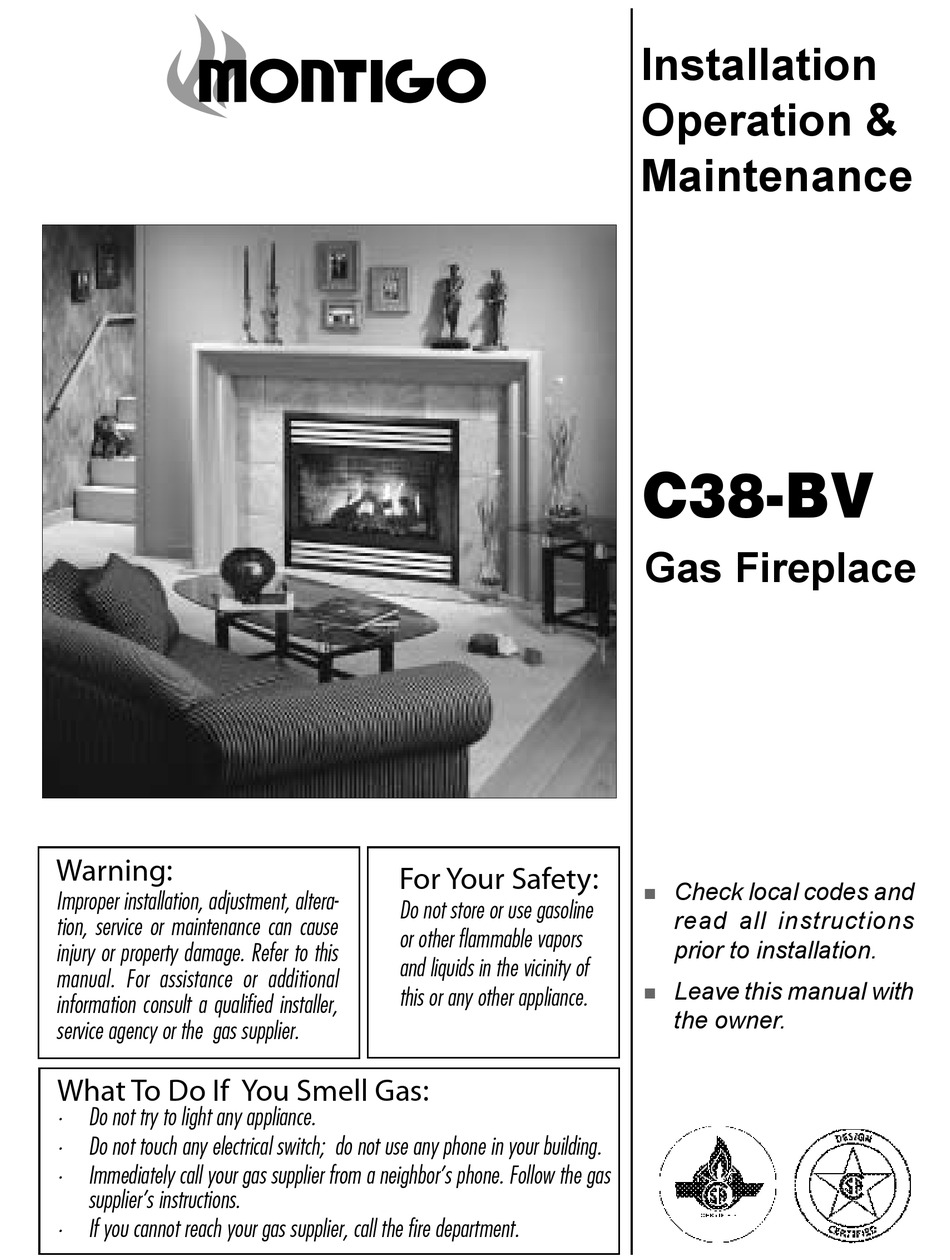

Page 1: What To Do If You Smell Gas
Installation Operation & Maintenance C38-BV Gas Fireplace Warning: For Your Safety: Check local codes and Improper installation, adjustment, altera- Do not store or use gasoline read all instructions tion, service or maintenance can cause or other flammable vapors prior to installation. -
Page 2: Table Of Contents
Thank You for choosing a Montigo C-Series Fireplace. About the C38 Fireplace: Introduction ................2 The C38-BV includes a 23,000 BTU dual burner with embers and a Installation five piece ceramic logset. This model is available in four versions. Installing the Fireplace Shell .......... 3 ... -
Page 3: Installation
Fireplace dimensions. Clearances Figure 3. Corner framing dimensions. These clearances apply to all dimensions except the framed opening, where the clearance to combustibles is 0". The C38-BV clearances to combustible materials are: Installing a Shelf Over the Fireplace Top 15"... -
Page 4: Installing The Gasline
B-Vent Installation The gas line must be installed before finishing the C38-BV Fireplace. The C38-BV is certified for use with standard 5" B-Vent and requires Natural Gas requires a minimum inlet gas supply pressure of 5.5" no B-Vent appliance connector. Simply attach the B-Vent to the fire- W.C. -
Page 5: Facing
C38-BV Gas Fireplace Installation Finishing Around the Fireplace Combustible mantels and mouldings may be safely installed over the Mantels & Surrounds top and on the front of the fireplace provided that they do not project NOTE: National Canadian Gas Association mantel test requirements beyond shaded area shown in Figure 6a. -
Page 6: Wiring
40 VA Transformer Limit Wall Switch Switch Figure 8. Wiring for the C38-BV-I with Honeywell gas control and pilot. Removing and Installing the Door Removing the Door: Remove the trim (as described on the next page) to access the door latches. -
Page 7: Installing The Logset
Installing the Logs: If logs are not placed properly, excessive sooting will result. The C38-BV is supplied with five ceramic fibre logs. Unpack the logs The surface of the logs will crack due to the heat from the ... -
Page 8: Operation
C38-BV Gas Fireplace Operation - Model C38-BV C38-BV with Continuous Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by hand. -
Page 9: Lighting Instructions
C38-BV Gas Fireplace Operation - Model C38-BV-I C38-BV-I with Honeywell Electronic Ignition For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance is equipped with an ignition system that If you cannot reach your gas supplier, call the Fire ... -
Page 10: Operation
Burner Adjustment Doors and logs can get very hot. Handle only when cool. The C38-BV is equipped with an adjustable burner, allowing you to raise or lower the flames. To adjust the flames, locate the black knob General marked 'Hi-Lo', in the centre of the gas control valve (See Figure 11). - Page 11 C38-BV Gas Fireplace Maintenance Troubleshooting Gas Control Valve C38-BV-I HONEYWELL SV 9500 /SV9600 Power Generator Troubleshooting Sequence Pilot Adjustment Screw noTE: Before Troubleshooting, Familiarize Yourself With Wall Switch The Startup And Checkout Procedure. START INSET C H EC K: · T urnG asSup p lyo ff ·...
-
Page 12: Warranty
The duration of any implied warranty with respect to this Montigo Gas Appliance is limited to the duration of the foregoing warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above may not apply to you. - Page 13 C38-BV Gas Fireplace Notes Page 1 Part No. XG0314...
- Page 14 XG0314 Rev. 1- April 10/01 Montigo Del Ray Corp. Canadian Heating Products Inc. Ferndale, WA 98248 Langley, BC V4W 4A1...
