Summary of Contents for Doro 760x

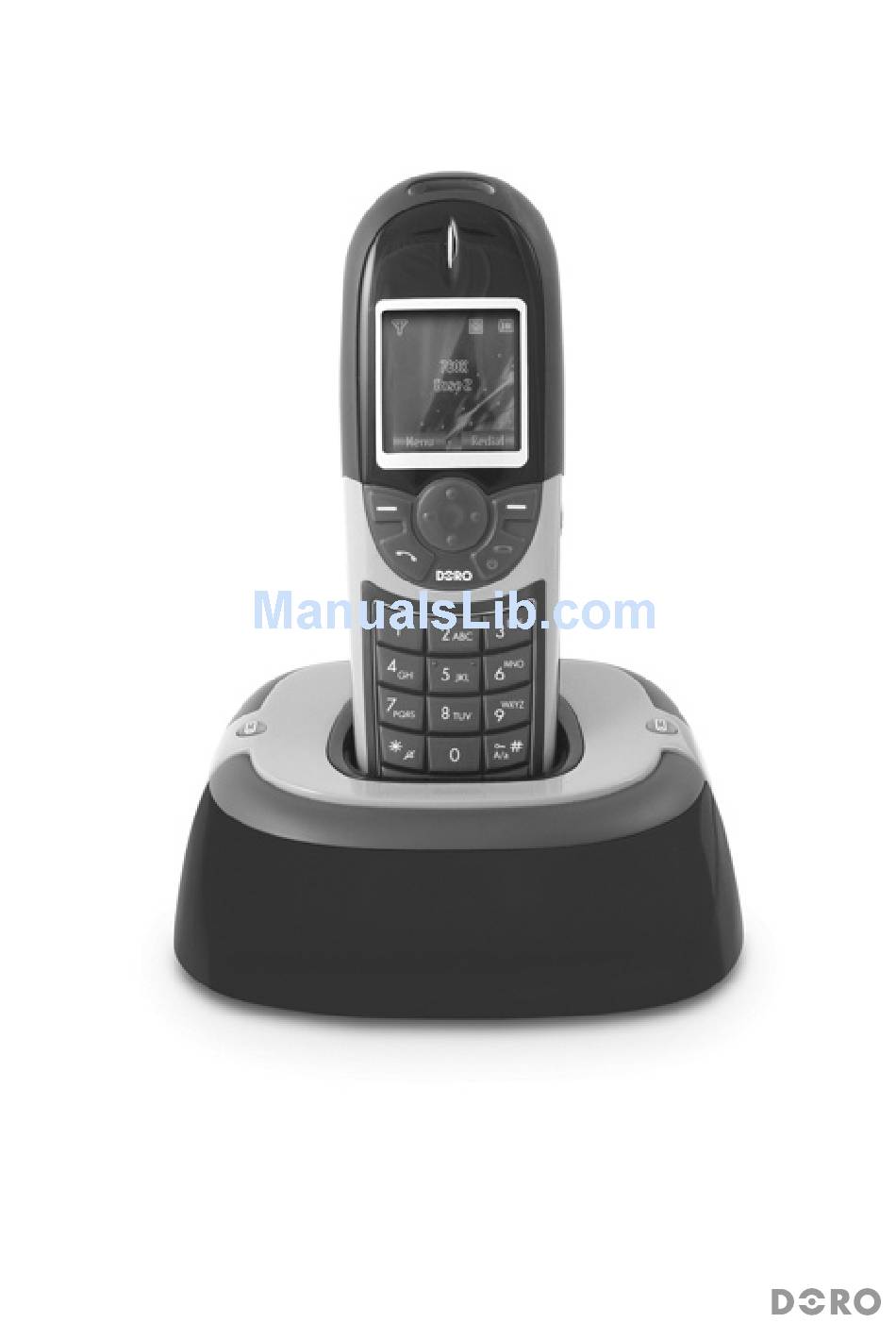

- Page 1 760X...
- Page 2 English Scroll button Flash Headset connector Left menu button/OK and key lock Right menu key/ Delete/Redial Line/Speaker button Disconnect and Off/On and ringer off/on...
-
Page 3: Table Of Contents
English Connection ......1 Key lock ........4 Signals and display ....11 The display......2 Speaker/Group listening ..4 System settings ......12 Base unit indicators ....2 Paging ........4 Call barring......13 Area of use ......3 Phonebook ......5 Net. Provider ......13 Battery ........3 Incoming numbers (caller ID) 6 Expanded system (+1)...14 Coverage ........3 SMS messages .....7 Specific absorption rate Making a call ......3 Network services ....9 (SAR) ........14 Receiving a call ......3 Date/Time/Alarm....9 Declaration of conformity . -
Page 4: The Display
English The display Indicator Function Shown within range of the base unit. Flashes when out of range. INT Internal call. Ring signal turned off with the key. Handset is connected (during calls). Message indication*. Caller ID/New SMS received*. Alarm activated. Battery charge indicator. INT 1 Handset number (when using more than one handset). Base 1 The handset is connected to base unit 1. Press 19 Key lock activated. Function description for the key shown below the text, e.g. OK to confirm. * Only functions in certain countries. To conserve battery power the display is very dark in standby mode, press ☼ to illuminate. Base unit indicators Illuminated on standby, flashes when telephone rings. -
Page 5: Area Of Use
This is to minimize the risk of interference. It is normal for the device to become warm during charging and is not dangerous. Use only DORO original batteries. The guarantee does not cover any damage caused by incorrect batteries. Coverage The telephone’s coverage will vary normally between 40 and 300 metres, depending on... -
Page 6: Scroll Button
English Volume control Adjust the volume during a call with the scroll button. Turning the handset Off/On Press and hold the button for a few seconds to turn the handset off or on. Redialling Press Redial and scroll through the 10 last dialled numbers. Press In order to protect codes, e.g. for Internet banking, only numbers shorter than 18 digits are saved. Temporary silent mode When someone calls, you can press Silent to turn off the handset ring signal. Key lock until Press 19 is displayed. Lock the keypad by pressing Unlock keypad by pressing The keypad will be unlocked if the handset is placed in the base unit. -
Page 7: Phonebook
English Phonebook The phonebook can store 100 names and telephone numbers. If you subscribe to a caller ID service the name in the phonebook will be shown for incoming calls. It is possible to choose between various ring signals (VIP) for the numbers saved in the phonebook (only functions if you subscribe to a caller ID service). You can select the desired VIP melody, see the Signals chapter. However, the first signal can sound normal before the number is compared with the phonebook. Letters Each number key has been allocated certain letters. The phone book is arranged according to the order of the buttons, which is not the same for all languages............[Space] ............Change between upper/lower case Store name/number in handset 1. Press . Press Option. 2. Scroll to Add Entry. Press OK. 3. Press equivalent digit key one or more times for desired name. 4. Scroll to <Number>. Enter the telephone number, including the area code. Press OK. You can insert a space in the telephone number by pressing and holding R. Dialling from the phonebook 1. Press 2. Scroll among the entries. It is also possible to make a quick search in the phonebook... -
Page 8: Incoming Numbers (Caller Id)
English Copying to/from SIM card Development of SIM cards is very rapid, and therefore we cannot guarantee that all available cards on the market will function. 1. Insert the SIM card into the base unit. 2. Press . Press Option. 3. Scroll to Copy from/to SIM. Press OK. Some SIM cards are protected by a PIN code. 4. After a short time you can scroll to required entry. Press Option. 5. Scroll to Copy Entry or Copy All. Press OK. 6. Downloading may take a few minutes. You can then remove the SIM card. From SIM card Check that the phonebook has been properly stored on the SIM card. Refer to the mobile phone user manual. Check that the correct country code has been saved, see Other Settings. -
Page 9: Sms Messages
English SMS messages This feature requires a current Caller Id subscription to be in place and only applies to text message users (SMS). Please remember individual SMS features are country dependent and will vary or be unavailable. Further details regarding the SMS text message service are available from you local network provider. Maximum 160 signs per message. The memory can store up to 30 messages. New SMS message/Caller ID is indicated by * in standby mode. Australia only Short Message Service (SMS) facilities have been automatically activated for most Telstra® telephone services across Australia. SMS services may not be available to, or between, other service providers networks. A description of the SMS service provided by Telstra® can be found at: http://www.telstra.com.au/talkingtext There is no need to register your telephone with the Telstra® fixed line SMS service as your DORO telephone is supplied pre-configured. When you send your first text message the Telstra® network will automatically accept and deliver it (providing the destination offers a compatible service). Settings for your Telstra® fixed line SMS service can be changed by calling 0198 339 999 and following the prompts. UK only Program the correct SMS Center numbers as described on next page under the section Entering the telephone numbers in SMS centre/operator. E.g. for BT: Send: 14701709400 Receive: 080058752 Terminal No.: 9 To register for the SMS text messaging service you can either send a text message to another telephone number, or text REGISTER to 00000. Should you wish to reset your SMS settings text RESET to 00000. You can also request a delivery report by entering * 0 # prior to any SMS message. An SMS message can also be sent to a telephone number that does not support this feature, and will be received as a voice message. - Page 10 English Read new SMS/inbox 1. Press *. SMS is displayed. Press OK. 2. Scroll to Inbox. The display shows the number of messages. Press OK. 3. Scroll to selected entry. Press Read. Read your message. 4. Press Option. Scroll to the required selection: Use (reply/forward) Delete Delete list Copy to Phoneb 5. Press OK and follow the instructions in the display. Write new SMS message 1. Press *. SMS is displayed. Press OK. 2. Scroll to Write Message. Press OK. 3. Select if your message is to be sent as SMS (most usual) or e mail*. Press OK. 4. Press the equivalent number key for the desired text. switch between upper/lower case A/a insert a space or special character 5. Press Option. Scroll forward to send or store the message. Press OK. 6. Enter the telephone number, or press Option to retrieve the telephone number from the telephone book. 7. Press Option. 8. Scroll to Send. Press OK. 9. The display shows if the SMS has been sent successfully or not. If no error report is shown, the message has been sent successfully.
-
Page 11: Network Services
English Network services Most usual operator/extra services can be accessed via the menu or with the menu buttons during a call. Some functions are pre-programmed but is not certain that all functions will work on delivery as this will depend on the country of installation/ operator. You can change the codes that are sent, see Other Settings. Please note! You may have to pay extra for some services, contact your service provider for more information. Some services will not work unless you have contacted your service provider to activate them. Via the menu 1. Press Menu. Scroll to Net Services. Press OK. -
Page 12: Other Settings
English Other settings 1. Press Menu. 2. Scroll to Setting. Press OK. 3. Scroll to Handset. Press OK. 4. Scroll to required function e.g. Language. Press OK. 5. Scroll to required setting. Press OK. Auto Answer The handset answers incoming calls when it is lifted from the base unit. Vibrator The vibrator that is activated when the phone rings can be turned off/on. Select Base Only used in systems with more than one base unit. Language Language setting is explained in Connection. Country code See separate description for programming country codes. Baby Monitor Cordless baby monitor, see separate description. Abbr number Programming of speed dial numbers. To call one of these, press down the corresponding button Network It is possible to change the codes for operator services (CF=Call Forwarding). Register To register a new handset, see separate description. Handset PIN You can change the pin code (0000 on delivery). Default Set Resetting the handset. -
Page 13: Country Code
English Country Code To copy entries from the SIM card using “+”, it is often necessary to enter certain information. Telephone numbers on the SIM card that have been stored with the international dialling code 00 followed by the country code will also be changed. Example of settings for UK: Country code (domestic): 44 International prefix: 00 National prefix: 0... -
Page 14: System Settings
English System settings System PIN is 0000 on delivery. 1. Press Menu. Scroll to Setting. Press OK. 2. Scroll to Base Set. Press OK. 3. Scroll to desired function e.g. Access Code. Press OK. 4. Scroll to required setting. Press OK. Ring Priority You can decide whether all handsets should ring at once when there is an incoming call, or if one handset should start ringing before the others. You can set the number of ring signals for this function as well. Care dial The CARE memory is used to store e.g. a security number. The call will be connected via the speaker function by pressing the line key for about a second. Call barring Different types of outgoing calls are blocked, see separate description. Net. Provider Settings to use different service providers, see separate description. Dial Set Settings for advanced installations, see separate description. Deregister To deregister a handset from a base unit. Base PIN You can change the pin code (0000 on delivery). Default Set Reset base unit. -
Page 15: Call Barring
English Call barring The telephone can block certain types of outgoing calls. System PIN is 0000 on delivery. 1. Access Call Barring according to description on previous page. 2. Scroll to selected handset. Press OK. 3. Scroll to Barring Mode. Press OK. 4. Scroll to required setting. Press OK. INT call Only allows internal calls. Blocks all outgoing calls. Barred no. Blocks the numbers you select, see below. Setting barred numbers Enter the sequence of digits for the type of call to be barred. Example: select 00 to block international calls. Three different bars of up to eight digits each may be used. 1. Access Call Barring according to description on previous page. 2. Scroll to selected handset. Press OK. 3. Scroll to Barring Number. Press OK. 4. Scroll to selected entry. Press OK. 5. Enter required digits (max 8). Press OK. 6. Activate the Barred no. setting according to description on top of page. Net. Provider To choose a certain service provider, one would usually dial a prefix code before the actual phone number. -
Page 16: Expanded System (+1)
INT calls 1. Press Menu. 2. Scroll to INT Call. Press OK. 3. Press All or enter the handset number for the handset you wish to call. A tone will be heard if an external call comes in while an internal call is in progress. Answer the external call by pressing Accept. Conference/Transferring calls between handsets 1. While an external call is connected on line. 2. Initiate an internal call as described above. 3. Press to transfer the call or press Conf for conference. Specific absorption rate (SAR) This device meets approved international safety requirements for exposure to radio waves. This telephone measures 0.1 W/kg (measured over 10g tissue). The max. limit according to WHO is 2W/kg (measured over 10g tissue). Declaration of conformity Doro hereby declares that the Doro 760X conforms to the essential requirements and other relevant regulations contained in the Directives 1999/5/EC and 2002/95/EC. A copy of the manufacturers’ declaration is available at www.doro.com/dofc... -
Page 17: Troubleshooting
Test the equipment on a known working line (e.g. at a neighbour’s). If the product works then the fault is with your telephone line. Please inform your local telephone company. No number shown when ringing This function requires a subscription from your service provider. A switchboard cannot usually pass on incoming numbers. Warning signal while talking/Cannot connect The batteries may be running low (recharge the hand unit). The hand unit may be (nearly) out of range. Move closer to a base unit. Telephone does not work Check that the adapter and telephone cord are connected to the base unit and to their respective wall sockets. Check that you have selected Tone Dial, see System Settings/Dial. Check the charge status of the handset batteries. The telephone continues to ring The telephone’s ring signals do not follow the line signal, which means that the signal may continue for up to 10 seconds after answering a call. SMS does not work In order for this feature to function, you must subscribe to the SMS service from your network provider. Check that the correct telephone number is stored for each service. If the telephone still does not work, contact the place of purchase. Don’t forget the receipt or copy of the invoice. If you cannot resolve the fault using the faultfinder section, technical support is available by email on: tech@doro-uk.com Further contact details are available on our website: www.doro-uk.com Guarantee This product is guaranteed for a period of 12 months from the date of purchase. In the unlikely event of a fault occurring during this period, please return the item with a copy of the purchase receipt to your place of purchase. Proof of purchase is required for any service or support required during the guarantee period. This guarantee shall not apply to a fault caused by an accident or a similar incident or damage, liquid ingress, negligence, abnormal usage, non-maintenance or any other circumstances on the user’s part. Furthermore, this guarantee shall not apply to a fault caused by a thunderstorm or any other voltage fluctuations. (As a matter of precaution, we recommend disconnecting the telephone during a thunderstorm.) This guarantee does not in any way affect your statutory rights. Batteries are consumables and are not included in any guarantee. This guarantee does not apply if other batteries than DORO original batteries have been used. -
Page 18: Australia And New Zealand
Should you experience difficulties with the product, please contact us for assistance. If the product is then found to be faulty you will be asked to return it directly to us with a copy of the purchase receipt. This guarantee shall not apply to a fault caused by an accident or a similar incident or damage, liquid ingress negligence, abnormal usage, not reasonably maintained or any other circumstances on the purchaser’s part. Furthermore, this guarantee shall not apply to a fault caused by a thunderstorm or lightning, excessive or any other voltage fluctuations or faults on the telephone line. (As a matter of precaution, we recommend disconnecting the telephone during a thunderstorm). This guarantee does not affect your statutory rights. AUSTRALIA NEW ZEALAND DORO Australia Pty Ltd Atlas Gentech (NZ) Limited PO Box 6760 Private Bag 14927 Baulkham Hills BC NSW 2153 Panmure Australia Auckland New Zealand Consumer Support Consumer Support... - Page 19 English REN (RN for New Zealand) The REN (Ringer Equivalence Number) or (RN) is of significance only if you wish to connect more than 1 telephone to your telephone line. A standard telephone line has a maximum REN capacity of 3 (RN of 5). It is possible to connect 3 devices with a REN of 1 (RN of 1) with no degradation to the product’s performance. Exceeding this limit may cause the volume of the ringer in any phone to decrease or not ring at all. ALL PRODUCTS The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has accepted that the item complies with the minimum conditions for connection to its network. It indicates no endorsement of the product by Telecom, nor does it provide any sort of warranty. Above all, it provides no assurance that any item will work correctly in all respects with another item of Telepermitted equipment of a different make or model, nor does it imply that any product is compatible with all of Telecom’s network services. This equipment shall not be set to make automatic calls to the Telecom “111“ Emergency Service. This equipment may not provide for the effective hand-over of a call to another device connected to the same line. This equipment should not be used under any circumstances that may constitute a nuisance to other Telecom Customers. CND PRODUCTS If a charge for local calls is unacceptable, the “DIAL’’ button should NOT be used for local calls. Only the 7 digits of the local number should be dialled from your telephone. DO NOT dial the area code digit or the “0’’ prefix.
- Page 20 English Version 1.0...
