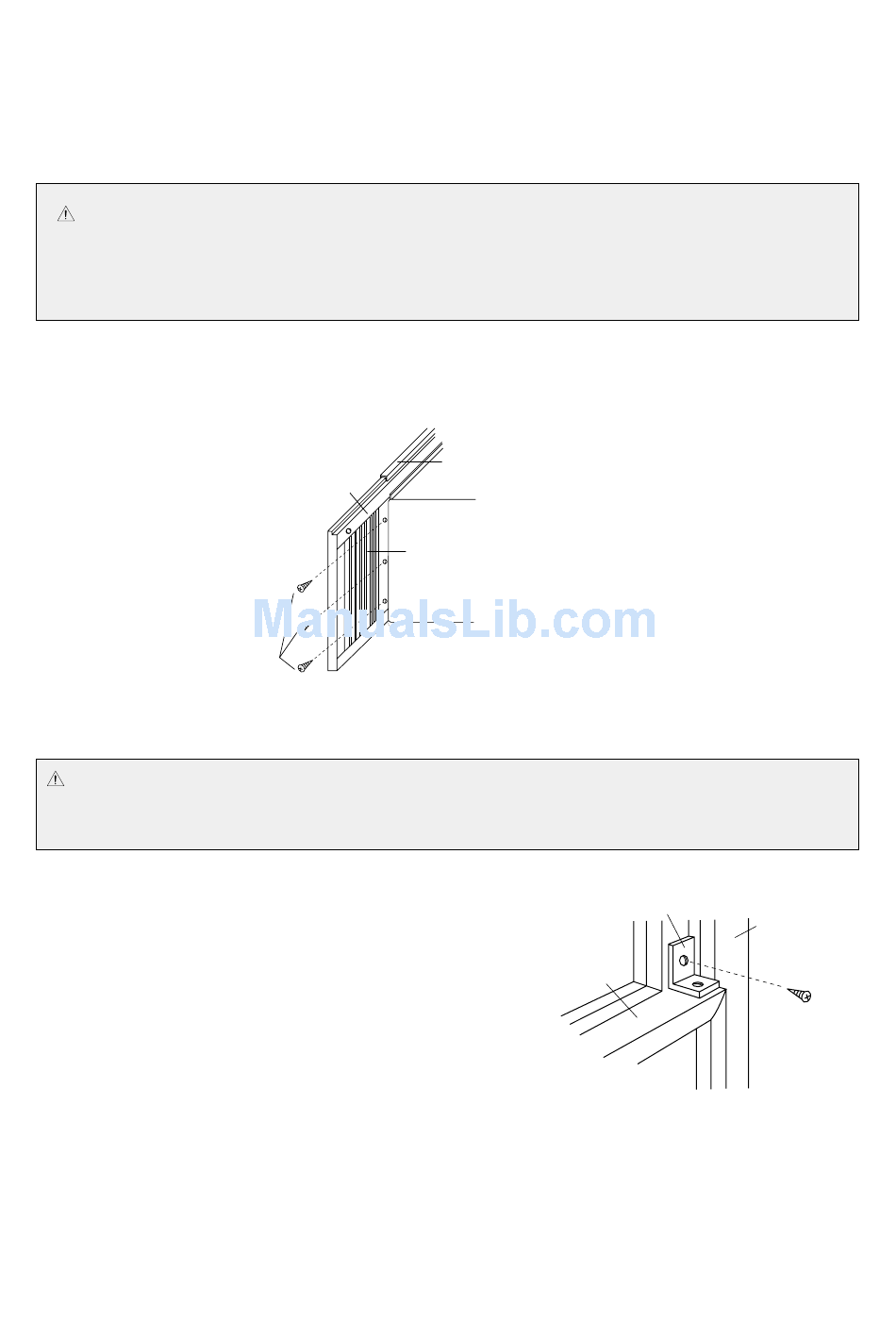

• Step 3 - Placing Unit in Window
CAUTION
1. The unit is heavy. To avoid injury or accident, it is strongly recommended that you have additional
help when lifting the unit.
2. Personal injury or property damage may result if unit falls from window.
1. Insert Window Kit Frame into the upper and bottom guides of the unit.
2. Fasten window shutter in the window kit frame with Screws (Type D) in the left side and right side of the unit.
3. Open the window and place the unit in the center of the window sill.
• Step 4 - Install Sash Bracket
CAUTION
Do not drill into window frame until window has been inspected to make sure drilling or screw will
not damage any locking or lifting mechanism located the frame.
Fasten Sash Bracket with Screw (Type C) to top of indoor
window sash or directly into side of window sash or directly
into side of window frame.
This will prevent the raising of the window from the outside. If
you have a hard wood or metal window frame, a 1/8 inch pilot
hole may be needed in order to drive the screw.
WINDOW
KIT
FRAME
(bottom guides)
Screw
(Type D)
PLATE
WINDOW
TOP
(upper guides)
WINDOW
SHUTTER
WINDOW
SASH
6
SASH
BRACKET
WINDOW
FRAME
Screw (Type C)
